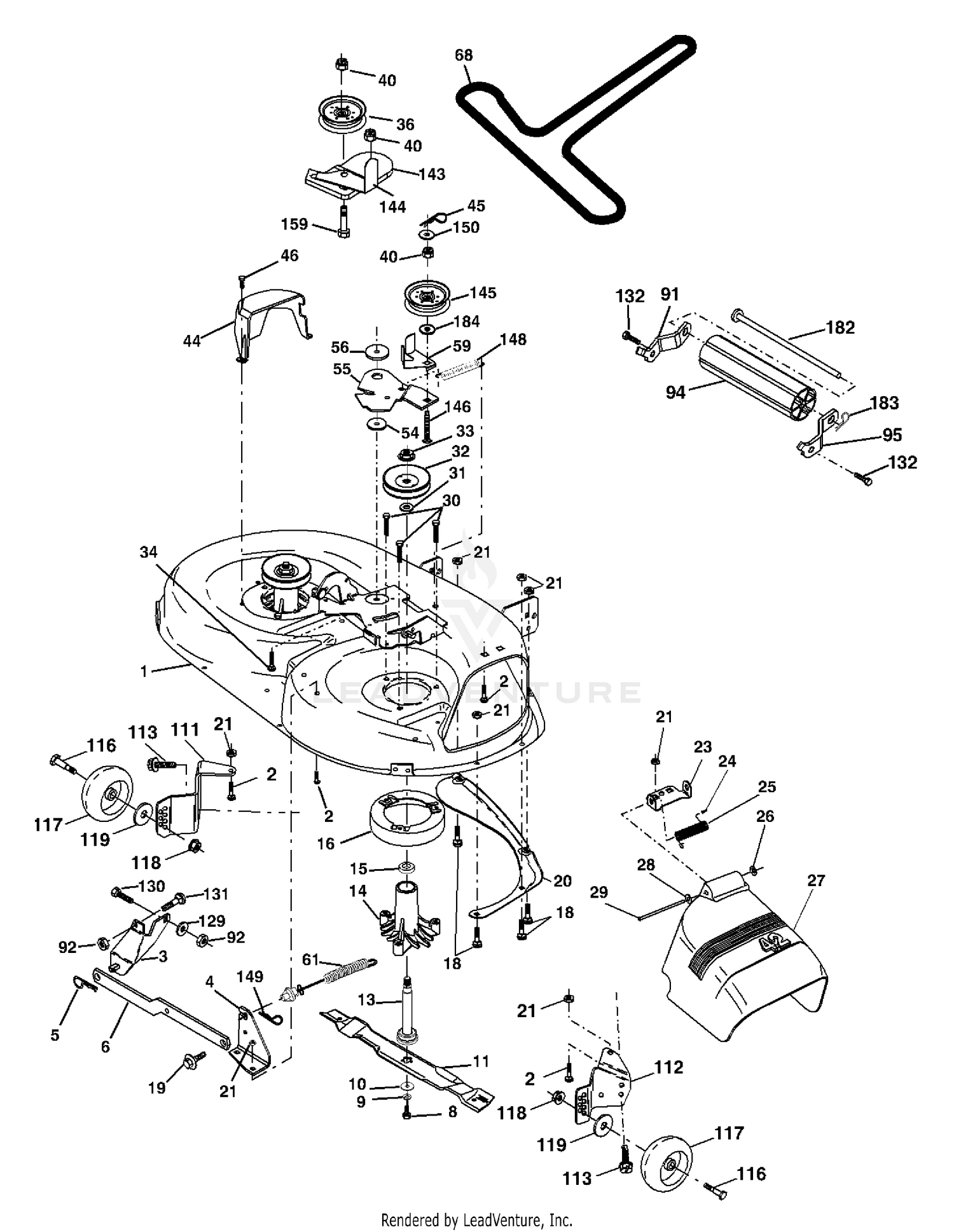

| Ref | Part Number | Description |
|---|
| 1 |
3-8787 |
Cross Beam (Incl Ref. 2) Price: Call Us |
| 1 |
532176027 |
DECK.SVC.42".BLACK This part replaces 532165892. Price: $329.99 |
| 2 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
3-8798 |
Mount Price: Call Us |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 4 |
3-8807 |
Extension Spring Price: Call Us |
| 4 |
532165460 |
BRACKET SWAY BAR 42" DECK Price: $11.99 |
| 5 |
3-8808 |
Spring Connector Price: Call Us |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
3-4636 |
CHAIN This part replaces 3-4976. Price: $22.51 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532178024. Price: $9.99 |
| 7 |
325-10 |
SCREW-HH Price: $1.82 |
| 8 |
3-8805 |
Spring Anchor Yoke Price: Call Us |
| 8 |
532850857 |
BLADE BOLT This part replaces 800850857. Price: $3.99 |
| 9 |
3-8812 |
SPACER-SPRING, ANCHOR Price: $15.47 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 11 |
3217-9 |
NUT-HH Price: $0.37 |
| 12 |
3218-5 |
NUT-JAM Price: $0.27 |
| 13 |
325-7 |
SCREW-HH Price: $1.53 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3-8848 |
Lift Pin Price: Call Us |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 18 |
3217-7 |
NUT-HEX Price: $0.28 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
3-8791 |
Arm Price: Call Us |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
3-8797 |
Arm Price: Call Us |
| 20 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 532159770. Price: $11.99 |
| 21 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3-8774 |
DISCONTINUED Price: Call Us |
| 23 |
3-8811 |
Link Price: Call Us |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532177563. Price: $4.99 |
| 24 |
323-12 |
SCREW-HH Price: $1.14 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
3-8766 |
DISCONTINUED Price: Call Us |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
5-1895 |
REEL DRIVE PAD This part replaces 3-8768. Price: $33.67 |
| 27 |
532130968 |
SHIELD.DEFLECTOR.MOWER.42".BLK This part replaces 532171859. Price: $34.99 |
| 28 |
5-0752 |
Frame W/Bushing Price: Call Us |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 29 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
3-8786 |
DISCONTINUED Price: Call Us |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
3-8664 |
WASHER-THRUST Price: $5.69 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
3-8783 |
DISCONTINUED Price: Call Us |
| 32 |
532173436 |
PULLEY MANDREL Price: $14.99 |
| 33 |
322-6 |
SCREW-HH Price: $0.45 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 34 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 35 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 36 |
3217-6 |
NUT-HEX Price: $1.19 |
| 36 |
597025001 |
CLG This part replaces 532173438. Price: $22.99 |
| 37 |
3-8803 |
Spacer Price: Call Us |
| 38 |
3-8804 |
Spacer Price: Call Us |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 44 |
532140088 |
GUARD MANDREL LH BLACK Price: $29.99 |
| 45 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 54 |
532178515 |
WASHER Price: $5.99 |
| 55 |
531166601 |
SERVICE KIT ARM ARM IDLER 42" This part replaces 532155046. Price: $14.99 |
| 56 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 61 |
532174882 |
SPRING EXT ELEC CLUTCH Price: $14.99 |
| 68 |
532174883 |
V-BELT PRIMARY 42" Price: $39.99 |
| 91 |
531151201 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532180532. Price: $4.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531150601 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532180533. Price: $4.99 |
| 111 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532179292. Price: $32.99 |
| 112 |
532181040 |
KIT.BRKT.GAUGE.WHEEL.42" This part replaces 532179293. Price: $32.99 |
| 113 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 129 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 130 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 131 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 132 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 143 |
529844301 |
SERVICE KIT BRACKET This part replaces 532157109. Price: $7.99 |
| 144 |
532173441 |
KEEPER BELT 42" CLUTCH Price: $6.99 |
| 145 |
532173437 |
PULLEY.IDLER.FLAT.PLATED Price: $24.99 |
| 146 |
532173443 |
BOLT CARRIAGE IDLER Price: $4.99 |
| 148 |
532169022 |
IDLER RETURN SPRING Price: $4.99 |
| 149 |
532165898 |
SPRING.RETAINER.YELLOW.ZINC Price: $3.99 |
| 150 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 159 |
596987501 |
Bolts This part replaces 872140614. Price: $3.99 |
| 182 |
532179126 |
ROD ROLLER NOSE STANDARD Price: $7.99 |
| 183 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 184 |
596134901 |
GSPH This part replaces 819131410. Price: $2.99 |
