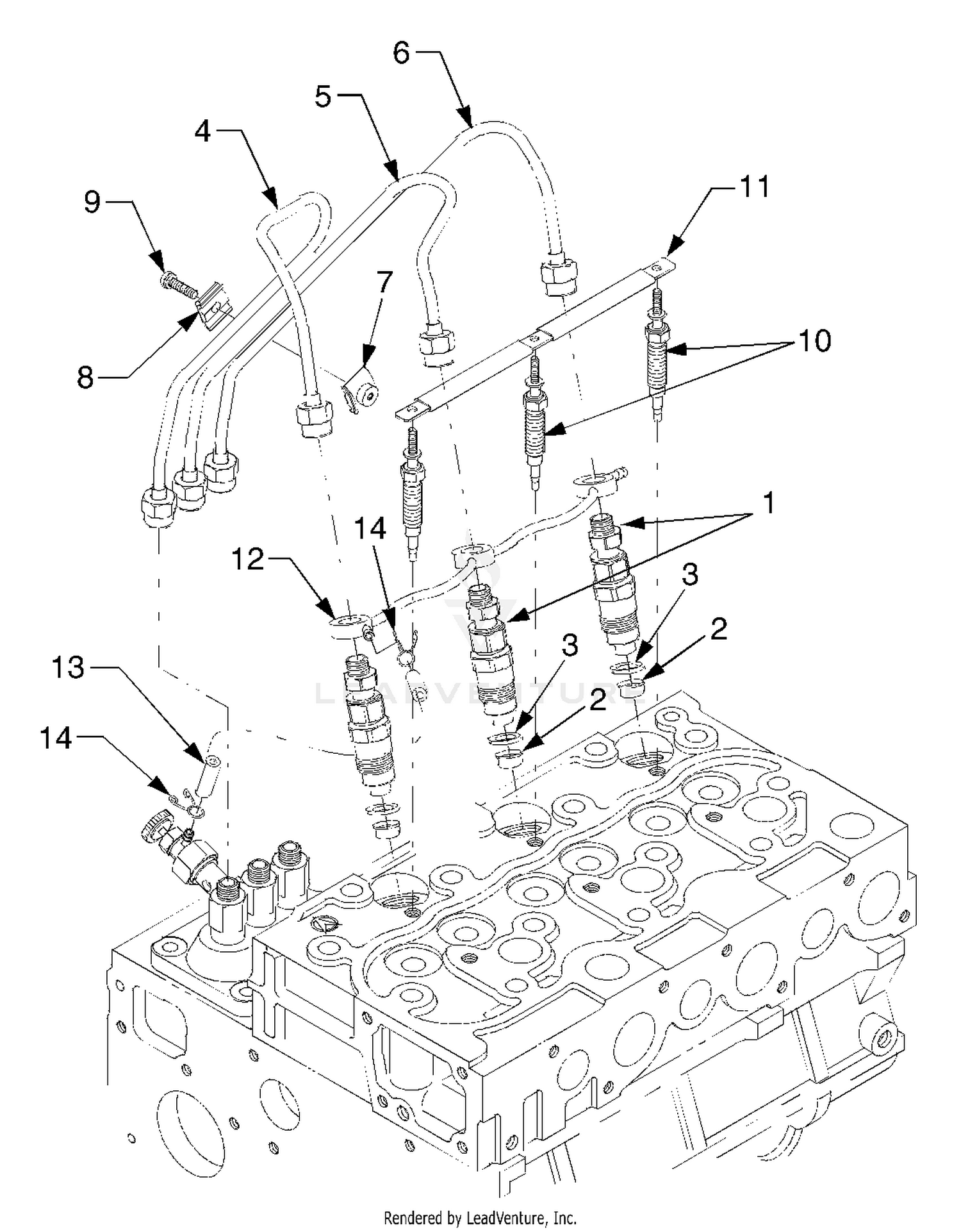

Injection Nozzles
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 67-3770 | DISCONTINUED Price: Call Us |
| 1 | DD-E6300-53005 | NOZZLE ASM-INJECTION This part replaces DD-E6300-53004. Price: $271.15 |
| 2 | 67-3760 | LOCK PLATE Price: $21.29 |
| 2 | DD-E6300-53651 | SEAL-INJECTOR Not Available Price: |
| 3 | 67-3740 | NIPPLE Price: $62.56 |
| 3 | DD-E6300-53621 | Gasket Price: $3.21 |
| 4 | 67-3480 | O-RING Price: $2.47 |
| 4 | DD-E5610-53714 | PIPE-INJECTION 1 Not Available Price: |
| 5 | 67-3490 | SPRING Price: $5.86 |
| 5 | DD-E5610-53723 | PIPE-INJECTION 2 Not Available Price: |
| 6 | 93-3465 | GASKET-DELIVERY V. This part replaces 42-8240. Price: $8.09 |
| 6 | DD-E5610-53734 | PIPE-INJECTION 3 Not Available Price: |
| 7 | 67-3500 | SUB-ASSEMBLY VALVE Price: $99.95 |
| 7 | DD-15121-53852 | CLAMP INJECT LINE Not Available Price: |
| 8 | 75-4970 | ELEMENT - SUB-ASSY Price: $224.06 |
| 8 | DD-T4815-67371 | CLAMP-FUEL INJ LIN Not Available Price: |
| 9 | 67-3460 | SUB-ASM PUMP HOUSING Price: $618.09 |
| 9 | DD-03024-50520 | SCREW Not Available Price: |
| 10 | 67-3520 | SUB-ASSEMBLY SLEEVE Price: $47.39 |
| 10 | DD-E6303-65511 | GLOW PLUG This part replaces DD-E6301-65512. Price: $46.58 |
| 11 | 530403257 | LEAD WIRE ASSY Price: $4.99 |
| 11 | 67-3530 | SEAT Price: $4.36 |
| 11 | DD-E5800-65562 | CORD - GLOW PLUG Not Available Price: |
| 12 | 530015896 | SCREW Price: $4.99 |
| 12 | 67-3540 | SPRING Price: $12.47 |
| 12 | DD-E5800-42501 | PIPE ASSEMBLY-OVERFLOW Not Available Price: |
| 13 | 503717901 | SWITCH ON/OFF Price: $12.99 |
| 13 | 67-3550 | DISCONTINUED Price: Call Us |
| 13 | DD-09661-40300 | FUEL TUBE Not Available Price: |
| 14 | 67-3680 | DISCONTINUED Price: Call Us |
| 15 | 530015127 | WASHER-FLYWHEEL Price: $3.99 |
| 15 | 67-3700 | DISCONTINUED Price: Call Us |
| 16 | 530016071 | NUT Price: $3.99 |
| 16 | 67-3810 | PIN Price: $4.69 |
| 17 | 530023817 | SPRING STR DOG Price: $3.99 |
| 17 | 67-3790 | DISCONTINUED Price: Call Us |
| 18 | 530015895 | SCREW,IGN MOD 36/41 Price: $2.99 |
| 18 | 67-3800 | BRACKET Price: $27.34 |
| 19 | 67-3780 | RACK ASSEMBLY Price: $154.27 |
| 20 | 70-3910 | WASHER This part replaces 67-3750. Price: $3.15 |
| 21 | 67-3740 | NIPPLE Price: $62.56 |
| 22 | 67-3730 | DISCONTINUED Price: Call Us |
| 23 | 67-3720 | DISCONTINUED Price: Call Us |
| 24 | 67-3710 | AIR BLEED SCREW Price: $6.38 |
| 25 | 67-3970 | NUT Price: $28.82 |
| 25 | 75-5000 | BODY SUB-ASSY Price: $147.67 |
| 26 | 67-3980 | GASKET Price: $3.19 |
| 27 | 67-3960 | NOZZLE ASSEMBLY Price: $167.76 |
| 28 | 67-3950 | PIECE Price: $19.92 |
| 29 | 93-3502 | PIN-PRESSURE This part replaces 67-3940. Price: $3.22 |
| 30 | 67-3930 | SPRING Price: $12.66 |
| 31 | 67-3870 | WASHER 4.45 Price: $4.40 |
| 31 | 93-3491 | WASHER-T=1.25 This part replaces 67-3830. Price: $8.80 |
