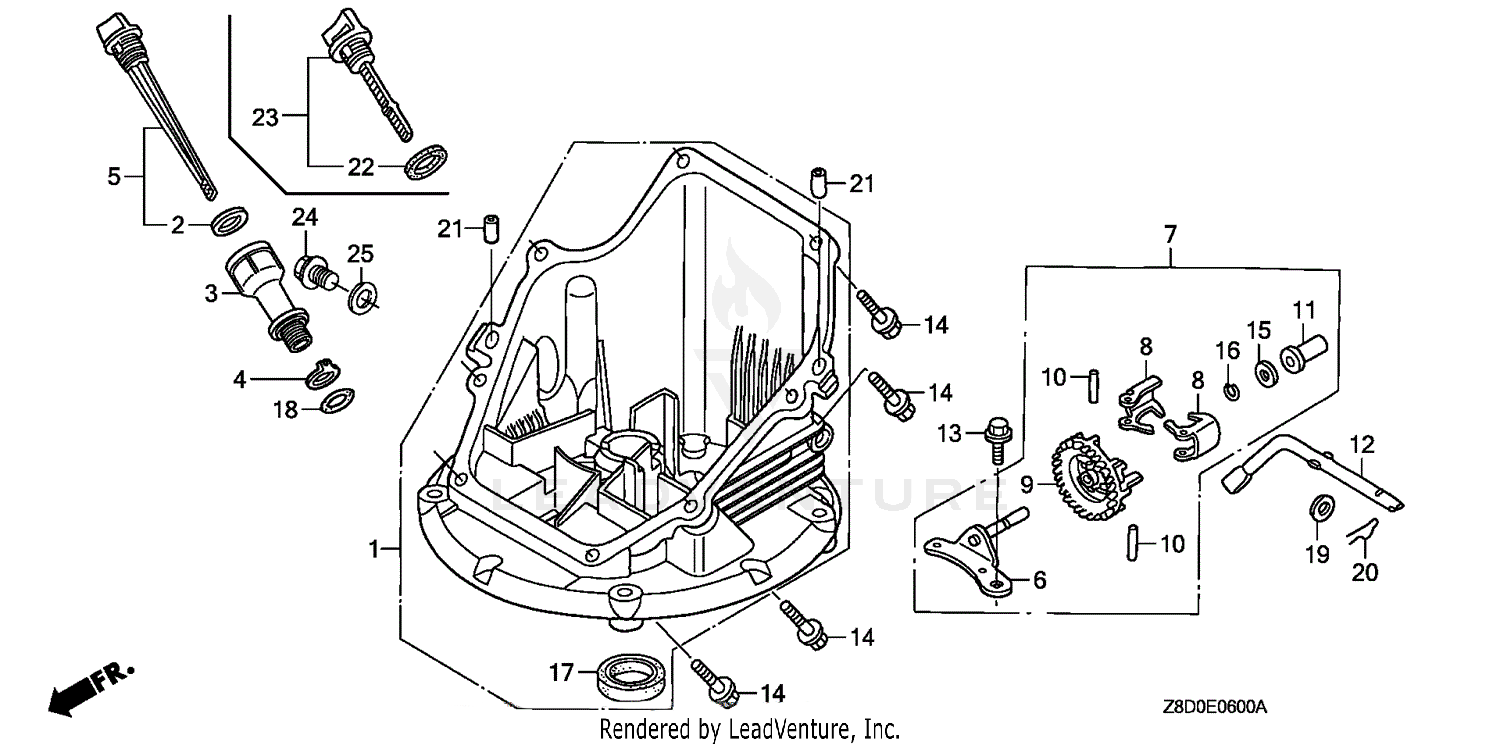

Oil Pan
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11300-ZM0-811 | PAN ASSEMBLY-OIL Not Available Price: |
| 2 | 15625-ZE6-000 | GASKET-OIL FILL Not Available Price: |
| 3 | 15631-ZM0-000 | OIL FILLER TUBE Not Available Price: |
| 4 | 15639-ZM0-000 | WASHER-FILLER TUBE Not Available Price: |
| 5 | 15650-ZM0-801 | OIL DIPSTICK FILL Price: $11.03 |
| 6 | 16508-ZM0-010 | GOVERNOR SHAFT Not Available Price: |
| 7 | 16510-Z8B-000 | GOVERNOR Price: $8.67 |
| 8 | 16511-ZL8-000 | GOVERNOR WEIGHT Not Available Price: |
| 9 | 16512-ZM0-000 | GOVERNOR WEIGHT HOLDER Not Available Price: |
| 10 | 16513-ZE1-000 | PIN-GOVERNOR WEIGH Not Available Price: |
| 11 | 16531-ZE1-000 | GOVERNOR SLIDER Price: $5.89 |
| 12 | 16541-Z8B-000 | GOVERNOR ARM SHAFT Not Available Price: |
| 13 | 90014-952-000 | FLANGE BOLT 6X Price: $4.95 |
| 14 | 90121-952-000 | FLANGE BOLT 6X Price: $3.61 |
| 15 | 90451-ZE1-000 | THRUST WASHER 6MM Price: $2.83 |
| 16 | 90602-ZE1-000 | CLIP-GOV HOLDER Price: $3.11 |
| 17 | 91202-ZL8-003 | OIL SEAL Price: $13.02 |
| 18 | 91356-MA6-005 | O-RING 14.8X2 Not Available Price: |
| 19 | 94101-06800 | WASHER Price: $3.46 |
| 20 | 94251-08000 | PIN-LOCK Price: $3.22 |
