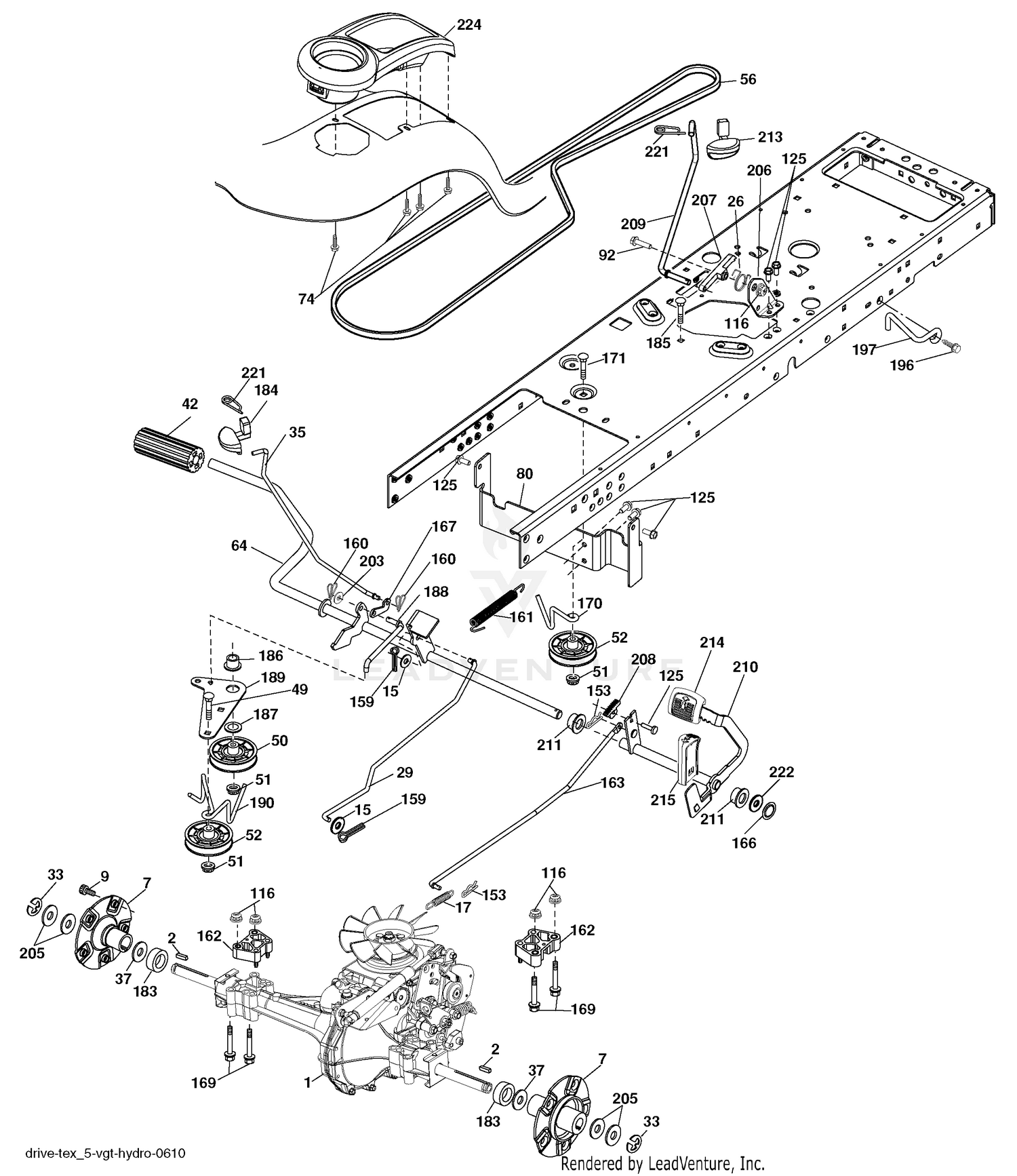

| Ref | Part Number | Description |
|---|
| 1 |
106-1094 |
KIT - RING & PINION This part replaces 100-2555. Price: $1,064.67 |
| 2 |
186211 |
Key 1.87 x 2.500 Price: Call Us |
| 2 |
99-7570 |
BEARING-ROLLER, TAPER Price: $61.91 |
| 3 |
95-7534 |
CASE-BEARING Price: $176.21 |
| 4 |
106-1065 |
O-RING This part replaces 99-7571. Price: $9.02 |
| 5 |
99-7572 |
COLLAR-SEAL, OIL Price: $21.01 |
| 6 |
106-1066 |
O-RING This part replaces 99-7573. Price: $5.71 |
| 7 |
199844 |
Hub Asm. Wheel Price: Call Us |
| 7 |
99-7574 |
SEAL-OIL Price: $4.42 |
| 8 |
99-7559 |
WASHER-LOCK Price: $9.82 |
| 9 |
140080 |
Bolt Hub Wheel Price: Call Us |
| 9 |
99-7560 |
NUT-LOCK Price: $27.76 |
| 10 |
99-7550 |
SHIM 0.1 Price: $4.34 |
| 10 |
99-7551 |
SHIM 0.2 Price: $4.55 |
| 11 |
95-7533 |
CASE-GEAR Price: $289.33 |
| 12 |
99-7575 |
BOLT Price: $4.00 |
| 13 |
98-7735 |
STUD This part replaces 100-2556. Price: $1.36 |
| 14 |
99-7527 |
WASHER-SPRING Price: $1.02 |
| 15 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 15 |
99-7526 |
NUT Price: $1.29 |
| 16 |
95-7541 |
PLATE-COVER Price: $89.04 |
| 17 |
106-1140 |
GASKET This part replaces 95-7540. Price: $17.66 |
| 17 |
197296 |
Spring, Brake Price: Call Us |
| 26 |
199679 |
Spring Return Cruise Price: Call Us |
| 29 |
199467 |
Rod, Brake Price: Call Us |
| 33 |
12000001 |
Ring E #5133-75 Price: Call Us |
| 35 |
197275 |
Rod, Brake, Park Price: Call Us |
| 37 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 42 |
123533X |
Cover, Foot Pedal Price: Call Us |
| 49 |
72110614 |
Bolt Price: Call Us |
| 50 |
194327 |
Pulley Idler Flat Price: Call Us |
| 51 |
73900600 |
Lock Nut 3/8-16 Price: Call Us |
| 52 |
194326 |
Idler V-Groove 910" Offset Price: Call Us |
| 56 |
140218 |
V-Belt, Drive Price: Call Us |
| 64 |
197865 |
Shaft Asm. Pedal Brake Control Price: Call Us |
| 74 |
142432 |
Screw 1/4 x 1/2 Price: Call Us |
| 80 |
400507 |
Bracket Strp. Trq. Price: Call Us |
| 92 |
74760520 |
Bolt Fin Hex 5/16-18 unc x 1.25 Price: Call Us |
| 116 |
73900500 |
Nut Lock Hex Flange 5/16-18 Price: Call Us |
| 125 |
17000512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 153 |
4497H |
Retainer Spring 1" Price: Call Us |
| 159 |
76020412 |
Pin Cotter 1/8 x 3/4 Price: Call Us |
| 160 |
169484 |
Retainer Clip Price: Call Us |
| 161 |
195403 |
Spring, Return, Clutch Price: Call Us |
| 162 |
195785 |
Spacer Trans. Price: Call Us |
| 163 |
199000 |
Rod Control Cruise Price: Call Us |
| 166 |
197290 |
Nut Push .625 Price: Call Us |
| 167 |
196211 |
Latch Brake Parking Price: Call Us |
| 169 |
74490560 |
Bolt Hex Flngd. 5/16-18 x 3.75 Price: Call Us |
| 170 |
194322 |
Keeper Belt Centerspan Price: Call Us |
| 171 |
72110616 |
Bolt Price: Call Us |
| 183 |
400424 |
Spacer Split 800 x 350. Price: Call Us |
| 184 |
195361X505 |
Handle Parking Brake Price: Call Us |
| 185 |
72110620 |
Bolt Price: Call Us |
| 186 |
194321 |
Spacer Retainer Price: Call Us |
| 187 |
19133210 |
Washer Price: Call Us |
| 188 |
194323 |
Link Clutch Ground Drive Price: Call Us |
| 189 |
194317 |
Bellcrank Ground Drive Price: Call Us |
| 190 |
194318 |
Keeper Bellcrank Ground Drive Price: Call Us |
| 196 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 197 |
199769 |
Bracket Clutch Anti-Rotation Price: Call Us |
| 203 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 205 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 206 |
197867 |
Bracket Mount Latch Cruise Price: Call Us |
| 207 |
197868 |
Latch Control Cruise Price: Call Us |
| 208 |
197869 |
Gear Sector Control Cruise Price: Call Us |
| 209 |
199466 |
Rod Control Cruise Price: Call Us |
| 210 |
197860 |
Rocker Asm. Pedal Control Price: Call Us |
| 211 |
120183X |
Bearing Nylon Blk .629 Price: Call Us |
| 213 |
195352X428 |
Knob Control Cruise Price: Call Us |
| 214 |
197302 |
X428 Pedal Forward Price: Call Us 197302 X428 |
| 215 |
197301 |
X428 Pedal Reverse Price: Call Us 197301 X428 |
| 221 |
403187 |
Retainer Spring Clip Handle Price: Call Us |
| 222 |
19212010 |
Washer 21/32 x 1-1/4 x 10 Ga. Price: Call Us |
