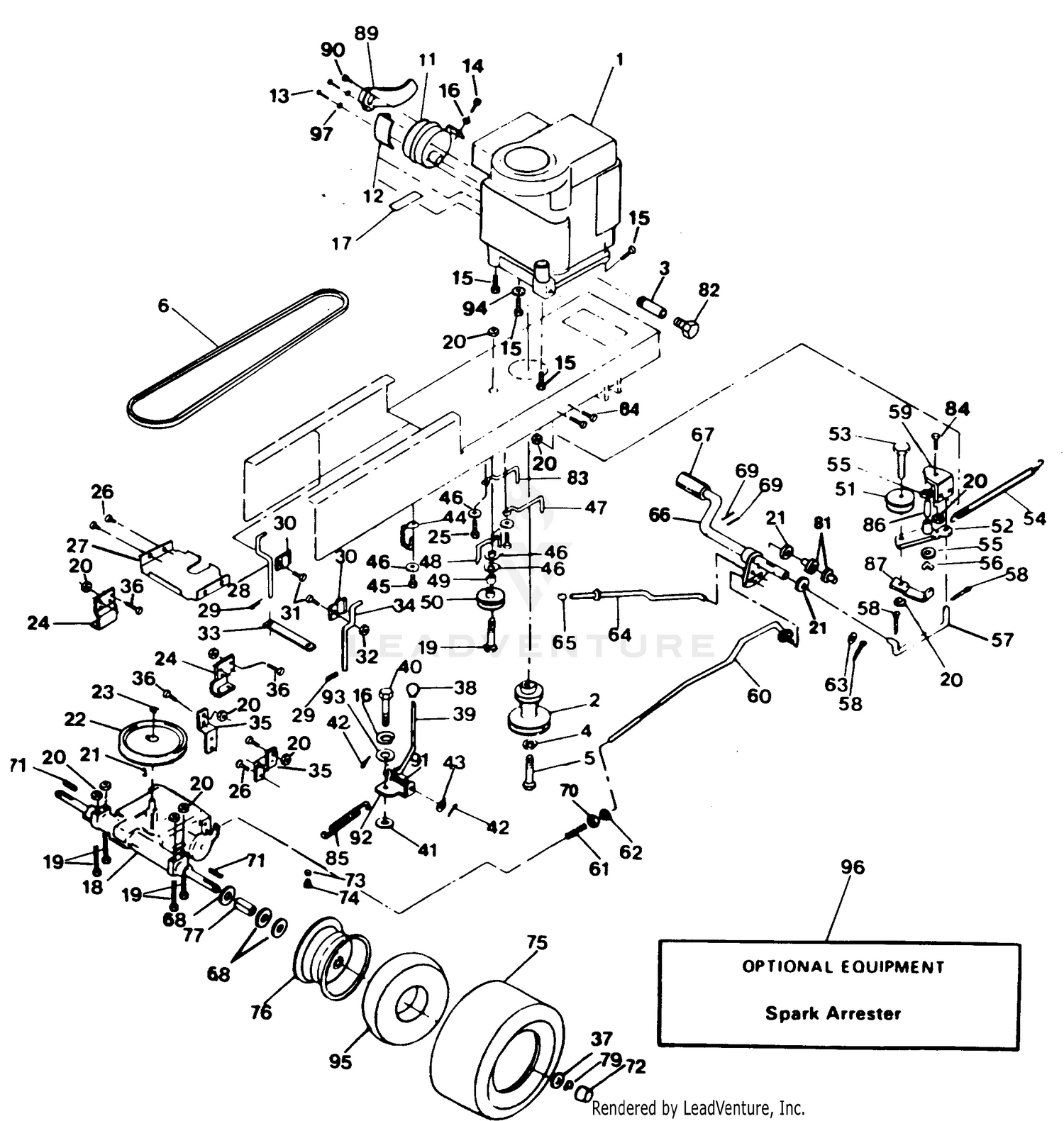

| Ref | Part Number | Description |
|---|
| 1 |
27-3710 |
DIPSTICK Price: $24.62 |
| 2 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
532136004 |
KIT/ENGINE PULLEY This part replaces 532105731. Price: $74.99 |
| 3 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 3 |
532123995 |
Oil Drain Pipe (AYP part number) Price: $3.33 |
| 4 |
21-8280 |
DISCONTINUED Price: Call Us |
| 4 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 5 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 5 |
871130720 |
Bolt, Fin. Hex 7/16-20 UNF x 1 1/4 Gr. 8 (AYP part number) This part replaces 874770720. Price: Call Us |
| 6 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 6 |
532125907 |
Drive V-Belt (AYP part number) Price: $27.99 |
| 7 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 8 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 9 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 10 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 11 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 11 |
532101273 |
Muffler (AYP part number) Price: $3.33 |
| 12 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 12 |
532101159 |
Heat Shield (AYP part number) Price: $3.33 |
| 13 |
874780556 |
Hex Bolt (AYP part number) Price: $3.33 |
| 14 |
21-8080 |
DISCONTINUED Price: Call Us |
| 14 |
539990071 |
HCS 1/4-20. This part replaces 874780408. Price: $1.99 |
| 15 |
874760620 |
BOLT This part replaces 817490620. Price: $3.99 |
| 15 |
92-1773 |
SCREW-HHF This part replaces 324-23. Price: $3.05 |
| 16 |
12-5450 |
SCREW Price: $7.99 |
| 16 |
810040400 |
Lock Washer 1/4 (AYP part number) Price: $3.99 |
| 17 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 17 |
532120601 |
Engine Maintenance Decal (AYP part number) Price: $7.00 |
| 18 |
86-7230 |
GEAR-INPUT, TRANSMISSION This part replaces 21-8150. Price: $610.12 |
| 19 |
21-7820 |
DISCONTINUED Price: Call Us |
| 19 |
874760644 |
Hex Bolt 3/8-16 x 2-3/4 (AYP part number) Price: $3.99 |
| 20 |
21-8030 |
DISCONTINUED Price: Call Us |
| 20 |
873680600 |
Crownlock Nut Price: $1.99 |
| 21 |
21-8040 |
DISCONTINUED Price: Call Us |
| 21 |
819211616 |
Washer (AYP part number) Price: $3.99 |
| 22 |
21-8050 |
BRG SHIM .010 Price: $6.29 |
| 22 |
532123666 |
Transaxle Pulley (AYP part number) Price: $22.99 |
| 23 |
21-8060 |
DISCONTINUED Price: Call Us |
| 23 |
812000028 |
Retainer Ring (AYP part number) Price: $4.99 |
| 24 |
27-6840 |
DISCONTINUED Price: Call Us |
| 24 |
532109167 |
Transaxle Bracket (AYP part number) Price: $2.86 |
| 25 |
874780616 |
BOLT This part replaces 874760616. Price: $3.99 |
| 25 |
99-5691 |
SCREW W/WASHER This part replaces 28-0660. Price: $7.18 |
| 26 |
254-90 |
BEARING-CUP Price: $11.29 |
| 26 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 27 |
21-8010 |
BRG CONE Price: $30.15 |
| 27 |
532108171 |
Battery Support (AYP part number) Price: $3.33 |
| 28 |
32151-83 |
RING-SNAP This part replaces 32120-32. Price: $0.34 |
| 28 |
532123662 |
L.H. Belt Keeper (AYP part number) Price: $20.17 |
| 29 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 29 |
532004921 |
Spring Retainer (AYP part number) Price: $3.99 |
| 30 |
21-7870 |
DISCONTINUED Price: Call Us |
| 30 |
532106190 |
Clamp (AYP part number) Price: $4.62 |
| 31 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 31 |
539976934 |
HCS 5/16C X 3/4 This part replaces 874760512. Price: $1.99 |
| 32 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 33 |
21-8070 |
DISCONTINUED Price: Call Us |
| 33 |
532123770 |
Locater Strap (AYP part number) Price: $4.62 |
| 34 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 34 |
532123663 |
R.H. Belt Keeper (AYP part number) Price: $20.17 |
| 35 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 35 |
532121520 |
Transaxle Torque Strap (AYP part number) Price: $3.99 |
| 36 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 36 |
874760612 |
Hex Bolt (AYP part number) Price: $1.99 |
| 37 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 37 |
532121748 |
Washer (AYP part number) Price: $1.99 |
| 38 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
532106933 |
Shift Knob (AYP part number) Price: $3.99 |
| 39 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 39 |
532124461 |
Shift Rod (AYP part number) Price: $8.59 |
| 40 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 40 |
871040412 |
Hex Bolt (AYP part number) Price: $3.99 |
| 41 |
532105701 |
Shift Plate Washer (AYP part number) Price: $3.99 |
| 42 |
72-9420 |
VENT This part replaces 21-8230. Price: $6.85 |
| 42 |
876020416 |
Cotter Pin 1/8 x 1 (AYP part number) Price: $3.99 |
| 43 |
2811-9 |
FITTING-ELBOW-90 Price: $15.86 |
| 43 |
819151216 |
Washer (AYP part number) Price: Call Us |
| 44 |
289-38 |
PIPE NIPPLE Price: $21.73 |
| 44 |
532136715 |
Keeper Belt Chassis Span Ctr (AYP part number) This part replaces 532104777. Price: $6.79 |
| 45 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 46 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 47 |
532105730 |
R.H. Engine Belt Keeper (AYP part number) Price: $2.99 |
| 48 |
532109070 |
Belt Retainer (AYP part number) Price: $3.99 |
| 49 |
532124965 |
SPACER T This part replaces 532004470. Price: $3.99 |
| 50 |
532123674 |
Flat Idler (AYP part number) Price: $17.99 |
| 51 |
532139245 |
Pulley, Idler V Groove (AYP part number) This part replaces 532123766. Price: $22.99 |
| 52 |
532123789 |
Idler Arm (AYP part number) Price: $13.07 |
| 53 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 874760624. Price: $3.99 |
| 54 |
532105709 |
Clutch Return Spring (AYP part number) Price: $7.99 |
| 55 |
532110812 |
Hardened Washer (AYP part number) Price: $3.10 |
| 56 |
812000039 |
Klip Ring (AYP part number) Price: $3.99 |
| 57 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 58 |
876020412 |
Cotter Pin (AYP part number) Price: $3.99 |
| 59 |
532123102 |
Clutch Bracket (AYP part number) Price: $11.99 |
| 60 |
532110437 |
Brake Rod (AYP part number) Price: $29.99 |
| 61 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 62 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 63 |
819131316 |
Washer (AYP part number) Price: $2.99 |
| 64 |
532128904 |
Rod Brake Parking LT (AYP part number) This part replaces 532105758. Price: $3.18 |
| 65 |
532071673 |
Plunger Cap (AYP part number) Price: $3.99 |
| 66 |
532122424 |
Foot Pedal Shaft (AYP part number) Price: $21.56 |
| 67 |
532008883 |
PEDAL COVER This part replaces 532124872. Price: $3.99 |
| 68 |
532121749 |
Washer (AYP part number) Price: $1.99 |
| 69 |
532001572 |
Roll Pin 3/16 x 1 (AYP part number) Price: $3.99 |
| 70 |
973800600 |
Washer Insert Locknut (AYP part number) Price: $3.33 |
| 71 |
532123583 |
SQUARE KEY This part replaces 532124928. Price: $2.99 |
| 72 |
532104757 |
Hub Cap (AYP part number) Price: $1.99 |
| 73 |
532059192 |
Valve Cap (AYP part number) Price: $3.99 |
| 74 |
532065139 |
Valve Stem (AYP part number) Price: $5.99 |
| 75 |
532123969 |
Rear Tire (AYP part number) Price: $3.33 |
| 76 |
532125122 |
RIM.ASM.8"REAR.YELLOW.SERVICE This part replaces 532124789. Price: $109.99 |
| 77 |
532109502 |
Spacer (AYP part number) Price: $3.99 |
| 79 |
812000001 |
E-Ring (AYP part number) Price: $2.99 |
| 81 |
532120183 |
Nylon Bearing (AYP part number) Price: $2.99 |
| 82 |
813030200 |
Oil Drain Plug (AYP part number) Price: $3.33 |
| 83 |
532121218 |
L.H. Engine Belt Keeper (AYP part number) Price: $2.86 |
| 84 |
872140606 |
Carriage Bolt 3/8-16 x 3/4 (AYP part number) Price: $3.99 |
| 85 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 86 |
532105706 |
Bearing (AYP part number) Price: $3.99 |
| 87 |
532120402 |
Belt Retainer (AYP part number) Price: $3.33 |
| 88 |
532108748 |
Oil Filler Cap & Dipstick Price: $3.33 |
| 89 |
532108767 |
Muffler Deflector (AYP part number) Price: $3.33 |
| 90 |
532161464 |
SCREW.HEX.WS.HD.8-18 X 7/8 This part replaces 817030808. Price: $3.99 |
| 91 |
532105700 |
Spring (AYP part number) Price: $4.60 |
| 92 |
532106919 |
Shift Plate (AYP part number) Price: $11.90 |
| 93 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 94 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 95 |
532007152 |
Tire Tube (Not furnished with tractor) (AYP part number) Price: $44.99 |
| 96 |
532121851 |
Spark Arrestor (AYP part number) Price: $26.83 |
