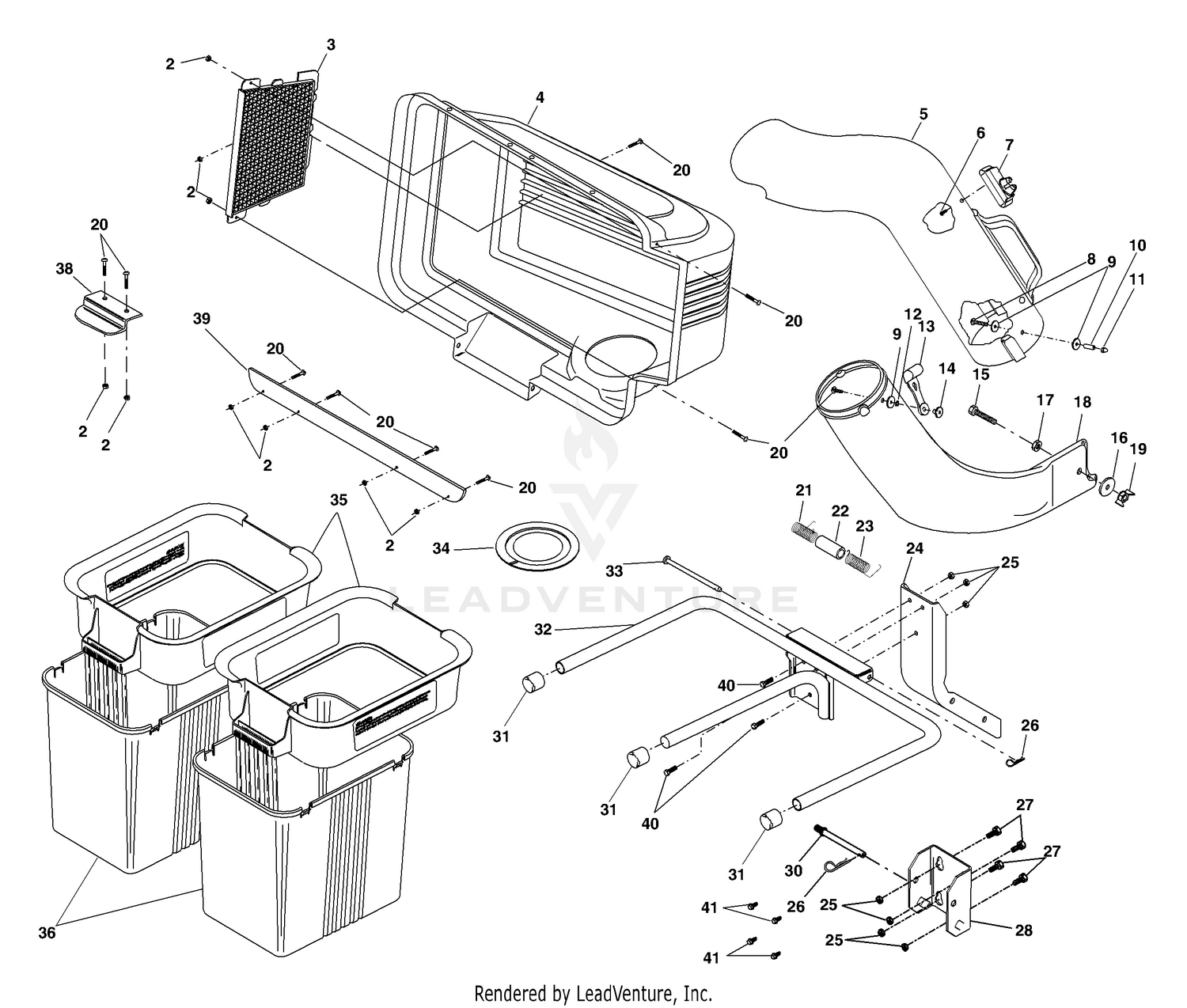

| Ref | Part Number | Description |
|---|
| 1 |
99-8320 |
BOLT Price: $0.94 |
| 2 |
532069180 |
Nut, Crownlock #10-24 Price: $2.69 |
| 2 |
99-8321 |
MANIFOLD-INLET Price: $243.74 |
| 3 |
532127533 |
Screen, Cover Price: $11.99 |
| 3 |
99-8322 |
BAND-PIPE Price: $19.99 |
| 4 |
99-8323 |
HOSE-INLET Price: $54.63 |
| 5 |
532139569 |
Chute, Upper Price: $70.99 |
| 5 |
99-8324 |
BAND-PIPE Price: $3.47 |
| 6 |
818021008 |
Screw, Special Price: $3.99 |
| 6 |
98-9665 |
NUT Price: $2.17 |
| 7 |
532140572 |
Dump Bag Indicator Price: $4.99 |
| 7 |
99-8326 |
DISCONTINUED Price: Call Us |
| 8 |
874981024 |
SCREW.PAN.HEAD This part replaces 532087175. Price: $5.99 |
| 8 |
99-8327 |
GASKET-MANIFOLD, EXHAUST Price: $19.14 |
| 9 |
819061216 |
Washer 3/16x3/4x16 Ga. Price: $2.69 |
| 9 |
98-9588 |
STUD Price: $1.87 |
| 10 |
532007206 |
Spacer, Split Price: $3.99 |
| 10 |
99-8329 |
GASKET-MANIFOLD, INTAKE Price: $21.36 |
| 11 |
539108086 |
NUT.#10-24 ACORN.ZD This part replaces 532060867. Price: $1.99 |
| 11 |
98-7568 |
BOLT Price: $0.84 |
| 12 |
810071000 |
Washer, lock Price: $2.99 |
| 13 |
532109808 |
Latch, Chute Price: $2.69 |
| 14 |
532002029 |
NUT.WELD.#10-24 This part replaces 532125004. Price: $2.69 |
| 15 |
874930620 |
Bolt, Hex Head 3/8-16 x 1-1/4 Price: $3.99 |
| 16 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131616. Price: $3.99 |
| 17 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 18 |
532131970 |
Chute, Lower Price: $72.99 |
| 19 |
532135651 |
Wingnut 3/8-16 Price: $3.99 |
| 20 |
871081010 |
Screw #10-24 x 5/8 Price: $3.49 |
| 21 |
532132796 |
Spring, Cover L.H. (black) Price: $2.99 |
| 22 |
532133235 |
Spacer, Cover Price: $3.99 |
| 23 |
532132983 |
Spring, Cover R.H. (gray) Price: $2.99 |
| 24 |
532180925 |
POST.SUPPORT.BAGGER.2BIN This part replaces 532126813. Price: $28.99 |
| 25 |
873800500 |
Locknut 5/16 x 18 Price: $2.69 |
| 26 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 27 |
539976934 |
HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99 |
| 28 |
532170053 |
Bracket, Mounting Price: $9.99 |
| 30 |
532131137 |
Pin, Support Post Price: $6.99 |
| 31 |
532174083 |
Plug, Tubing End Price: $3.99 |
| 32 |
532126919 |
Bagger, Frame Price: $59.99 |
| 33 |
532192786 |
Pin, Hinge This part replaces 532128600. Price: $7.99 |
| 34 |
532127534 |
Gasket, Cover Price: $8.99 |
| 35 |
532183286 |
Container, Top Price: $17.99 |
| 36 |
532129586 |
Container, Bottom Price: $62.99 |
| 38 |
532130895 |
Latch Handle, Cover Price: $3.99 |
| 39 |
532155042 |
Strip, Reinforcement Price: $11.99 |
| 40 |
872110506 |
Carriage Bolt 5/16-18 x 3/4 Price: $3.99 |
| 41 |
532170165 |
Shoulder Bolt Hex, Self Tapping Price: $2.99 |
