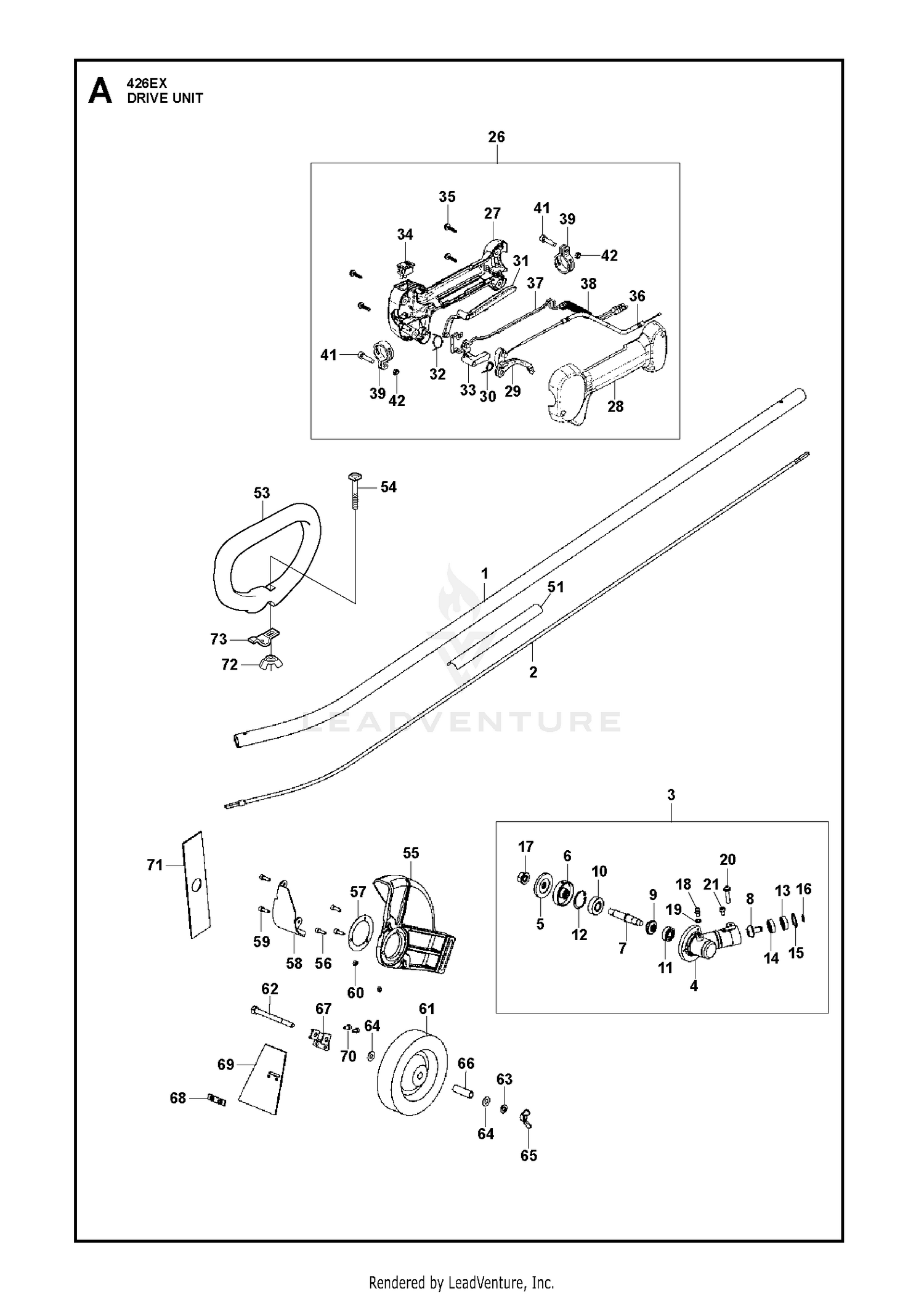

DRIVE
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 526058301 | PIPE COMP Price: $44.99 |
| 2 | 526058601 | FLEX SHAFT Price: $22.99 |
| 3 | 512556201 | GEARCASE Price: $129.99 |
| 4 | 512556001 | GEARCASE Price: $44.99 |
| 5 | 515537501 | HOLDER(B) Price: $6.99 |
| 6 | 515537401 | HOLDER(A) Price: $14.99 |
| 7 | 515537201 | SHAFT.GEAR Price: $34.99 |
| 8 | 512556101 | PINION Price: $37.99 |
| 9 | 515537301 | GEAR Price: $22.99 |
| 10 | 510569701 | BEARING*** Price: $7.99 |
| 11 | 515537001 | BEARING Price: $5.99 |
| 12 | 504121001 | RING Price: $2.99 |
| 13 | 505169301 | BEARING Price: $4.99 |
| 14 | 505169201 | BEARING Price: $5.99 |
| 15 | 505169401 | RP_RING Price: $2.99 |
| 16 | 521821801 | RING Price: $2.99 |
| 17 | 521804001 | NUT Price: $3.99 |
| 18 | 505171501 | FITTING Price: $4.99 |
| 19 | 505171601 | WASHER Price: $2.99 |
| 20 | 526059101 | BOLT Price: $5.99 |
| 21 | 505173901 | BOLT M5 X L10 This part replaces 505169901. Price: $3.99 |
| 26 | 575385102 | GRIP ASSEMBLY This part replaces 575385101. Price: $34.99 |
| 27 | 574390601 | BODY RIGHT Price: $54.99 |
| 28 | 574390701 | BODY LEFT Price: $54.99 |
| 29 | 575385201 | LEVER THROTTLE Price: $11.99 |
| 30 | 529259601 | SPRING, THROTTLE Price: $3.99 |
| 31 | 575385301 | LEVER SAFETY Price: $11.99 |
| 32 | 511591801 | SPRING This part replaces 574390801. Price: $2.99 |
| 33 | 529259201 | LEVER JOINT Price: $2.99 |
| 34 | 521851601 | SWITCH Price: $9.99 |
| 36 | 529257101 | CABLE-C Price: $9.99 |
| 37 | 529256101 | CORD - C Price: $5.99 |
| 38 | 521805501 | TUBE Price: $2.99 |
| 39 | 529259401 | BAND Price: $4.99 |
| 41 | 506689001 | BOLT TORX This part replaces 504114301. Price: $3.99 |
| 42 | 579000001 | NUT This part replaces 510911101. Price: $3.99 |
| 51 | 575385801 | NEEDS DESCRIPTION Price: Call Us |
| 53 | 537076801 | HANDLE, LOOP This part replaces 537076802. Price: $12.99 |
| 54 | 503219835 | SCREW Price: $3.99 |
| 55 | 505171702 | Guards This part replaces 505171701. Price: $74.99 |
| 56 | 505171801 | BOLT M5 X L16 ALLEN Price: $5.99 |
| 57 | 505171901 | PLATE Price: $5.99 |
| 58 | 526059401 | PROTECTOR Price: $7.99 |
| 59 | 505171801 | BOLT M5 X L16 ALLEN Price: $5.99 |
| 60 | 505172301 | NUT Price: $2.99 |
| 61 | 505172501 | WHEEL Price: $14.99 |
| 62 | 526059601 | BOLT Price: $6.99 |
| 63 | 505172901 | WASHER Price: $2.99 |
| 64 | 505173001 | WASHER Price: $3.99 |
| 65 | 527068601 | NUT Price: $12.99 |
| 66 | 505173301 | SLEEVE Price: $9.99 |
| 67 | 526059501 | BRACKET Price: $5.99 |
| 68 | 505173601 | PLATE Price: $3.99 |
| 69 | 505173701 | RUBBER Price: $12.99 |
| 70 | 505173901 | BOLT M5 X L10 This part replaces 505169901. Price: $3.99 |
| 71 | 505175301 | BLADE Price: $14.99 |
| 72 | 503222601 | WING NUT Price: $3.99 |
| 73 | 530038599 | CLAMP This part replaces 537042501. Price: $0.36 |
