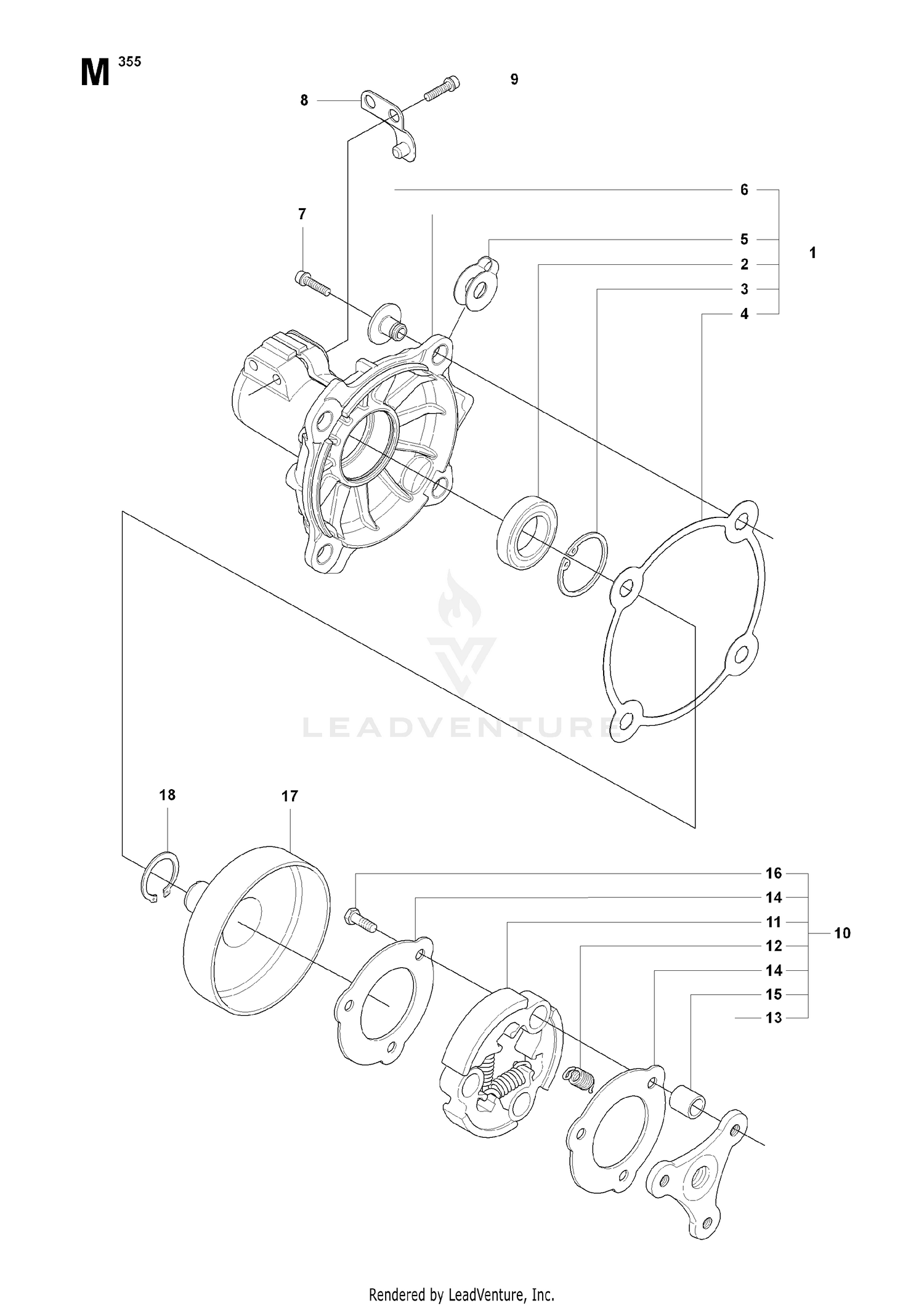

| Ref | Part Number | Description |
|---|
| 1 |
502493503 |
RP CLUTCH COVER ASSY This part replaces 502493502. Price: $229.00 |
| 1 |
86-8900 |
CRANKCASE ASM Price: $5,147.58 |
| 2 |
738220219 |
BALL BEARING 6202-2RS1 Price: $32.99 |
| 2 |
86-8890 |
SPACER-PULLEY Price: $14.40 |
| 3 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 3 |
735313310 |
RETAINING RING SGH 35 Price: $2.99 |
| 4 |
544908101 |
WASHER Price: $8.99 |
| 4 |
80-8360 |
PULLEY-IDLER, FLAT Price: $176.37 |
| 5 |
544093602 |
SPRING PLATE This part replaces 544093601. Price: $2.99 |
| 5 |
86-8870 |
PIVOT-IDLER Price: $97.77 |
| 6 |
3213-7 |
SCREW-HH Price: $5.12 |
| 6 |
544093502 |
SPACING SLEEVE This part replaces 544093501. Price: $6.99 |
| 7 |
323-12 |
SCREW-HH Price: $1.14 |
| 7 |
503200778 |
SCREW Price: $3.99 |
| 8 |
544294801 |
LOCKING PLATE Price: $12.99 |
| 8 |
80-9610 |
BUSHING Price: $11.26 |
| 9 |
725537265 |
SCREW Price: $2.99 |
| 9 |
80-7710 |
SPACER-PIVOT, IDLER Price: $27.21 |
| 10 |
579164002 |
CLUTCH ASSY This part replaces 537404001. Price: $34.99 |
| 10 |
80-6620 |
SPRING-EXTENSION Price: $92.31 |
| 11 |
323-6 |
SCREW-HH Price: $0.66 |
| 11 |
537403701 |
CLUTCH SHOE Price: $11.99 |
| 12 |
42-3560 |
BOLT-SHOULDER Price: $4.85 |
| 12 |
505435302 |
CLUTCH SPRING This part replaces 505435301. Price: $4.99 |
| 13 |
537403601 |
CLUTCH HUB Price: $17.99 |
| 13 |
80-6600 |
BRACKET-SPRING Price: $22.84 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
544892801 |
WASHER Price: $6.99 |
| 15 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 15 |
537135401 |
BUSHING Price: $6.99 |
| 16 |
3296-19 |
NUT-HEX Price: $0.65 |
| 16 |
503201802 |
SCREW Price: $3.99 |
| 17 |
586553303 |
Clutch Drums This part replaces 537321801. Price: $29.99 |
| 17 |
80-6650 |
PULLEY Price: $404.09 |
| 18 |
80-6730 |
V-BELT Price: $52.59 |
| 19 |
80-6660 |
BUSHING-LOCK, TAPER Price: $47.84 |
| 20 |
80-5920 |
KEY-CRANKSHAFT,8 X 25MM Price: $3.22 |
| 21 |
321-4 |
SCREW-HH Price: $0.99 |
| 22 |
80-8680 |
STUD Price: $17.33 |
| 23 |
86-8830 |
STUD-HEAD Price: $36.85 |
| 24 |
3219-28 |
NUT-HEX Price: $0.99 |
| 25 |
3253-21 |
WASHER-LOCK Price: $0.28 |
