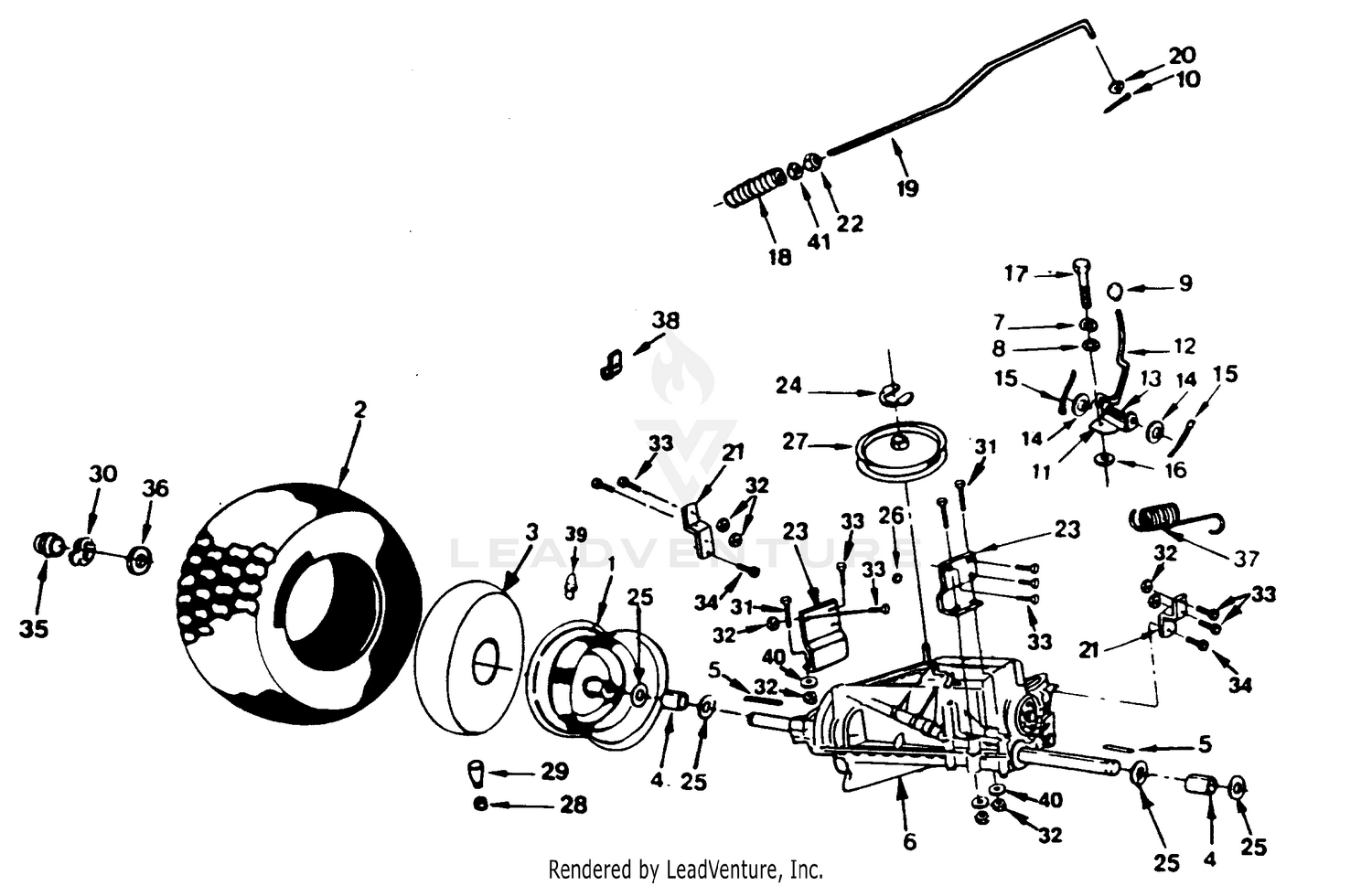

| Ref | Part Number | Description |
|---|
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 1 |
532106272 |
Rear Rim Assembly (AYP part number) Price: $3.33 |
| 2 |
532420531 |
TIRE.18X9.5-8 TURF SAVER This part replaces 532106268. Price: $74.99 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
532007152 |
Tire Tube (Not furnished with Tractor) (AYP part number) Price: $44.99 |
| 4 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 4 |
532109502 |
Split Spacer (AYP part number) Price: $3.99 |
| 5 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
532123583 |
Square Key (AYP part number) Price: $2.99 |
| 6 |
21-9410 |
SEE P.B.#734A Price: Call Us |
| 7 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 7 |
810040400 |
Lock Washer 1/4 (AYP part number) Price: $3.99 |
| 8 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 8 |
531003379 |
WASHER This part replaces 819091210. Price: $2.99 |
| 9 |
21-9470 |
SEE PB #747 Price: Call Us |
| 9 |
532121274 |
Control Knob (AYP part number) Price: $5.99 |
| 10 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 10 |
876020412 |
Cotter Pin (AYP part number) Price: $3.99 |
| 11 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 11 |
532106919 |
Shift Rod Plate (AYP part number) Price: $11.90 |
| 12 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 12 |
532124461 |
Shifter Rod (AYP part number) Price: $8.59 |
| 13 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 13 |
532105700 |
Torsion Spring (AYP part number) Price: $4.60 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 14 |
819151216 |
Washer (AYP part number) Price: Call Us |
| 15 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 15 |
876020416 |
Cotter Pin 1/8 x 1 (AYP part number) Price: $3.99 |
| 16 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 16 |
532105701 |
Shift Plate Washer (AYP part number) Price: $3.99 |
| 17 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 17 |
871040412 |
Hex Bolt (AYP part number) Price: $3.99 |
| 18 |
32152-5 |
NUT-HEX Price: $0.54 |
| 18 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 19 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 19 |
532110437 |
Brake Rod (AYP part number) Price: $29.99 |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 20 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 21 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 21 |
532121520 |
Torque Strap (AYP part number) Price: $3.99 |
| 22 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 23 |
532109167 |
Transaxle Bracket (AYP part number) Price: $2.86 |
| 24 |
812000028 |
Retainer Ring (AYP part number) Price: $4.99 |
| 25 |
532121749 |
Washer (AYP part number) Price: $1.99 |
| 27 |
532123666 |
Transaxle Input Pulley (AYP part number) Price: $22.99 |
| 28 |
532059192 |
Valve Cap (AYP part number) Price: $3.99 |
| 29 |
532065139 |
Valve Stem (AYP part number) Price: $5.99 |
| 30 |
812000001 |
E-Ring (AYP part number) Price: $2.99 |
| 31 |
874760644 |
Hex Bolt 3/8-16 x 2-3/4 (AYP part number) Price: $3.99 |
| 32 |
873680600 |
Nut Price: $1.99 |
| 33 |
874760612 |
Hex Bolt 3/8-16 x 3/4 (AYP part number) Price: $1.99 |
| 34 |
539976934 |
HCS 5/16C X 3/4 This part replaces 817490512. Price: $1.99 |
| 35 |
532104757 |
Rear Hub Cap (AYP part number) Price: $1.99 |
| 36 |
532121748 |
Washer (AYP part number) Price: $1.99 |
| 37 |
532146682 |
SPRING,BRAKE RETURN This part replaces 532110422. Price: $4.99 |
| 38 |
532002751 |
Clip, Insulated (AYP part number) This part replaces 532124996. Price: $2.42 |
| 39 |
532000278 |
Grease Fitting (AYP part number) Price: $2.99 |
| 40 |
819111214 |
Washer (AYP part number) Price: Call Us |
