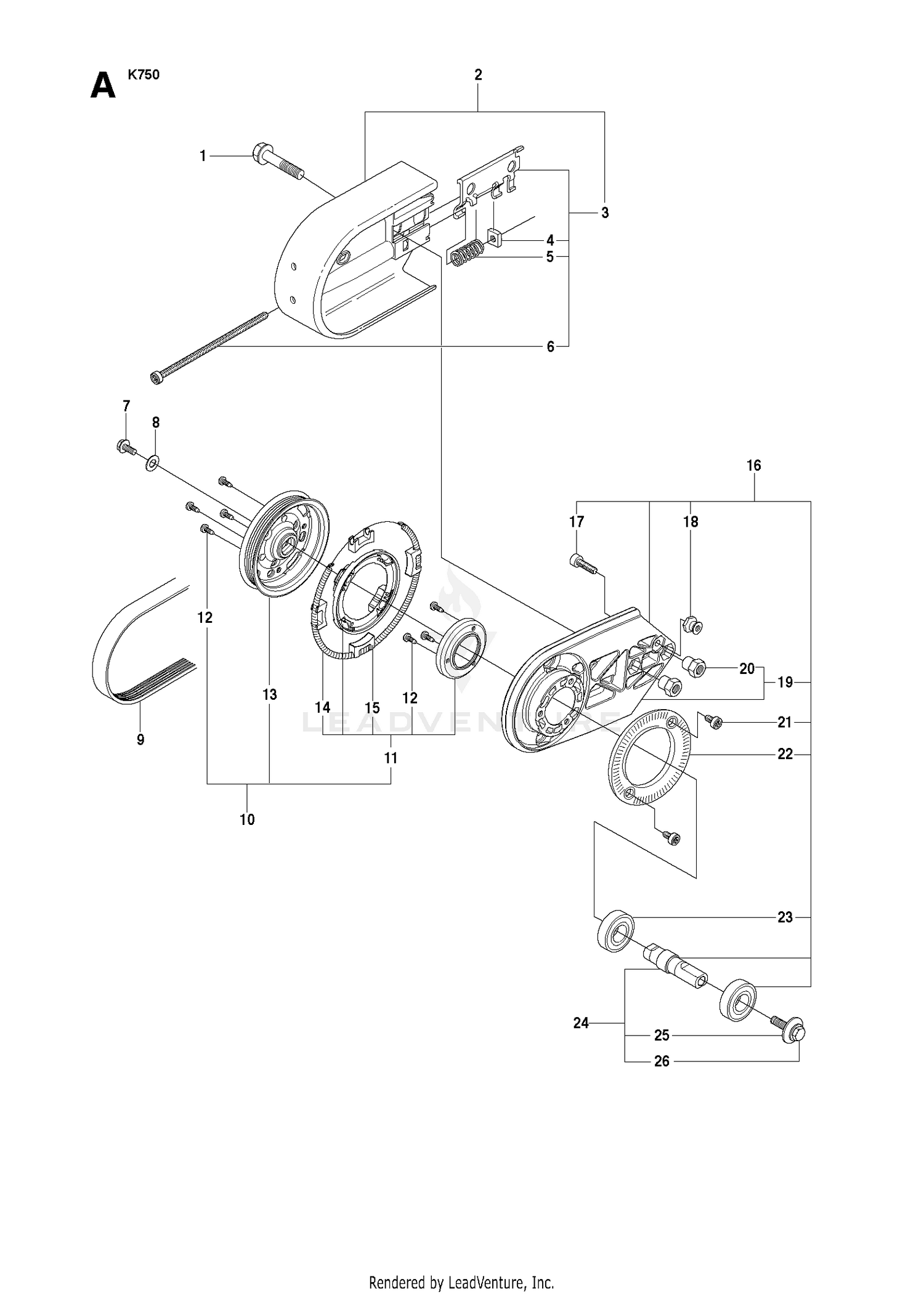

BELT GUARD & PULLEY
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506284401 | BOLT Price: $3.99 |
| 2 | 506393602 | BELT GUARD Price: $39.99 |
| 3 | 506266604 | TENSIONER Price: $27.99 |
| 4 | 506409301 | NUT Price: $3.99 |
| 5 | 506266801 | SPRING Price: $3.99 |
| 6 | 503207205 | SCREW Price: $4.99 |
| 7 | 503200045 | SCREW Price: $3.99 |
| 8 | 503230116 | WASHER Price: $2.99 |
| 9 | 544908402 | BELT Price: $44.99 |
| 10 | 588470403 | PULLEY ASSY This part replaces 504037007. Price: $44.99 |
| 11 | 505445405 | CASSETTE FRICTION RETARDER This part replaces 505445403. Price: $27.99 |
| 13 | 590895801 | PULLEY This part replaces 504062201. Price: $22.99 |
| 14 | 544441001 | DRAW SPRING Price: $5.99 |
| 15 | 544440402 | BRAKE SHOE Price: $4.99 |
| 16 | 581351710 | BEARING HOUSING ASSY This part replaces 506394208. Price: $84.99 |
| 17 | 505574116 | SCREW ITXSCM Price: $3.99 |
| 18 | 506143201 | CATCH Price: $5.99 |
| 19 | 581351707 | BEARING HOUSING This part replaces 506394206. Price: $69.99 |
| 20 | 506287301 | NUT Price: $6.99 |
| 21 | 503215310 | SCREW Price: $3.99 |
| 22 | 506288401 | FLANGE Price: $4.99 |
| 23 | 583953301 | BALL BEARING Price: $9.99 |
| 24 | 506298365 | SHAFT Price: $64.99 |
| 25 | 506139511 | WASHER Price: $4.99 |
| 26 | 581855201 | SCREW This part replaces 506139601. Price: $9.99 |
