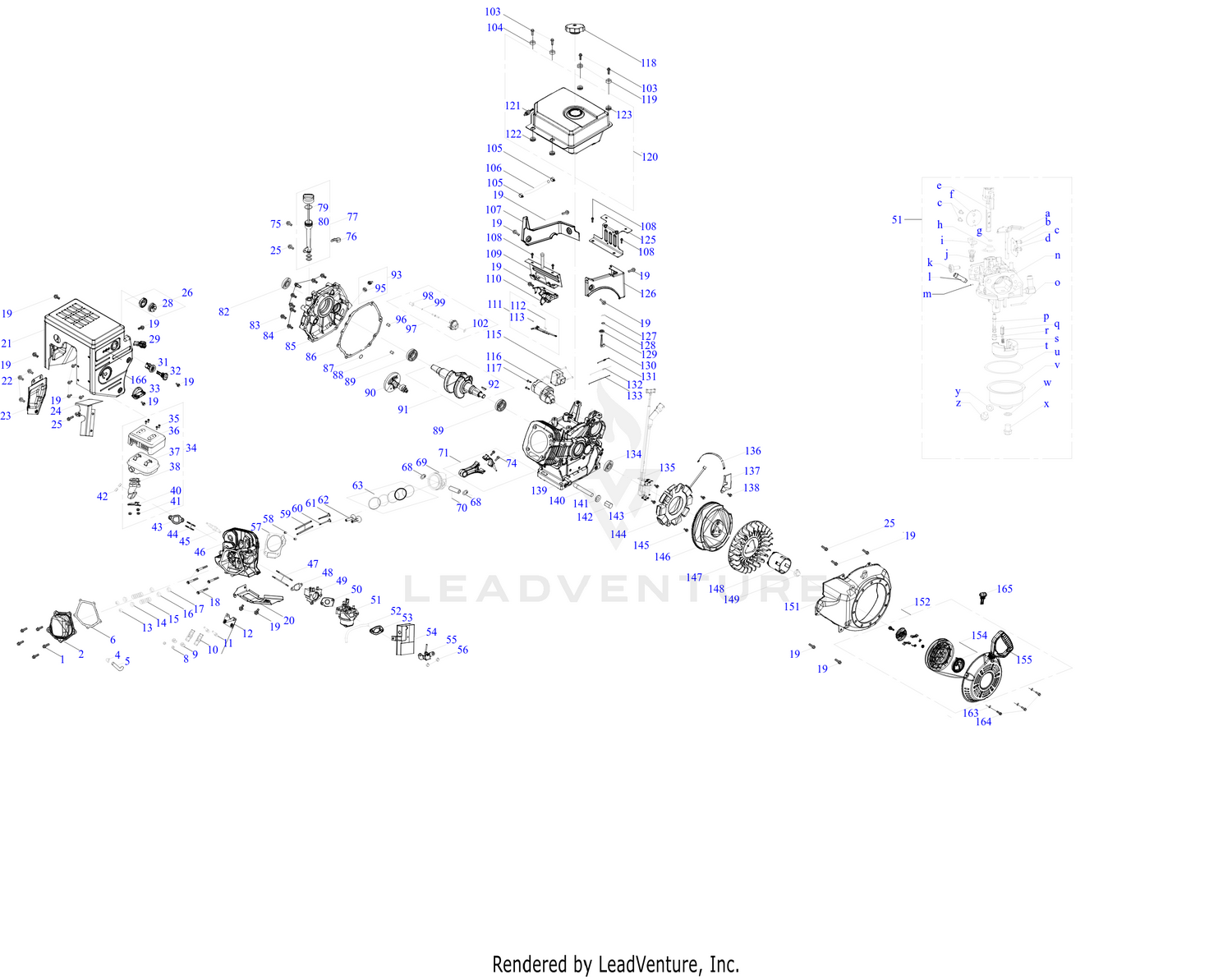

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| b |
736-04638A |
LOCK WASHER This part replaces 736-04638. Price: $2.88 |
| c |
None |
Screw, M3×6 |
| d |
None |
Choke Plate |
| e |
None |
Throttle Shaft |
| f |
None |
Throttle Plate |
| g |
None |
Gasket |
| h |
None |
Throttle Shaft Sleeve |
| i |
None |
Idle Jet Rivet |
| j |
None |
Idle Jet |
| k |
None |
Idle Adjusting Screw |
| l |
None |
Venting Hose |
| m |
None |
Primer Line |
| n |
None |
Carburetor Body |
| o |
None |
Float Pin |
| p |
None |
Nozzle Tube |
| q |
None |
Needle Valve |
| r |
None |
Main Jet |
| s |
None |
Needle Valve Spring |
| t |
None |
Float |
| u |
951-11970 |
FUEL BOWL GASKET Price: $5.95 |
| v |
None |
FLOAT BOWL |
| w |
951-11348A |
FUEL BOWL GASKET This part replaces 951-11348. Price: $5.07 |
| x |
710-04945 |
BOLT M8-1 x 10 Price: $3.66 |
| y |
951-11349A |
FUEL DRAIN PLUG GASKET This part replaces 951-11349. Price: $3.66 |
| z |
710-04938 |
FUEL DRAIN PLUG Price: $3.66 |
| 1 |
710-05054 |
BOLT M6-1 x 16 GR8.8 Price: $5.38 |
| 2 |
951-11220 |
VALVE COVER Price: $31.06 |
| 4 |
726-04101 |
BREATHER HOSE CLAMP Not Available Price: |
| 5 |
951-14982 |
BREATHER HOSE Price: $7.20 |
| 6 |
951-11967 |
VALVE COVER GASKET Price: $14.34 |
| 8 |
751-11124 |
PIVOT LOCKING NUT Price: $8.18 |
| 9 |
751-11123 |
VALVE ADJUST NUT Price: $9.09 |
| 10 |
951-11966 |
ROCKER ARM Price: $7.31 |
| 11 |
710-04962 |
ROCKER STUD BOLT Price: $5.51 |
| 12 |
951-11965B |
PUSH ROD GUIDE This part replaces 951-11965A. Price: $5.75 |
| 13 |
951-12269 |
EXHAUST VALVE ADJUSTER Price: $5.48 |
| 14 |
951-12080 |
EX VALVE SPRING RETAINER Price: $3.68 |
| 15 |
951-12078 |
VALVE SPRING Price: $3.49 |
| 16 |
951-12077A |
VALVE SPRING RETAINER This part replaces 951-12077. Price: $3.49 |
| 17 |
951-11964A |
INTAKE VALVE SEAL This part replaces 951-11964. Price: $9.96 |
| 18 |
710-04965 |
SCREW M4 x 55 Price: $5.77 |
| 19 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 20 |
951-11180 |
CYLINDER BAFFLE Not Available Price: |
| 21 |
951-11194 |
MUFFLER SHIELD Price: $59.77 |
| 22 |
710-04914 |
BOLT M6-1 x 10 GR8.8 Price: $3.71 |
| 23 |
951-11181 |
MUFFLER BAFFLE Price: $27.15 |
| 24 |
951-11227 |
CARBURETOR HEAT SHIELD Price: $25.66 |
| 25 |
710-04968 |
BOLT M6 x 16 Price: $5.77 |
| 26 |
951-10639B |
PRIMER This part replaces 951-10639A. Price: $13.84 |
| 28 |
951-11824 |
PRIMER BULB Price: $9.75 |
| 29 |
951-11224 |
THROTTLE CONTROL KNOB Price: $6.89 |
| 31 |
951-10637 |
IGNITION SWITCH Price: $13.28 |
| 32 |
951-10630 |
IGNITION KEY Price: $6.07 |
| 33 |
951-11302 |
CHOKE KNOB Price: $5.94 |
| 34 |
951-11195 |
MUFFLER ASSEMBLY W/MNFLD Price: $114.49 |
| 35 |
710-05051 |
BOLT Price: $5.61 |
| 36 |
908-05051 |
MUFFLER GUARD Price: $21.81 |
| 37 |
908-05020 |
MUFFLER BODY Not Available Price: |
| 38 |
921-04670 |
EXHAUST MANIFOLD GASKET Not Available Price: |
| 40 |
908-05052 |
NUT-RET EXHAUST BGBLK Price: $5.20 |
| 41 |
912-05044 |
HEX NUT M8 - 1.25 Not Available Price: |
| 42 |
712-04219 |
NUT M8-1.25 Price: $5.34 |
| 43 |
951-11212A |
MUFFLER GASKET This part replaces 951-11212. Price: $4.81 |
| 44 |
710-04964 |
STUDS M8-1.25 x 48.5 Price: $5.48 |
| 45 |
951-10292A |
SPARK PLUG (F6RTC/RN11YC/BPR6ES) This part replaces 951-10292. Price: $6.35 |
| 46 |
951-14206 |
CYLINDER HEAD Price: $189.97 |
| 47 |
710-04963 |
STUD M6-1 x 104 Price: $6.07 |
| 48 |
951-11225 |
INTAKE GASKET Price: $4.10 |
| 49 |
951-11222 |
CARBURETOR INSULATOR Price: $7.25 |
| 50 |
951-11223 |
CARBURETOR GASKET Price: $4.60 |
| 51 |
951-05275 |
CARBURETOR ASSEMBLY Price: $124.83 |
| 52 |
951-14983 |
HOSE 3.2 x 6.5 x 240 Price: $7.20 |
| 53 |
951-14980 |
AIR CLEANER GASKET Price: $7.20 |
| 54 |
951-14728 |
HEATE BOX Price: $23.96 |
| 55 |
951-11192 |
CHOKE ASSEMBLY NLAUD Not Available Price: |
| 56 |
712-05015 |
HEX NUT Price: $5.78 |
| 57 |
951-12076 |
CYLINDER HEAD GASKET Price: $11.37 |
| 58 |
715-04097 |
DOWEL PIN Price: $5.34 |
| 59 |
951-14205 |
PUSH ROD Not Available Price: |
| 60 |
951-14203 |
INTAKE VALVE Price: $18.07 |
| 61 |
951-14204 |
EXHAUST VALVE Not Available Price: |
| 62 |
951-11962A |
TAPPET This part replaces 951-11962. Price: $5.88 |
| 63 |
951-12387 |
PISTON RING SET Price: $22.14 |
| 68 |
951-11632 |
PISTON PIN SNAP RING Price: $3.53 |
| 69 |
951-12043 |
PISTON Price: $31.70 |
| 70 |
951-12044 |
PISTON PIN Not Available Price: |
| 71 |
951-12066 |
CONNECTING ROD ASSEMBLY Price: $65.06 |
| 74 |
710-05319 |
BOLT M8-1.25 x 38 GR10.9 Price: $4.20 |
| 75 |
710-05349 |
BOLT M6-1 x 8 GR8.8 Not Available Price: |
| 76 |
951-11320 |
OIL TUBE SUPPORT BRACKET Not Available Price: |
| 77 |
931-05032A |
DIPSTICK ASSEMBLY Price: $25.28 |
| 79 |
921-04663A |
O-RING This part replaces 921-04663. Price: $5.05 |
| 80 |
931-09317 |
OIL FILL TUBE Price: $11.77 |
| 82 |
951-11372 |
OIL SEAL Price: $13.54 |
| 83 |
710-06062 |
SCREW M8-1.25 x 45 GR10.9 Not Available This part replaces 710-04972. Price: |
| 84 |
710-06061 |
BOLT M8×38 This part replaces 710-04971. Price: $5.67 |
| 85 |
951-12395 |
CRANKCASE COVER Not Available Price: |
| 86 |
951-11374 |
CRANKCASE COVER GASKET Price: $13.94 |
| 87 |
736-04545 |
WASHER Not Available Price: |
| 88 |
715-04102 |
DOWEL PIN Price: $4.93 |
| 89 |
951-12069 |
BEARING Not Available Price: |
| 90 |
951-12072A |
CAMSHAFT ASSEMBLY Price: $85.04 |
| 91 |
951-14201 |
CRANKSHAFT ASSEMBLY Not Available Price: |
| 92 |
751P10307A |
WOODRUFF KEY This part replaces 951-10307. Price: $2.01 |
| 93 |
931-09966A |
OIL PLUG This part replaces 931-09966. Price: $4.81 |
| 95 |
951-11577 |
O-RING 15.8 x 2.5 Price: $3.53 |
| 96 |
715-04096A |
DOWEL PIN 9 X 14 This part replaces 715-04092. Price: $3.66 |
| 97 |
951-12071 |
GOVERNOR ARM SHAFT Not Available Price: |
| 98 |
931-09778 |
GOVERNOR SLIDE CAP Price: $4.02 |
| 99 |
916-05005 |
GOVERNOR SHAFT STOP RING Not Available Price: |
| 102 |
936-05053 |
GOVERNOR GEAR WASHER Price: $4.40 |
| 103 |
710-04970 |
FLANGE BOLT M8-1.25 x 20 GR8.8 Price: $5.61 |
| 104 |
750-05313 |
BUSHING Price: $3.53 |
| 105 |
951-11700A |
CARBURETOR HOSE CLAMP This part replaces 951-11700. Price: $3.60 |
| 106 |
951-14983 |
HOSE 3.2 x 6.5 x 240 Price: $7.20 |
| 107 |
951-11184 |
FUEL TANK SHROUD Not Available Price: |
| 108 |
710-04921 |
BOLT M8-1.25 x 14 GR8.8 Price: $4.75 |
| 109 |
951-11182 |
FUEL TANK MOUNTING BRACKET Not Available Price: |
| 110 |
951-11213 |
THROTTLE CONTROL ASSEMBLY Price: $39.98 |
| 111 |
951-14200 |
GOVERNOR ARM ASSEMBLY Price: $20.96 |
| 112 |
710-04908 |
BOLT M6-1 x 21 Price: $5.65 |
| 113 |
712-05015 |
HEX NUT Price: $5.78 |
| 115 |
710-04965 |
SCREW M4 x 55 Price: $5.77 |
| 116 |
951-11196 |
ELECTRIC STARTER Price: $357.97 |
| 117 |
710-04967 |
BOLT M8-1.25 x 55 GR8.8 Price: $5.59 |
| 118 |
951-12533 |
FUEL CAP RED Price: $20.81 |
| 119 |
750-05312 |
BUSHING Price: $3.66 |
| 120 |
951-11201 |
FUEL TANK Not Available Price: |
| 121 |
951-10651 |
FUEL TANK NIPPLE Not Available Price: |
| 122 |
736-04451 |
FLAT WASHER Not Available Price: |
| 123 |
736-04450 |
FLAT WASHER Price: $5.66 |
| 125 |
951-11183 |
FUEL TANK MOUNTING BRACKET Not Available Price: |
| 126 |
951-12385 |
ENGINE COVER Not Available Price: |
| 127 |
714-04077 |
GOVERNOR SHAFT CLIP Price: $5.30 |
| 128 |
736-04453 |
FLAT WASHER Price: $5.34 |
| 129 |
951-11958 |
GOVERNOR SEAL Price: $3.56 |
| 130 |
911-06192 |
GOVERNOR GEAR SHAFT Price: $4.91 |
| 131 |
951-11202 |
GOVERNOR SPRING Price: $3.75 |
| 132 |
951-11203 |
THROTTLE RETURN SPRING Price: $3.86 |
| 133 |
951-11204 |
GOVERNOR ROD Price: $3.45 |
| 134 |
951-11498 |
OIL SEAL Price: $12.49 |
| 135 |
951-11197A |
IGNITION COIL ASSEMBLY Price: $73.75 |
| 137 |
951-11186 |
ALTERNATOR WIRE CLAMP BRACKET Price: $4.44 |
| 138 |
710-04966 |
BOLT M6-1 x 8 GR8.8 Price: $5.30 |
| 139 |
951-14202 |
CRANKCASE COMPLETE Price: $343.63 |
| 140 |
951-11350A |
OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05 |
| 141 |
736-04440A |
FLAT WASHER This part replaces 736-04440. Price: $6.01 |
| 142 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 143 |
710-05350 |
IGNITION COIL BOLT M6-1 x 28 GR8.8 Price: $3.53 |
| 144 |
951-15479 |
ALTERNATOR Price: $85.49 |
| 145 |
710-04969 |
BOLT-M6-1 x 30 GR8.8 Price: $3.66 |
| 146 |
951-15639 |
FLYWHEEL Price: $91.13 |
| 147 |
951-11217 |
COOLING FAN Price: $49.81 |
| 148 |
951-11218 |
STARTER CUP Price: $14.91 |
| 149 |
712-04220 |
NUT M16-1.5 Price: $5.59 |
| 151 |
951-11379 |
BLOWER HOUSING Price: $81.02 |
| 152 |
951-11208 |
RECOIL STARTER ASSEMBLY Price: $89.61 |
| 154 |
932-05127 |
ENGINE RECOIL SPRING Price: $10.22 |
| 155 |
731-05696 |
STARTER HANDLE Price: $14.69 |
| 163 |
736-04455B |
FLAT WASHER This part replaces 736-04455. Price: $5.94 |
| 164 |
710-04974 |
BOLT M6-1 x 10 GR8.8 Price: $6.07 |
| 165 |
951-10630 |
IGNITION KEY Price: $6.07 |
| 166 |
951-11594 |
CONTROL PANEL Price: $47.87 |
