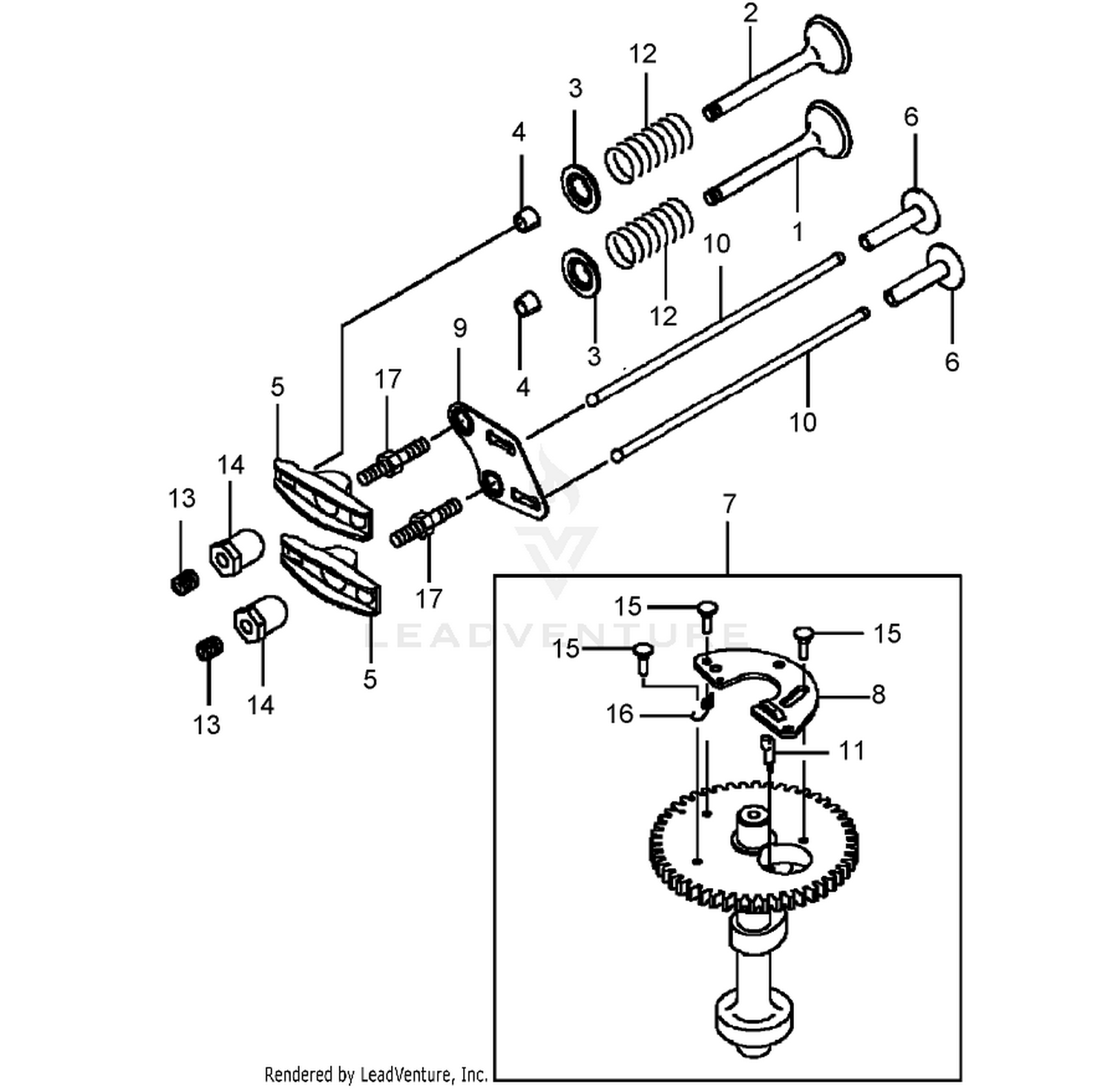

Valve and Camshaft Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 108-2523 | VALVE-INTAKE Price: $68.99 |
| 2 | 108-2524 | VALVE-EXHAUST Price: $124.99 |
| 3 | 108-2525 | RETAINER-SPRING, VALVE Price: $6.49 |
| 4 | 95-9744 | COLLET Price: $2.49 |
| 5 | 114-8668 | ARM-ROCKER This part replaces 108-2526. Price: $14.68 |
| 6 | 108-2527 | TAPPET Price: $35.99 |
| 7 | 108-2528 | CAMSHAFT VALVE ASM Price: $291.99 |
| 8 | 108-2529 | WEIGHT Price: $2.89 |
| 9 | 108-2530 | GUIDE Price: $2.15 |
| 10 | 108-2531 | ROD-PUSH Price: $13.99 |
| 11 | 108-2532 | ARM Price: $15.99 |
| 12 | 108-2533 | SPRING-VALVE, ENGINE Price: $19.80 |
| 13 | 108-2534 | SCREW Price: $4.39 |
| 14 | 93-8534 | NUT Price: $5.75 |
| 15 | 108-2535 | PIN Price: $2.47 |
| 16 | 108-2536 | SPRING Price: $2.63 |
