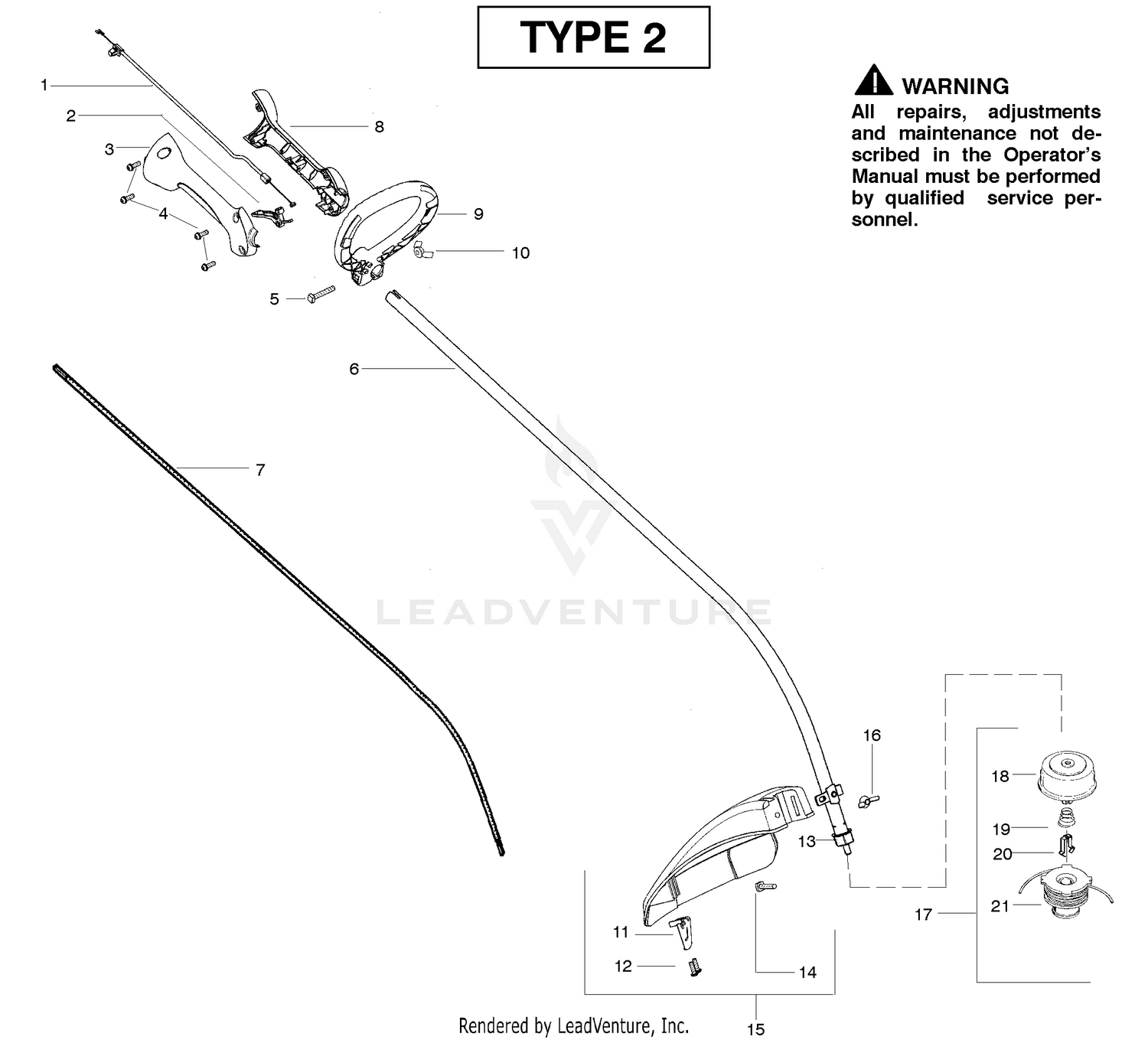

| Ref | Part Number | Description |
|---|
| 1 |
3231-24 |
SCREW-CARR Price: $1.36 |
| 1 |
530057991 |
Assy-Throttle Cable Price: $8.99 |
| 2 |
3296-26 |
NUT-LOCK, NI Price: $2.99 |
| 2 |
530058000 |
Trigger Price: $2.99 |
| 3 |
530057582 |
Throttle Hsg. (Right) Price: $7.99 |
| 4 |
530015880 |
Screw-Throttle Hsg. Price: $1.99 |
| 5 |
530015821 |
Bolt-Handle/Shield Price: $1.99 |
| 6 |
530071875 |
Kit-Drive Shaft Hsg. Price: $17.99 |
| 7 |
530096276 |
Shaft- Flex Price: $19.99 |
| 8 |
530057581 |
Throttle Hsg. (Left) Price: $7.99 |
| 10 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 11 |
530052286 |
Line Limiter Price: $1.54 |
| 12 |
530015957 |
Screw This part replaces 530015966. Price: $1.99 |
| 13 |
530095563 |
Dust Cup Price: $9.99 |
| 14 |
530015820 |
Bolt Price: $1.99 |
| 16 |
530091373 |
Nut This part replaces 530016152. Price: $1.99 |
| 18 |
530071306 |
Kit-Hub Ass'y This part replaces 530095776. Price: $8.99 |
| 19 |
530053241 |
Spring-Compression Price: $1.99 |
| 20 |
530401957 |
Clip-Retainer-Head Price: $1.99 |
| 21 |
952701719 |
TNG 6 RH .080X25' PLN This part replaces 952711616. Price: $7.95 |
