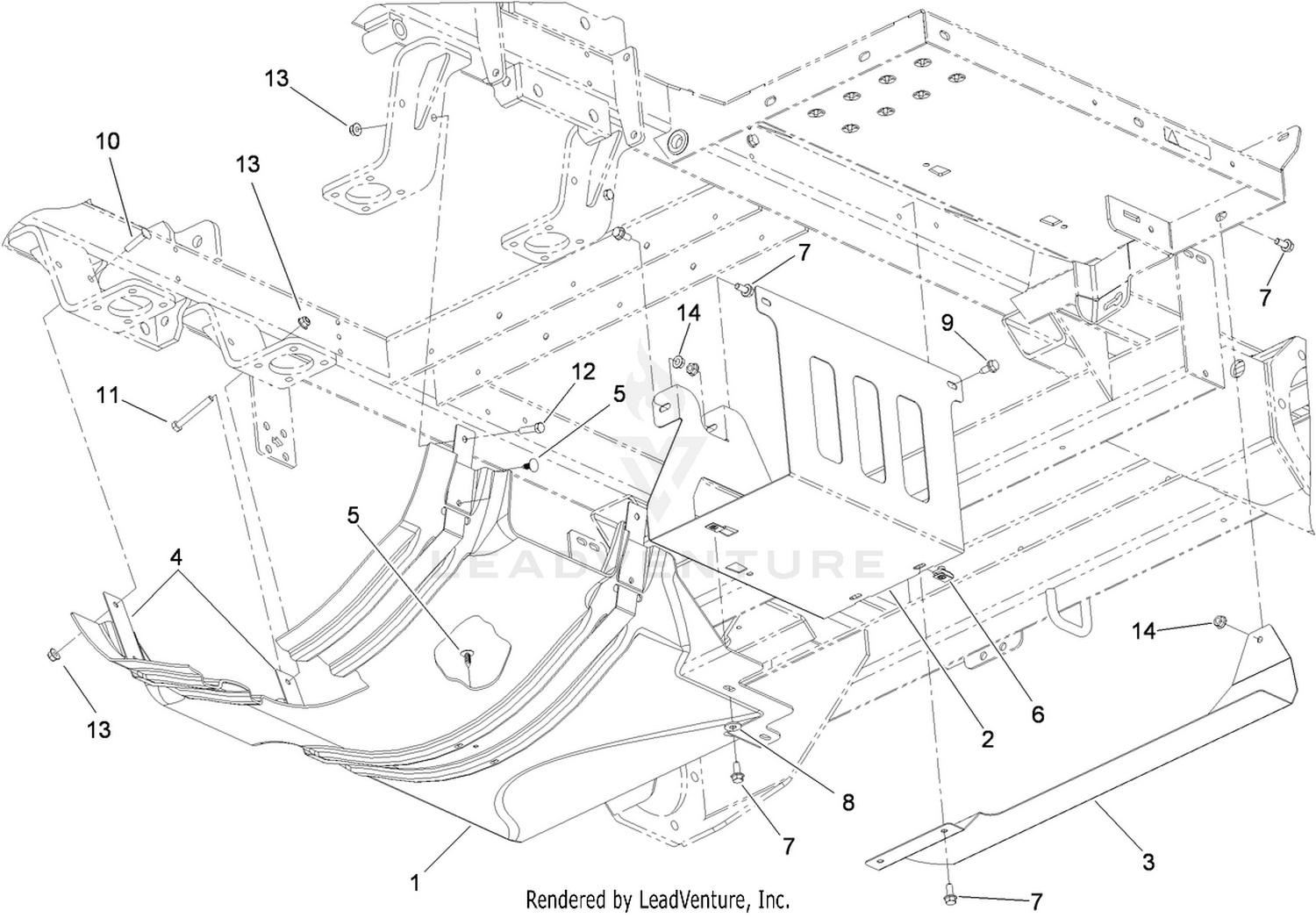

| Ref | Part Number | Description |
|---|
| 1 |
119-9394 |
SHIELD-REAR HEAT, ENGINE Price: $304.59 |
| 2 |
119-9395 |
SHIELD-HEAT, MUFFLER Price: $91.06 |
| 3 |
119-9396 |
SHIELD-HEAT, TAILPIPE Price: $55.53 |
| 4 |
119-9399-03 |
STRAP-SHIELD, HEAT Price: $55.45 |
| 5 |
117-2382 |
PLUG-PLASTIC Price: $0.69 |
| 6 |
94-2413 |
NUT-U Price: $1.79 |
| 7 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 8 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 9 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 10 |
33-5790 |
BOLT-CARR Price: $3.69 |
| 11 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 12 |
322-6 |
SCREW-HH Price: $0.45 |
| 13 |
104-8300 |
NUT-HF, NI Price: $0.39 |
