| Ref | Part Number | Description |
|---|
| 1 |
182032X421 |

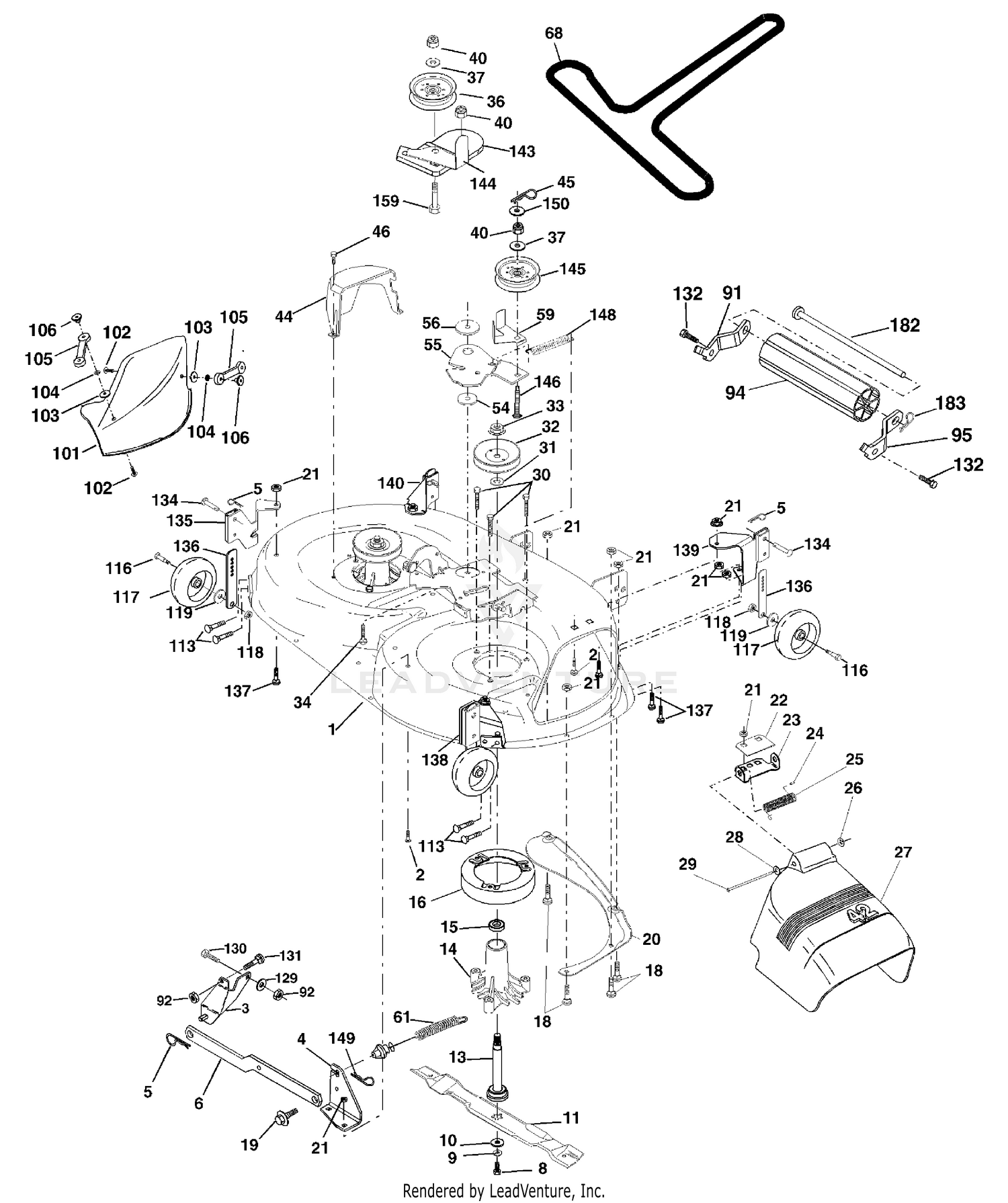

Mower Deck Assembly, 42" Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 25 Grade 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 10 |
108-1417 |
PISTON (+0.5MM) Price: $271.74 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 11 |
134149 |
Blade, Mulching 42" Std Price: Call Us |
| 11 |
138498 |
Blade Mower 42" Hi-Lift Std Price: Call Us |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 20 |
108-1404 |
PISTON RING ASM (+0.5MM) Price: $222.07 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
134753X421 |
Stiffener Bracket Price: Call Us |
| 23 |
131267X421 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 31 |
129963 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Flange Price: Call Us |
| 34 |
72110614 |
Bolt Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: Call Us |
| 40 |
73680600 |
Nut Price: Call Us |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 50 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9552. Price: $547.99 |
| 54 |
133943 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
173442 |
Guard TUV Idler Price: Call Us |
| 60 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 61 |
174882 |
Spring Ext. Elect Clutch Price: Call Us |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 108-1406. Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) This part replaces 108-1405. Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 90 |
74760616 |
Bolt Fin Hex 3/8-16 Unc x 1 Price: Call Us |
| 90 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 91 |
180532 |
Bracket Asm Noseroller LH Price: Call Us |
| 92 |
73800600 |
Nut Lock Hex W/Ins 3/8-16unc Price: Call Us |
| 94 |
132264 |
Roller Nose 38 & 42 Price: Call Us |
| 95 |
180533 |
Bracket Asm Noseroller RH Price: Call Us |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw Pan HD Phillip 10-24 x 5/8 Price: Call Us |
| 103 |
19061216 |
Washer, Flat Price: Call Us |
| 104 |
10071000 |
Washer, Lock Price: Call Us |
| 105 |
160793 |
Latch Assembly Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 113 |
17060512 |
Screw Tapping 5/16 - 18 x 3/4 Price: Call Us |
| 116 |
137644 |
Bolt, Shoulder Price: Call Us |
| 117 |
133957 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 129 |
19131312 |
Washer 13/32 x 13-16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 131 |
72140608 |
Bolt RDHD 3/8-16 unc x 1 Price: Call Us |
| 132 |
17060612 |
Screw 3/8-16 x .75 Price: Call Us |
| 134 |
156941 |
Pin Head Pivet Price: Call Us |
| 135 |
159765X421 |
Brkt Asm Whl Ga. R.LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Gauge Wheel Price: Call Us |
| 137 |
72110505 |
Bolt Carr. 5/16-18 x 5/8 Price: Call Us |
| 138 |
159763X421 |
Brkt Asm Whl Ga. R. RH Price: Call Us |
| 139 |
159767X421 |
Brkt Asm Whl Ga. F. RH Price: Call Us |
| 140 |
159768X421 |
Brkt Asm Whl Ga. F. LH Price: Call Us |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 143 |
157109X421 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
171977 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4 Price: Call Us |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
112-7005 |
BEARING-MAIN (STD) Price: $66.99 |
| 170 |
112-7010 |
METAL-CRANKPIN (-0.4MM) Price: $30.75 |
| 170 |
98-9528 |
BEARING-MAIN (-0.2MM) This part replaces 112-7009. Price: $15.04 |
| 180 |
112-7013 |
METAL-CRANKPIN (-0.4MM) Price: $30.75 |
| 180 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 112-7012. Price: $60.46 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) This part replaces 112-7011. Price: $62.26 |
| 182 |
179126 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 190 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) Price: $60.46 |
| 190 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) Price: $66.64 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 112-7038. Price: $86.06 |
| 200 |
98-9413 |
BEARING-THRUST (STD) This part replaces 99-6864. Price: $16.90 |
| 200 |
99-6865 |
METAL-SIDE, O/S (0.2MM) Price: $27.11 |
| 200 |
99-6866 |
METAL-SIDE, O/S (0.4MM) Price: $27.11 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 99-6868. Price: $18.42 |
| 210 |
98-9688 |
BEARING-THRUST (STD) This part replaces 99-6867. Price: $16.90 |
