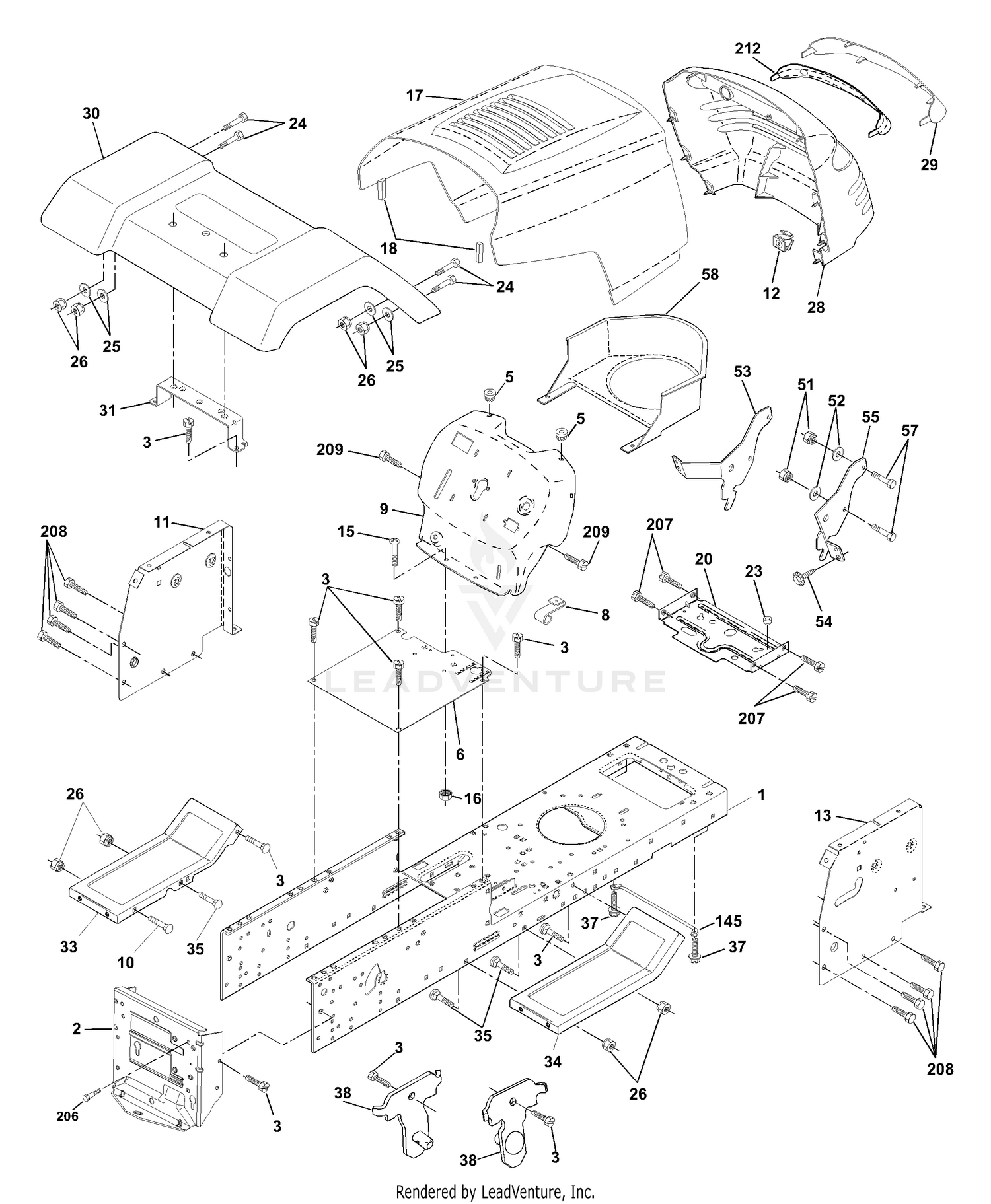

| Ref | Part Number | Description |
|---|
| 1 |
169831 |
Chassis Price: Call Us |
| 2 |
169061 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 5 |
155272 |
Bumper Hood/Dash Price: Call Us |
| 6 |
155923 |
Saddle Flat Lt Price: Call Us |
| 8 |
155138 |
Clip Retainer Slide-On Price: Call Us |
| 9 |
168347X011 |
Dash Price: Call Us |
| 10 |
72140608 |
Bolt Rd Hd Sqnk. 3/8-16 Unc x 1 Price: Call Us |
| 11 |
155927 |
Panel Asm. Dash Lh Price: Call Us |
| 12 |
145660 |
Clip Tinnerman Grile P/L Price: Call Us |
| 13 |
172108 |
Panel Dash Rh Price: Call Us |
| 15 |
74180512 |
Screw Mach Trhd 5/16-18 Unc x 3/4 Price: Call Us |
| 16 |
692171 |
Crankshaft Price: Call Us |
| 16 |
73510500 |
Nut Keps 5/16-18 Unc Price: Call Us |
| 17 |
159639X428 |
Hood Price: Call Us |
| 17 |
690752 |
Bearing-Ball Price: Call Us |
| 18 |
126938X |
Bumper Hood Price: Call Us |
| 20 |
156437 |
Plate Mtg Battery/Fuel Tank Price: Call Us |
| 23 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 24 |
74780616 |
Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5 Price: Call Us |
| 25 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 25 |
808326 |
Piston ASM (Standard) Price: Call Us |
| 26 |
73800600 |
Nut Lock Hex w/Insert 3/8-16 UNC Price: Call Us |
| 26 |
807889 |
Ring Set (Standard) Price: Call Us |
| 27 |
690683 |
Lock-Pin, Piston Price: Call Us |
| 28 |
140434 |
Grill/Lens Asm Price: Call Us |
| 28 |
807886 |
Pin-Piston Price: Call Us |
| 29 |
140273X599 |
Lens Grille Private label Price: Call Us |
| 29 |
807900 |
Rod-Connecting (Standard) Price: Call Us |
| 30 |
169467X505 |
Fender Asm Price: Call Us |
| 31 |
136619 |
Bracket Fender Price: Call Us |
| 32 |
690698 |
Screw Price: Call Us |
| 33 |
145244X505 |
Footrest Price: Call Us |
| 34 |
145243X505 |
Footrest Price: Call Us |
| 35 |
72110606 |
Bolt Rd Hd Sht. Sqnk. 3/8-16 x 3/4 Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 5/16-18 x 1/2 Tyt Price: Call Us |
| 38 |
169834 |
Bracket Asm. Pivot Mower Rear Price: Call Us |
| 46 |
691557 |
Camshaft Price: Call Us |
| 51 |
73800400 |
Nut Lock Hex W/Ins. 1/4-20 Price: Call Us |
| 52 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 53 |
144697 |
Bracket Grille LH Price: Call Us |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 55 |
144696 |
Bracket, Grille RH Price: Call Us |
| 57 |
74780412 |
Bolt Fin Hex 1/4-20 x .75 Price: Call Us |
| 58 |
150127 |
Air Duct Private Label Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 146 |
691639 |
Key-Timing Price: Call Us |
| 206 |
170165 |
Bolt shoulder 5/16-18 Price: Call Us |
| 207 |
17670508 |
Screw Thdrol 5/16-18 x 1/2 TYTT Price: Call Us |
| 208 |
17670608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 209 |
17000612 |
Screw Hex Wsh Thdrol 3/8-16 Price: Call Us |
| 212 |
156229 |
Insert Lens Reflector Price: Call Us |
| 377 |
808095 |
Key-Woodruff Price: Call Us |
| 598 |
807625 |
Shim-Play, End Price: Call Us |
| 741 |
691530 |
Gear-Timing Price: Call Us |
| 807994 |
Ring |
Set (.010 O.S.) Price: Call Us 807994 |
| 807995 |
Ring |
Set (.020 O.S.) Price: Call Us 807995 |
| 807996 |
Ring |
Set (.030 O.S.) Price: Call Us 807996 |
| 808336 |
Piston |
ASM (.010 O.S.) Price: Call Us 808336 |
| 808337 |
Piston |
ASM (.020 O.S.) Price: Call Us 808337 |
| 808338 |
Piston |
ASM (.030 O.S.) Price: Call Us 808338 |
