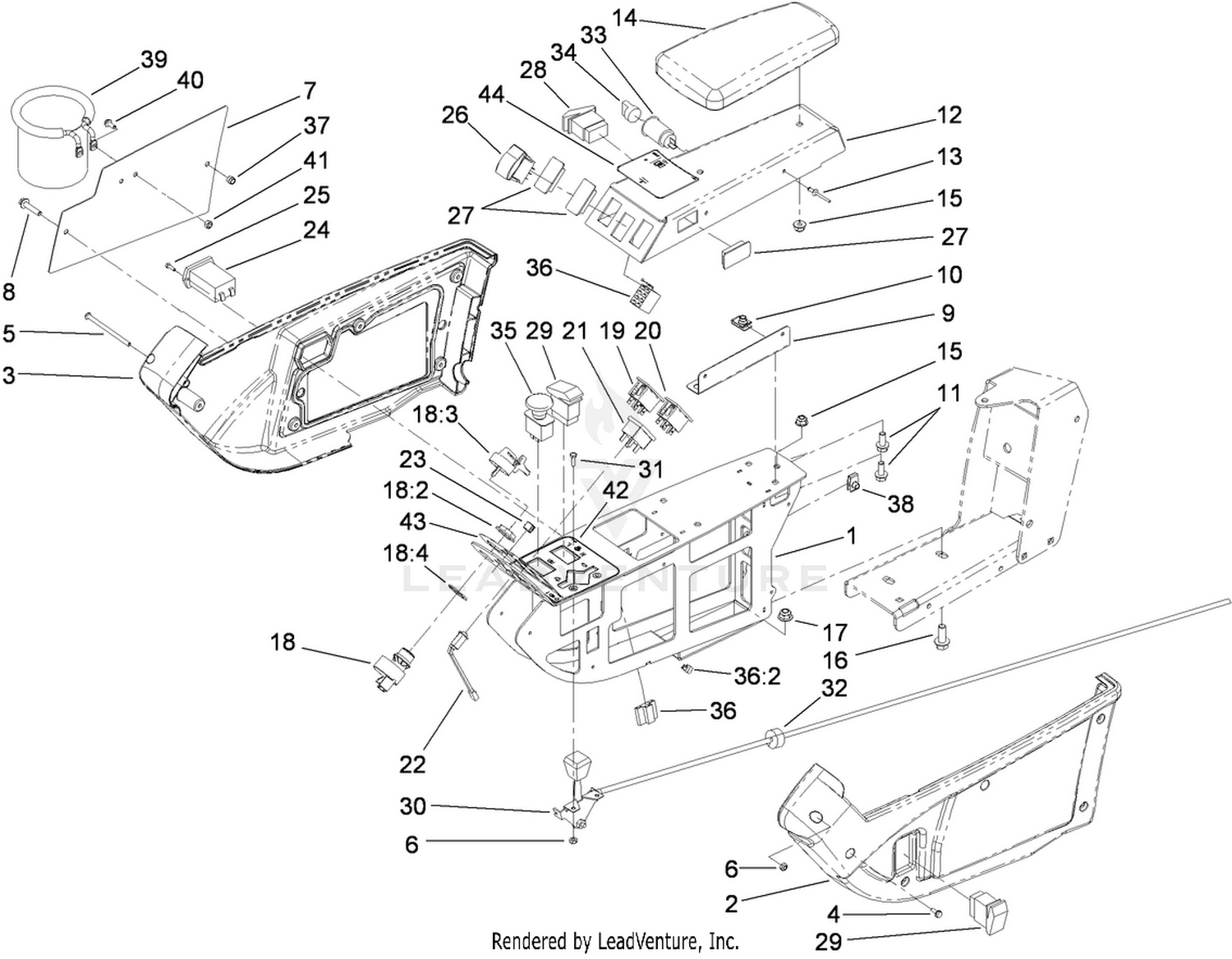

| Ref | Part Number | Description |
|---|
| 1 |
115-4430-03 |
FRAME-ARM, CONTROL Price: $294.07 |
| 2 |
108-7604 |
COVER-LH Price: $55.56 |
| 3 |
108-7605 |
COVER-RH Price: $55.56 |
| 4 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 5 |
3250-22 |
SCREW-PPH Price: $4.09 |
| 6 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 7 |
115-8849-03 |
PLATE-COVER Price: $23.24 |
| 8 |
3234-21 |
SCREW-HHF Price: $2.19 |
| 9 |
112-7404 |
ANGLE-MOUNTING Price: $20.18 |
| 10 |
94-2413 |
NUT-U Price: $1.79 |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
117-2380-03 |
PANEL-SWITCHES, CONTROL ARM Price: $128.16 |
| 13 |
3290-409 |
RIVET Price: $0.34 |
| 14 |
108-7602 |
REST-ARM Price: $158.43 |
| 15 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 16 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 17 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 18 |
161-7350 |
IGNITION SWITCH ASM This part replaces 106-5269. Price: $56.32 |
| 19 |
100-8070 |
LAMP-WARNING Price: $38.50 |
| 20 |
100-8071 |
LAMP-WARNING Price: $38.50 |
| 21 |
110-0941 |
GAUGE-TEMPERATURE Price: $125.91 |
| 22 |
95-7652 |
LIGHT-INDICATOR Price: $45.99 |
| 23 |
2410-64 |
PLUG-BUTTON Price: $0.74 |
| 24 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 25 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 26 |
100-1535 |
SWITCH Price: $84.91 |
| 27 |
99-7420 |
PLUG-HOLE Price: $7.64 |
| 28 |
106-2027 |
SWITCH-INTERMITTENT Price: $71.05 |
| 29 |
95-8999 |
SWITCH Price: $42.14 |
| 30 |
130-1673 |
CABLE-THROTTLE This part replaces 115-9117. Price: $111.22 |
| 31 |
3290-134 |
SCREW Price: $0.27 |
| 32 |
110-8911 |
SEAL-FOAM Price: $1.69 |
| 33 |
99-7411 |
POINT-POWER Price: $30.69 |
| 34 |
99-7416 |
CAP Price: $6.64 |
| 35 |
93-9999 |
SWITCH-PTO Price: $42.99 |
| 36 |
115-9104 |
HARNESS-SEAT/CONSOLE Price: $593.17 |
| 37 |
110-0542 |
SPACER-FLANGE Price: $4.94 |
| 38 |
107069 |
CLIP Price: $1.79 |
| 39 |
161-8355 |
CUP HOLDER ASM This part replaces 117-2378. Price: $12.36 |
| 40 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 41 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 42 |
117-2384 |
DECAL-CONSOLE, LOWER Price: $18.49 |
| 43 |
117-2385 |
DECAL-CONSOLE, UPPER Price: $17.46 |
