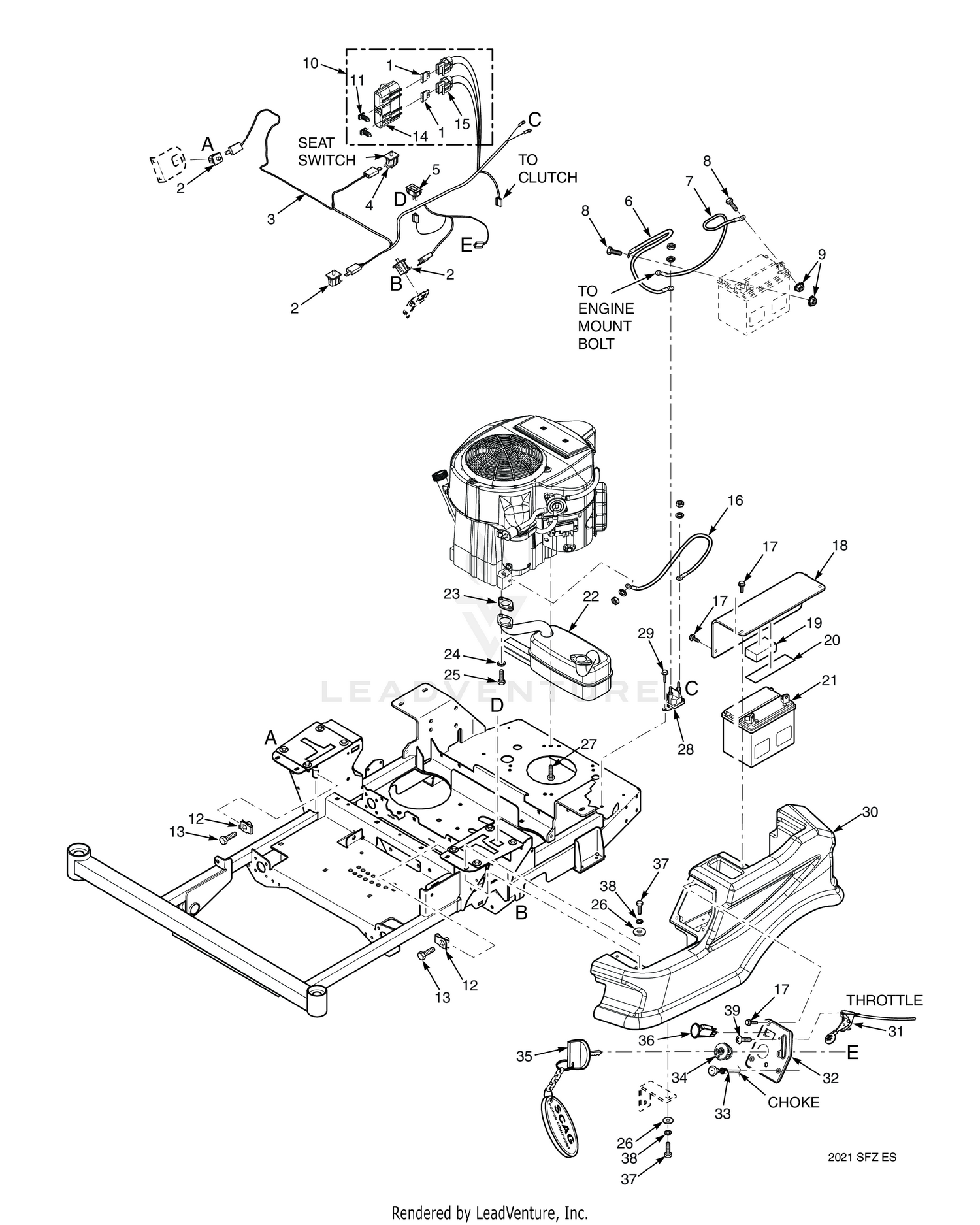

| Ref | Part Number | Description |
|---|
| 1 |
48298 |
FUSE, 20 AMP BLADE TYPE AUTOMOTIVE Price: Call Us |
| 2 |
483473 |
Switch, Double Pole - Plunger Price: Call Us |
| 3 |
486015 |
Wire Harness, Main Price: Call Us |
| 4 |
483473 |
Switch, Double Pole - Plunger Price: Call Us |
| 5 |
484565 |
Hour Meter, Inductive Price: Call Us |
| 6 |
48029-13 |
Battery Cable, 25" Red (Kawasaki) Price: Call Us |
| 7 |
48029-11 |
Battery Cable, 27" Black (35BV & 37BV-EFI) - Briggs & Stratton Price: Call Us |
| 8 |
04001-44 |
Bolt, Hex Head 1/4-20 x 1/2” Price: Call Us |
| 9 |
04020-02 |
Nut, 1/4 - 20 Hex Price: Call Us |
| 10 |
483642 |
Double Fuse Assy. Price: Call Us |
| 11 |
482588 |
Clip, Fuse Holder Price: Call Us |
| 12 |
04110-03 |
U-Nut, 3/8-16 (short) Price: Call Us |
| 13 |
04107-03 |
Bolt, Hex Head 3/8-16 x 1-1/4" with Thread Lock Patch Price: Call Us |
| 14 |
483571 |
Cover, Sealed Double Price: Call Us |
| 15 |
483629 |
Fuse Holder Assembly Price: Call Us |
| 16 |
48029-09 |
Battery Cable, Red 9" (Briggs & Stratton) Price: Call Us |
| 17 |
04017-04 |
CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 18 |
463319 |
Battery Cover (incl. items 19 & 20) Price: Call Us |
| 19 |
485506 |
Pad, Battery - Rubber Price: Call Us |
| 20 |
483508 |
Rubber Pad Price: Call Us |
| 22 |
485336 |
Muffler, Kohler KT Price: Call Us |
| 24 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 25 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 26 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 27 |
04011-07 |
Bolt, Hex Head Self-Tap 3/8-16 x 1-1/4" (Kohler x3 - 25EFI, Kohler x4 - 29EFI) Price: Call Us |
| 28 |
483278 |
Solenoid, Sealed (Briggs & Stratton) Price: Call Us |
| 29 |
04011-29 |
Screw, 1/4-20 x .375" (52H) Price: Call Us |
| 30 |
463301 |
Tank Console 48 Price: Call Us |
| 31 |
483645 |
Throttle Control, Kawasaki Price: Call Us |
| 32 |
462322 |
INSTR PANEL W/ DECAL, SFZ Price: Call Us |
| 33 |
483646 |
Choke Control, Kawasaki Price: Call Us |
| 34 |
483472 |
Ignition Switch Price: Call Us |
| 35 |
462069 |
Key, Assembly w/Fob Price: Call Us |
| 36 |
485833 |
Switch, PTO - 10 Amp Price: Call Us |
| 37 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 38 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
