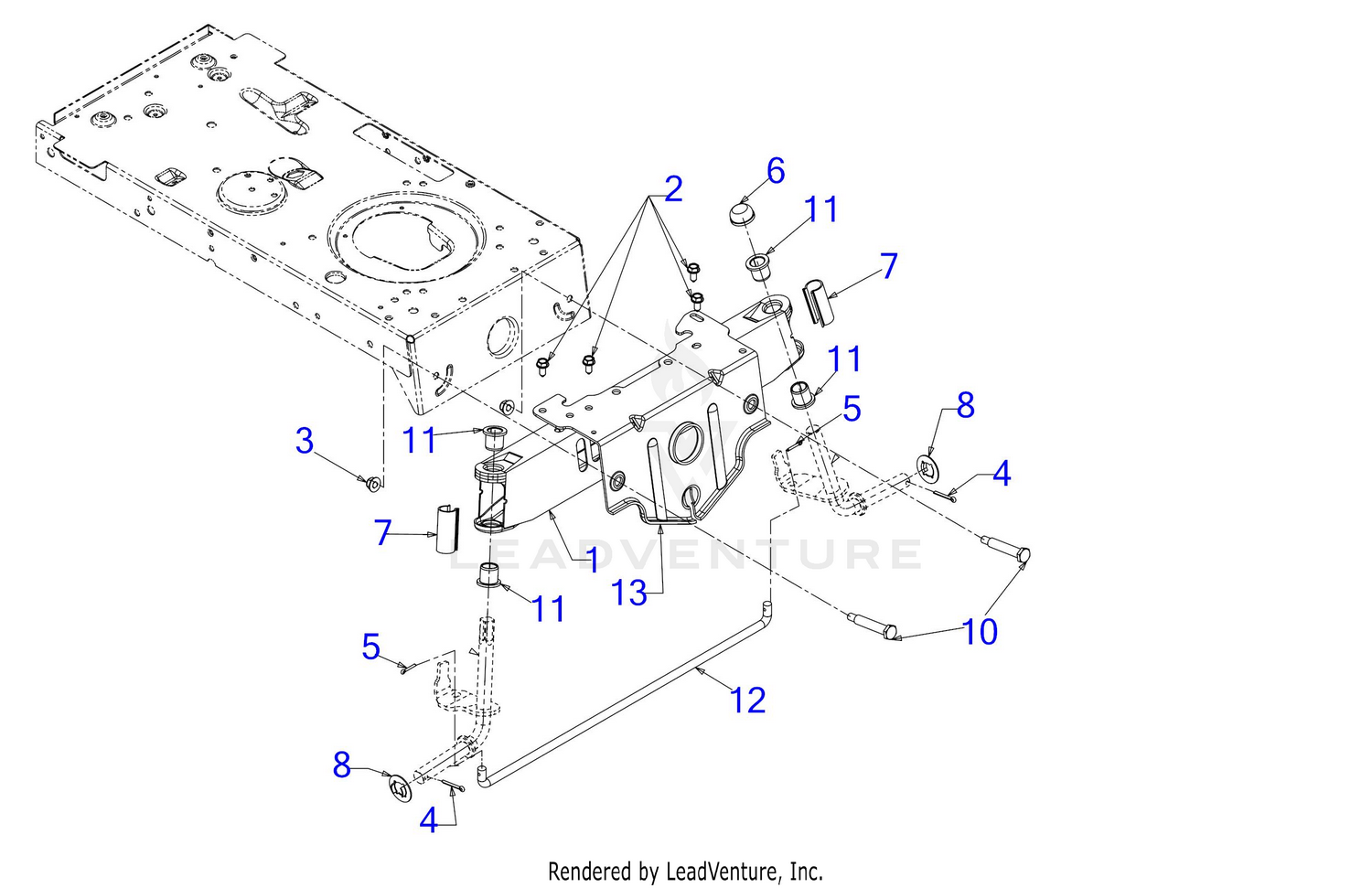

Pivot Bar
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 710-04484 | SCREW 5/16-18 x .750 Price: $3.19 |
| 3 | 712-04065 | NUT Price: $3.68 |
| 4 | 714-0162 | COTTER PIN-5/32 DIA Price: $4.29 |
| 5 | 914-0474 | COTTER PIN Price: $4.08 |
| 6 | 726-0341 | CAP Price: $4.26 |
| 7 | 731-04057A | AXLE CAP Price: $4.59 |
| 8 | 736-04228B | FLAT WASHER .781 ID x1.590 OD This part replaces 736-04228A. Price: $4.59 |
| 10 | 738-04128 | SHOULDER SCREW .500X2.38X3/8-16 Price: $6.67 |
| 11 | 741-0660A | FLANGE BEARING .760 ID Price: $2.92 |
| 12 | 747-04299A | FIXED TIE ROD Price: $26.83 |
