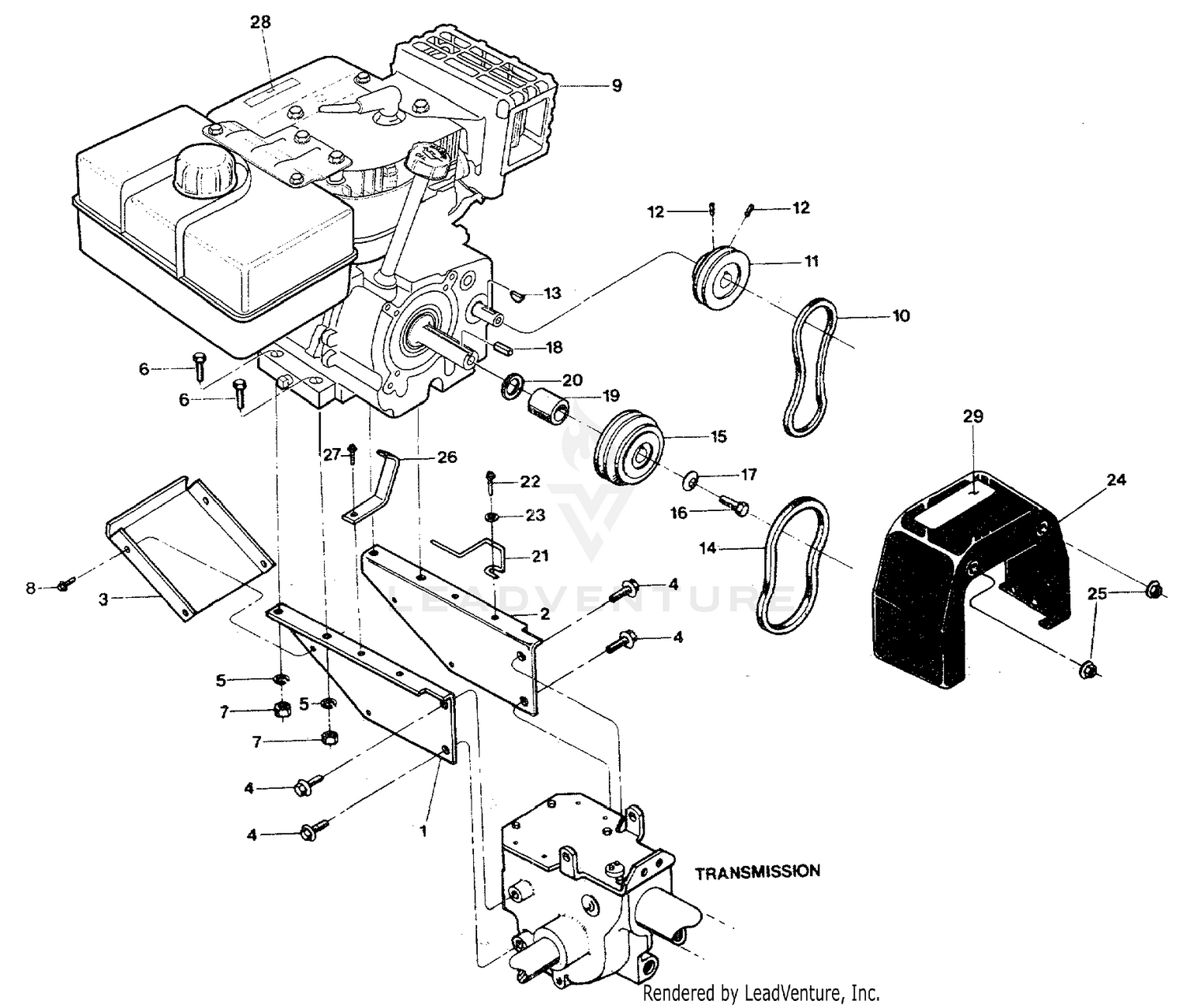

| Ref | Part Number | Description |
|---|
| 1 |
1916604001 |
SUPPORT BRACKET, LEFT SIDE Not Available Price: |
| 2 |
1916602001 |
SUPPORT BRACKET-ENGINE, RIGHT SIDE Not Available Price: |
| 3 |
786-04080-0638 |
Belts/Pulleys Guard This part replaces 1916189001. Price: $18.41 |
| 4 |
710-04043 |
SCREW 5/16-18 This part replaces GW-1186329. Price: $3.96 |
| 5 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 7 |
1186321 |
Nut-hex, 5/16-18 Price: Call Us |
| 8 |
1900396 |
SCREW-HW M10-32X.5 Not Available Price: |
| 10 |
GW-9022 |
Flat Belt-reverse drive Price: $26.51 |
| 11 |
GW-2477 |
REVERSE PULLEY-ENGINE DRIVEN Not Available Price: |
| 13 |
9361 |
Key-Woodruff (size #5) Price: Call Us |
| 14 |
954-04094 |
Forward Clutch Belt This part replaces 1909404. Price: $28.34 |
| 15 |
GW-2476 |
Forward Pulley-engine drive, for V-Belt (Ref. No. 14) Price: Call Us |
| 17 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces 9944. Price: $5.94 |
| 18 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 19 |
GW-50141 |
SPACER Not Available Price: |
| 20 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 21 |
1916190001 |
BELT GUIDE-FORWARD DRIVE BELT Not Available Price: |
| 23 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces GW-9900. Price: $5.94 |
| 25 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 26 |
1916191001 |
BELT GUIDE-REVERSE DRIVE BELT Not Available Price: |
| 28 |
1900766 |
DECAL-STARTING STA Not Available Price: |
| 29 |
1904557 |
DECAL-WARNING BELT Not Available Price: |
