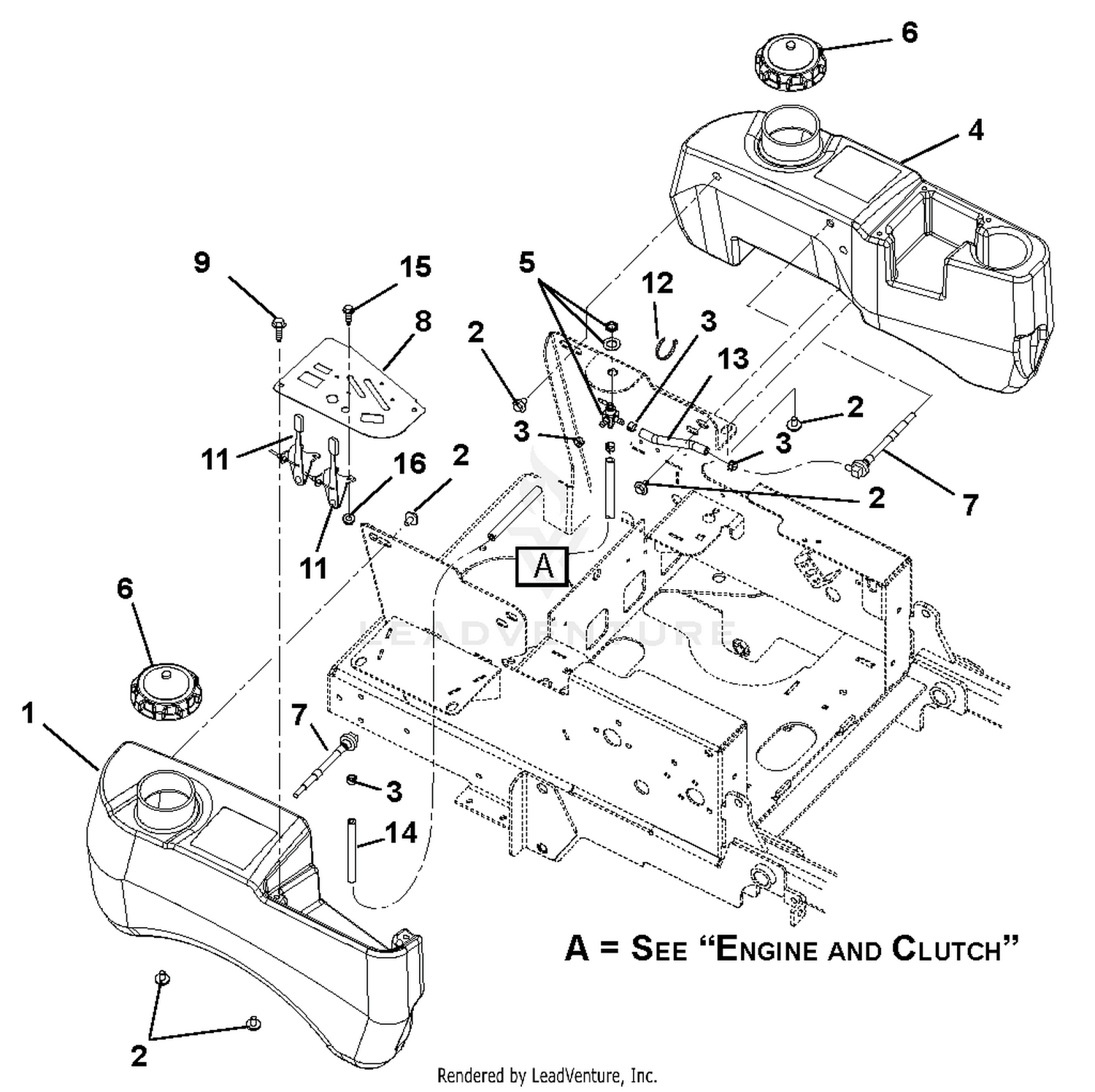

Fuel Tanks And Hoses
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 07000018 | BOLT, SEMS .31-18 X .62 Price: $3.45 |
| 3 | 03278800 | CLAMP, FUEL LINE Price: $0.95 |
| 5 | 09258200 | VALVE, FUEL Price: $42.95 |
| 7 | 04320900 | ASM, FUEL PICK-UP SML/MED TANK This part replaces 03900300. Price: $35.95 |
| 8 | 00453951 | PANEL, CONTROL IZ - BLACK Price: $20.95 |
| 9 | 06100137 | SCR-MCH 10-24X.50 HWHSTAINLESS Price: $2.45 |
| 12 | 07517300 | CABLE TIE LG 5-1/2 Price: $2.95 |
| 15 | 05901825 | BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
