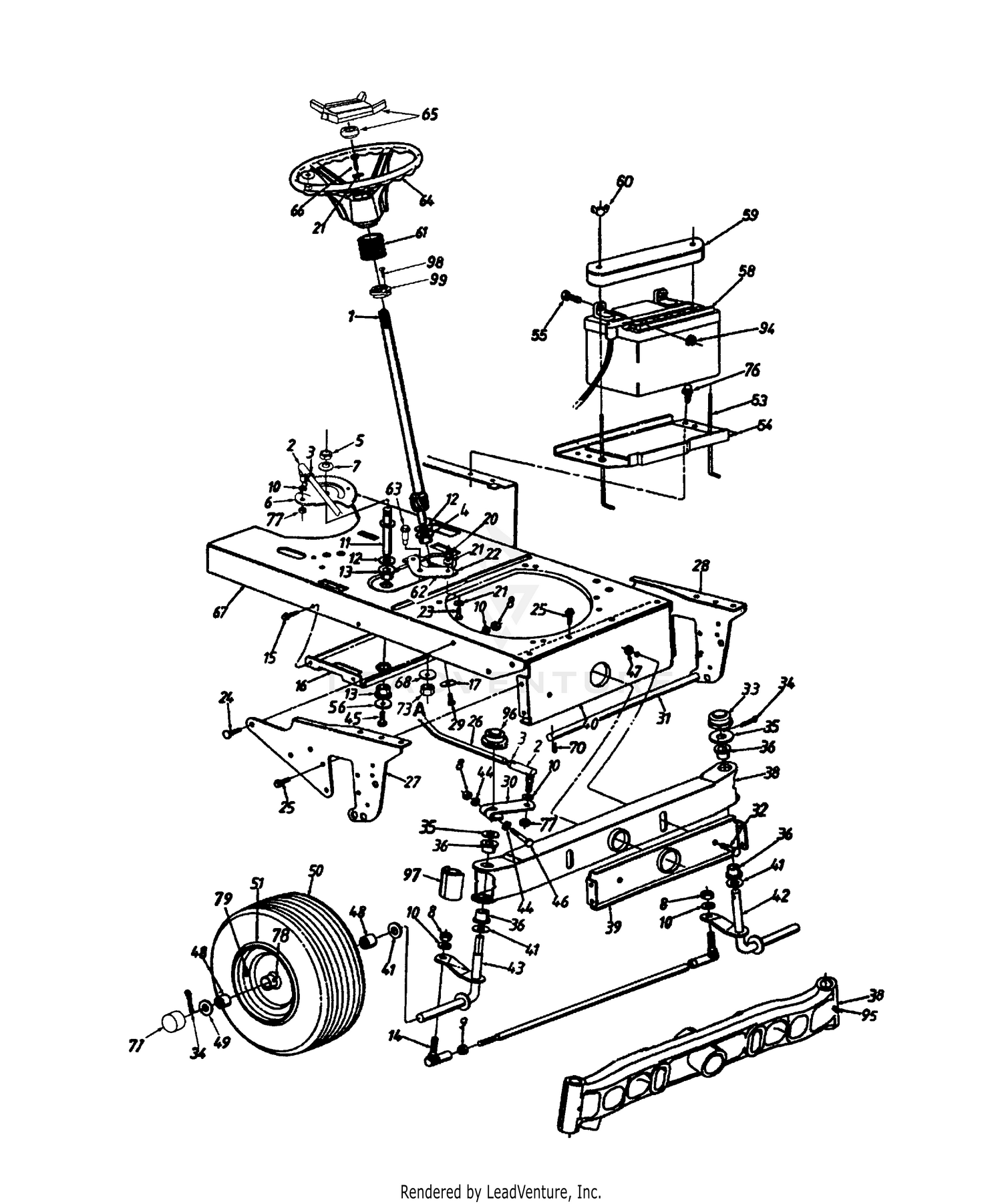

| Ref | Part Number | Description |
|---|
| 2 |
923-0448A |
Ball Joints This part replaces 723-0448. Price: $22.55 |
| 3 |
912-0240 |
Hex Jam Nut 7/16-20 This part replaces 712-0240. Price: $3.90 |
| 4 |
941-0656A |
BRG:HEX FLNG 5/8 This part replaces 741-0656. Price: $4.69 |
| 5 |
712-0318 |
HEX JAM NUT 5/8-18 Not Available Price: |
| 7 |
736-0317 |
Bell-Wash. 5/8" I.D. x 1.25" O.D. Price: $6.99 |
| 8 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 9 |
712-0711 |
Hex Jam Nut 3/8-24 Thd. Price: $3.90 |
| 11 |
738-0768 |
STEERING SEGMENT Not Available Price: |
| 12 |
736-0187 |
Fl-Wash. .64" I.D. x 1.24" O.D. Price: $4.02 |
| 13 |
948-0227A |
Hex Flange Bearing Bronze .625" I.D. This part replaces 748-0227A. Price: $7.61 |
| 14 |
923-3018 |
Ball Joint, 3/8-24 This part replaces 723-3018. Price: $15.50 |
| 15 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 16 |
16888A-0637 |
IDLER BRACKET Not Available This part replaces 16888A. Price: |
| 20 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 21 |
736-0242 |
Bell-Wash. .345" I.D. x .88" O.D. Price: $3.75 |
| 22 |
16894 |
BRACKET-BE Not Available Price: |
| 23 |
710-0157 |
Hex Bolt 5/16-24 x .75" Lg. Price: $3.90 |
| 24 |
710-0793 |
SCREW 3/8-24 x .80 Not Available Price: |
| 25 |
710-0604A |
Screw, 5/16-18 x .625 This part replaces 710-0604. Price: $3.96 |
| 27 |
783-0338 |
PIVOT SUPPORT BRACKET (RH) Not Available Price: |
| 28 |
783-0337 |
PIVOT SUPPORT BRACKET (LH) Not Available Price: |
| 29 |
710-1309 |
Pan Hd. Scr. 5/16-18 x .62" Lg. Price: $3.86 |
| 30 |
983-0061A-0637 |
STEERING ARM ASSEMBLY BLACK Not Available This part replaces 983-0061A. Price: |
| 31 |
738-0777A |
ROD-DECK CONNECTING Not Available Price: |
| 32 |
738-0527 |
Shld. Bolt .498" Dia. x 2.45" Lg. Price: $7.90 |
| 33 |
931-0484A |
Hub Cap This part replaces 731-0484A. Price: $5.98 |
| 34 |
914-0121 |
COTTER PIN-5/32 DIA x 1.00 Not Available This part replaces 714-0121. Price: |
| 35 |
736-0316 |
Flat Washer Price: $4.02 |
| 38 |
683-0128B-0637 |
Pivot Axle - Powder Black This part replaces 683-0128. Price: $85.22 |
| 39 |
16889A-0637 |
PIVOT SUPPORT BRACKET BLACK Not Available This part replaces 16889A. Price: |
| 40 |
16890A-0637 |
Pivot Bar Support Brkt.-Rear Not Available This part replaces 16890A. Price: |
| 41 |
736-0188 |
Fl-Wash. .76" I.D. x 1.49" O.D. Price: $3.75 |
| 42 |
638-0007A |
AXLE ASSEMBLY LH: FRONT Not Available Price: |
| 43 |
938-0008A |
AXLE ASSEMBLY (RH) Not Available This part replaces 638-0008A. Price: |
| 44 |
936-0286 |
Bowed Washer This part replaces 736-0286. Price: $6.01 |
| 45 |
710-0538 |
Hex L-Scr. 5/16-18 x .62" Lg. Price: $4.02 |
| 46 |
710-0331 |
Hex Bolt 3/8-24 x 2.25" Lg. Price: $6.01 |
| 48 |
741-0516B |
FLANGE BEARING This part replaces 741-0516. Price: $5.64 |
| 49 |
736-0316 |
Fl-Wash. .71" I.D. x 1.5" O.D. Price: $4.02 |
| 50 |
634-0084 |
WHEEL ASSEMBLY (16 x 6.5 x 8) Not Available Price: |
| 51 |
934-0067 |
RIM Not Available This part replaces 634-0067. Price: |
| 53 |
911-0222A |
HOLD DOWN BATTERY ROD Not Available This part replaces 711-0222A. Price: |
| 55 |
710-3015 |
Hex Bolt 1/4-20 x .75" Lg. (Gr. 5) Price: $3.65 |
| 56 |
736-0343 |
Fl-Wash. .33" I.D. x 1.25" O.D. Price: $3.90 |
| 59 |
731-1683 |
BATTERY COVER Not Available Price: |
| 60 |
712-3087 |
WING NUT 1/4-20 Price: $3.53 |
| 63 |
738-0966A |
Shoulder Screw, .50 x .925, 3/8-16 This part replaces 738-0966. Price: $4.08 |
| 64 |
931-0027A |
Steering Wheel (4 Spoke) This part replaces 631-0027. Price: $85.70 |
| 66 |
710-0643 |
Hex L-Bolt 5/16-18 x 1" Lg. Price: $5.99 |
| 68 |
736-0452 |
Bell-Wash. .396" I.D. x 1.14" O.D. Price: $4.05 |
| 70 |
714-0149B |
Internal Cotter Pin Price: $3.95 |
| 73 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 76 |
710-0896 |
Hex Wash. B-Tap Scr. 1/4 x .62" Lg. Price: $3.86 |
| 77 |
712-0262 |
Hex Jam L-Nut 3/8-24 Thd. Price: $3.90 |
| 78 |
737-0280 |
GREASE FITTING (SLOTTED) Price: $6.84 |
| 79 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 94 |
712-0291 |
Hex L-Nut 1/4-20 Thd. Price: $3.93 |
| 96 |
726-0341 |
Cap Price: $4.26 |
| 97 |
931-1291A |
End Cap, Pivot Bar (w/ Fitting) This part replaces 731-1291A. Price: $13.96 |
