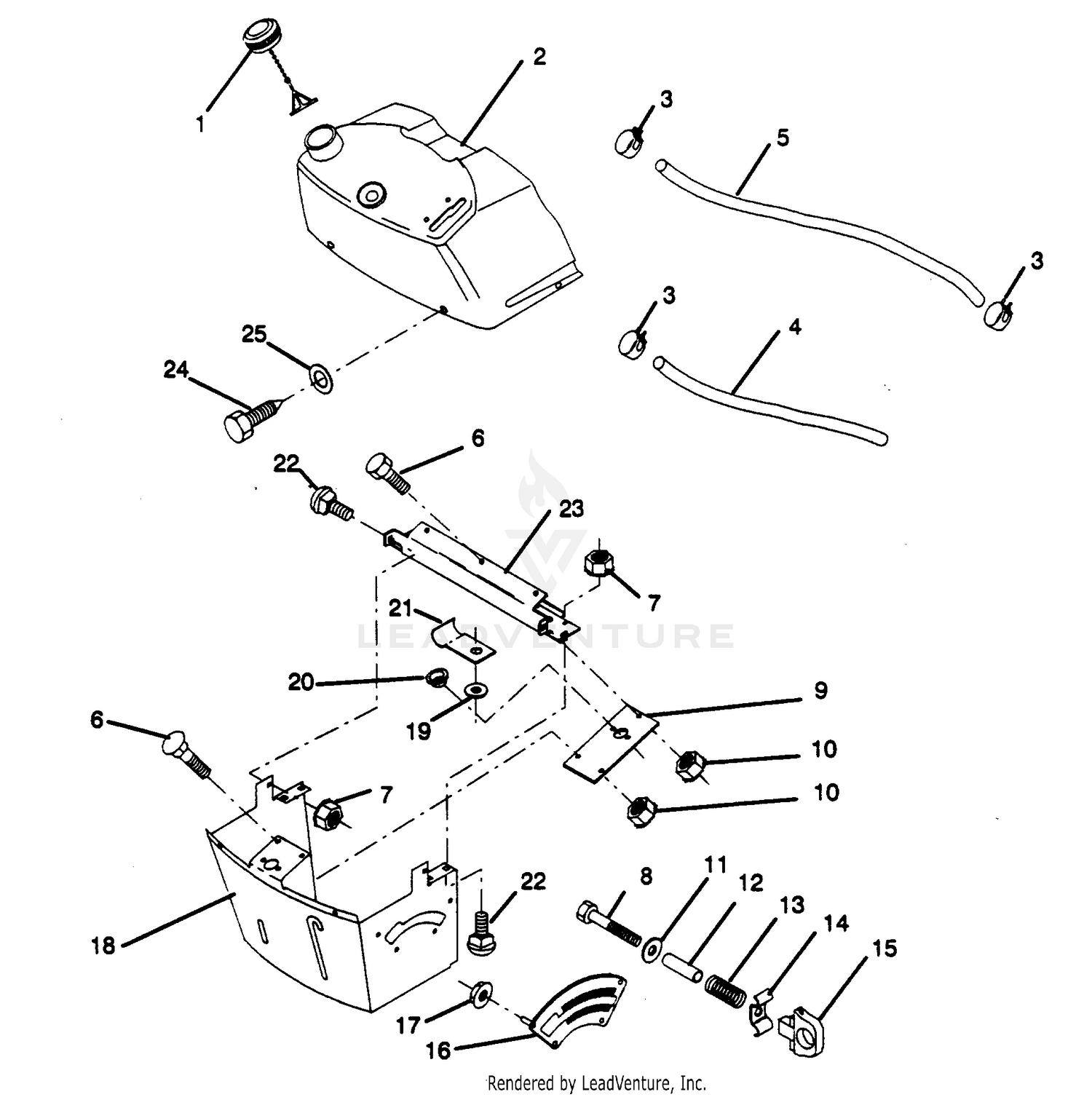

| Ref | Part Number | Description |
|---|
| 1 |
581075501 |
CAP.FUEL.TANK.SS/SNO.EPA.DOME This part replaces 532122015. Price: $14.99 |
| 1 |
95-7522 |
AXLE Price: $377.20 |
| 2 |
532124540 |
Assembly, Dash & Fuel Tank Price: $63.71 |
| 2 |
99-7564 |
SEAL-OIL Price: $25.36 |
| 3 |
532123487 |
Clamp, Hose Price: $3.99 |
| 3 |
95-7544 |
CLIP Price: $4.04 |
| 4 |
532008548 |
Line, Fuel Price: $2.99 |
| 4 |
95-7523 |
SPACER Price: $26.89 |
| 5 |
532000295 |
FUEL LINE This part replaces 532008544. Price: $5.74 |
| 5 |
99-7555 |
SHIM 0.3 Price: $3.29 |
| 5 |
99-7556 |
SHIM 0.2 Price: $3.29 |
| 5 |
99-7557 |
SHIM 0.5 Price: $3.37 |
| 6 |
874780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 This part replaces 874780412. Price: $3.99 |
| 6 |
95-7524 |
GEAR-BEVEL, 29 TOOTH Price: $222.95 |
| 7 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 7 |
99-7534 |
BEARING-BALL Price: $65.44 |
| 8 |
874760432 |
Bolt, Fin. Hex 1/4-20 x 1 1/2 Price: $3.99 |
| 8 |
95-7521 |
COVER-AXLE Price: $107.87 |
| 9 |
106-1071 |
O-RING This part replaces 99-7538. Price: $18.43 |
| 9 |
532130051 |
Plate, Support Price: $20.99 |
| 10 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873690400. Price: $2.69 |
| 10 |
93-7775 |
BEARING-BALL This part replaces 99-7561. Price: $127.75 |
| 11 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02 |
| 11 |
99-7539 |
CLIP Price: $11.07 |
| 12 |
104-2374 |
BOLT This part replaces 99-7596. Price: $6.33 |
| 12 |
532123494 |
Spacer, Split Price: $2.38 |
| 13 |
532002876 |
SPRING This part replaces 532124874. Price: $3.99 |
| 14 |
532123493 |
Knob, Height Retainer Price: $2.38 |
| 15 |
532126115 |
Knob, Height Stop Price: $3.99 |
| 16 |
532122023 |
Adjustment, Quadrant Height Price: $9.99 |
| 17 |
532124346 |
Nut, Self Thread 3/16-18 Price: $3.99 |
| 18 |
532121789 |
Support, Dash Price: $47.06 |
| 19 |
734115201 |
WASHER - M6 This part replaces 819091216. Price: $1.99 |
| 20 |
532009151 |
SNAP BUSHING T This part replaces 532110436. Price: $2.99 |
| 21 |
532002751 |
Clip Line Fuel 13/32 Mtg Hole This part replaces 532124996. Price: $2.42 |
| 22 |
872110404 |
Bolt, Carriage 1/4-20 x 1/2 Gr.5 Price: $3.99 |
| 23 |
532122016 |
Brace, Cross Price: $17.57 |
| 24 |
818000408 |
Screw, Self-Tapping 1/4-20 x 1/2 This part replaces 532130052. Price: $3.99 |
