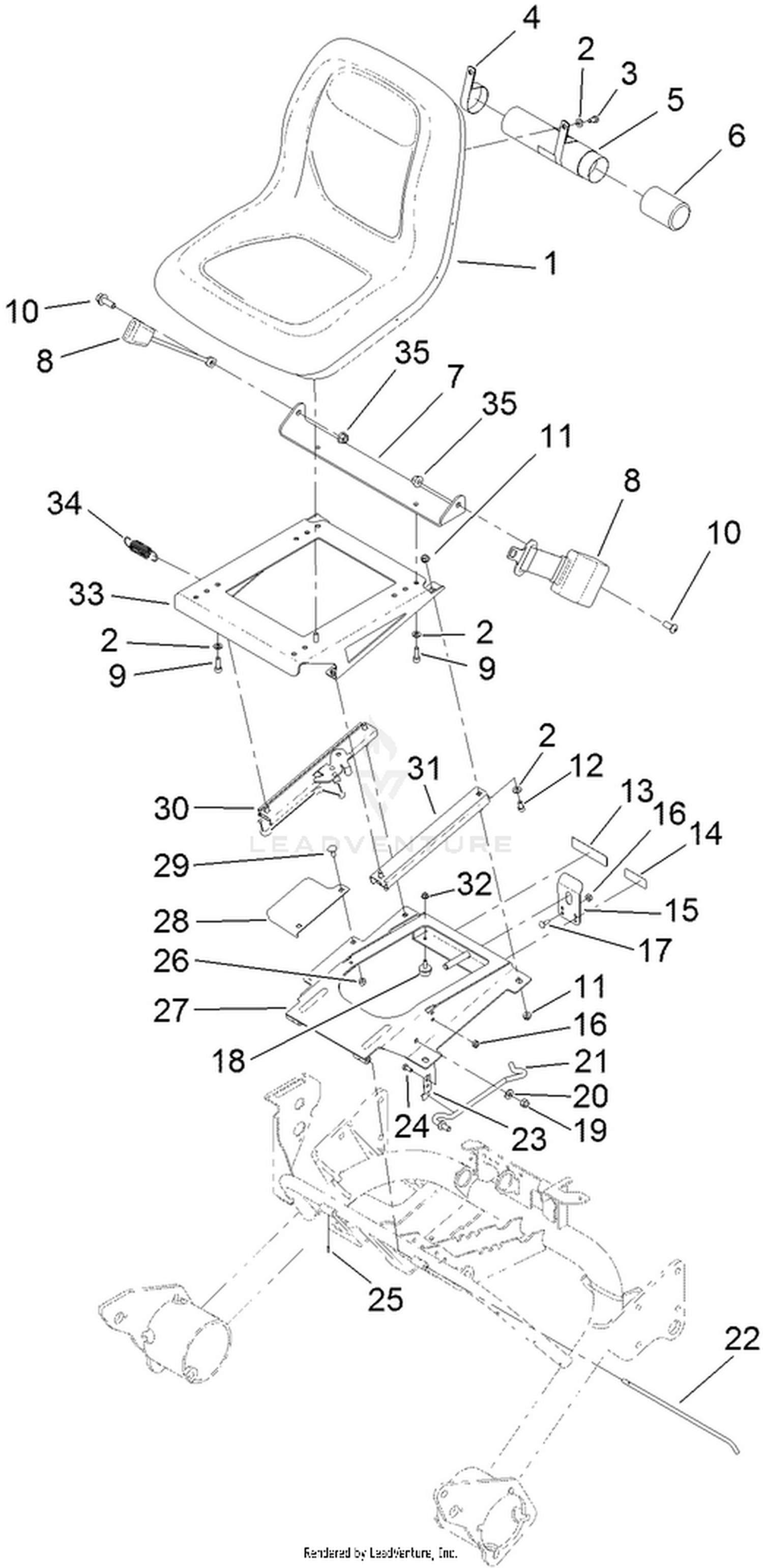

| Ref | Part Number | Description |
|---|
| 1 |
112-2923 |
SEAT ASM Price: $290.09 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 3 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 4 |
2412-133 |
CLAMP-R Price: $3.19 |
| 5 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 6 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 7 |
119-0727-03 |
BRACKET-BELT, SEAT Price: $38.10 |
| 8 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 9 |
98-5828 |
SCREW-HSH Price: $13.11 |
| 10 |
3274-105 |
SCREW-HSBH Price: $7.79 |
| 11 |
32128-25 |
NUT-HF Price: $3.19 |
| 12 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 13 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 14 |
93-6686 |
DECAL-OIL, HYD Price: $7.01 |
| 15 |
66-2630 |
LATCH-SEAT Price: $18.77 |
| 16 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 17 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 18 |
1-523420 |
BUMPER Price: $13.99 |
| 19 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 20 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 21 |
106-4643 |
ROD-PROP, SEAT Price: $29.78 |
| 22 |
105-0483 |
ROD-PIVOT, SEAT Price: $24.20 |
| 23 |
68-5310 |
CLIP-ROD, PROP Price: $6.35 |
| 24 |
321-3 |
SCREW-HH Price: $0.28 |
| 25 |
32121-7 |
PIN-ROLL, SLOTTED Price: $0.31 |
| 26 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 27 |
105-0464-03 |
PLATE-SEAT Price: $308.71 |
| 28 |
105-8284-03 |
SHIELD-VALVE Price: $21.17 |
| 29 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 30 |
105-8265 |
ADJUSTER-SEAT Price: $122.06 |
| 31 |
51-0780 |
SLIDER-SEAT Price: $116.02 |
| 32 |
32128-33 |
NUT-HF Price: $0.25 |
| 33 |
105-0466-03 |
PLATE-SEAT, UPPER Price: $212.76 |
| 34 |
88-6330 |
SPRING-EXTENSION Price: $7.99 |
