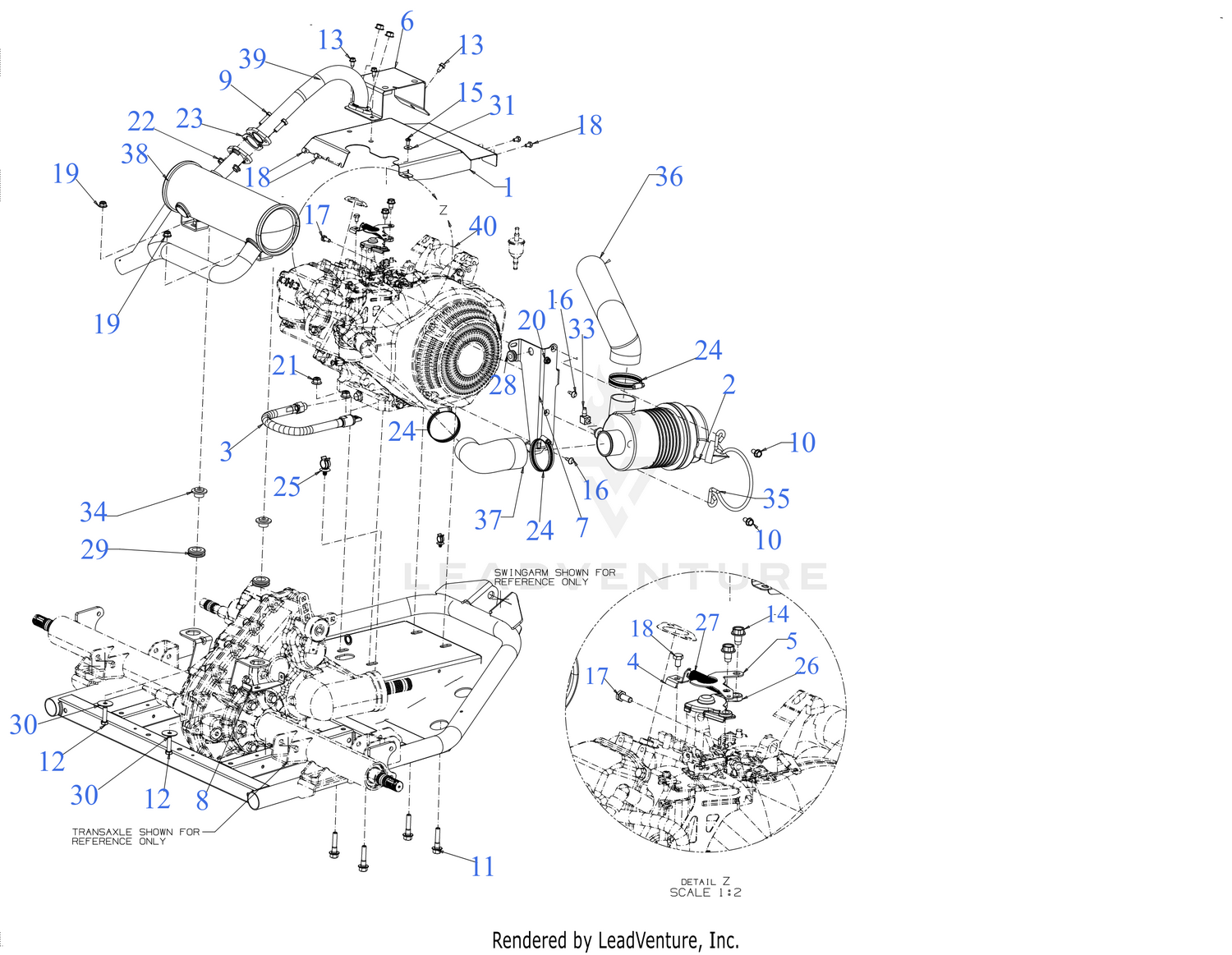

| Ref | Part Number | Description |
|---|
| 1 |
607E05151 |
ENGINE COVER ASSEMBLY Price: $69.26 |
| 2 |
951-05361A |
AIR CLEANER FILTER ASSEMBLY Price: $155.12 |
| 3 |
651-05527 |
OIL DRAIN HOSE ASSEMBLY M14-1.5MM Price: $47.38 |
| 4 |
707Z06590 |
SPRING RETENSION BRACKET Price: $20.42 |
| 5 |
707Z06608B |
THROTTLE MOUNTING BRACKET Price: $5.07 |
| 6 |
707E06642A |
AIR INLET COVER Price: $46.23 |
| 8 |
707E06944 |
THROTTLE MOUNTING BRACKET Price: $14.21 |
| 9 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 10 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 11 |
710-04640 |
SCREW 3/8-18 x 1.75 GR5 Price: $3.63 |
| 12 |
710-0528 |
SCREW 5/16-18 x 1.25 GR5 Price: $3.90 |
| 13 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 14 |
710-0607 |
SCREW 5/16-18 x .500 Price: $6.06 |
| 15 |
710-06085 |
SCREW M5-.8X10MM SLOT/TORX Not Available Price: |
| 16 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 17 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 18 |
710-3209 |
SCREW M6-1.0X10MM GR8.8 Price: $7.30 |
| 19 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 20 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 21 |
712-04065 |
NUT Price: $3.68 |
| 22 |
712-04339 |
FLANGE NUT Price: $3.37 |
| 23 |
BS-692236 |
EXHAUST GASKET Price: $4.66 |
| 24 |
726-05192 |
HOSE CLAMP (1.31-2.25) Price: $6.11 |
| 25 |
731-10746A |
DRAIN HOSE CLIP Price: $6.51 |
| 26 |
731-12266 |
CONTROL PANEL COVER Price: $4.59 |
| 27 |
732-04973 |
EXTENSION SPRING Price: $3.86 |
| 28 |
735-0225 |
GROMMET Not Available Price: |
| 29 |
735-05178 |
GROMMET .75 x 1.063 x .4375 Price: $3.60 |
| 30 |
736-0362 |
FLAT WASHER .322 ID x 1.25 x .060 Price: $3.93 |
| 31 |
736-04424 |
WASHER Not Available Price: |
| 34 |
738-05088 |
SHOULDER SPACER .750 x .145 Price: $3.86 |
| 35 |
747-06691 |
AIR FILTER STRAP ROD Price: $17.32 |
| 36 |
751-10995 |
AIR INLET HOSE Price: $43.87 |
| 37 |
751-15289 |
AIR FILTER INTAKE HOSE Price: $37.21 |
| 38 |
751-15344 |
MUFFLER Price: $281.79 |
| 39 |
751-15346 |
EXHAUST PIPE Price: $55.64 |
| 40 |
SB-EX400VP6100 |
COMPLETE ENGINE LTV Not Available Price: |
