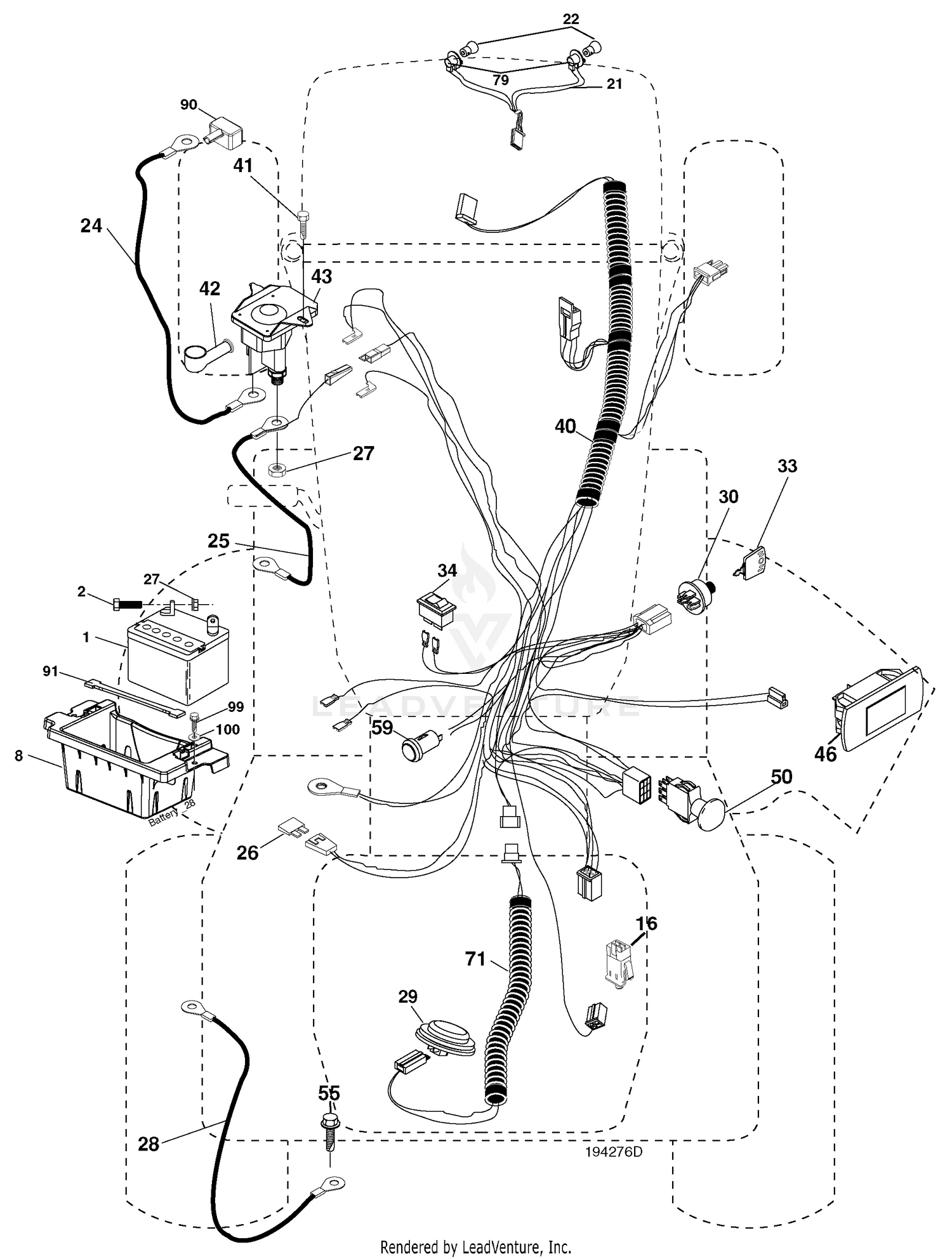

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 1 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 2 |
74760412 |
Bolt Hex Head 1/4-20 x 3/4 Price: Call Us |
| 2 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 3 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 4 |
99-6970-03 |
SUPPORT-RADIATOR Price: $250.42 |
| 5 |
104-1418 |
STRIP-FOAM, RADIATOR Price: $23.57 |
| 6 |
99-6936 |
RADIATOR Price: $1,331.21 |
| 7 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 8 |
186491 |
Box Battery Price: Call Us |
| 8 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 9 |
109-0276 |
HOSE-FUEL This part replaces 104-0079. Price: $24.99 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
99-6939 |
SHROUD-FAN Price: $256.71 |
| 12 |
3290-271 |
RIVET-POP Price: $0.25 |
| 13 |
98-9335 |
PLATE-WARNING, FAN Price: $6.17 |
| 14 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 15 |
321-4 |
SCREW-HH Price: $0.99 |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 16 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 17 |
104-0013 |
HOSE-RADIATOR, UPPER Price: $111.97 |
| 18 |
104-0014 |
HOSE-RADIATOR, LOWER Price: $68.34 |
| 19 |
66-3180 |
TUBE-VENT Price: $18.60 |
| 20 |
32128-20 |
NUT-HF Price: $0.99 |
| 21 |
175688 |
Harness Socket Light W/4152J Price: Call Us |
| 21 |
2412-103 |
CLAMP Price: $2.51 |
| 22 |
304-46 |
DRAINCOCK Price: $7.55 |
| 22 |
4152J |
Bulb Light Price: Call Us |
| 23 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 24 |
400253 |
Cable Battery Price: Call Us |
| 25 |
117-3276 |
DECAL-DANGER This part replaces 93-7840. Price: $10.70 |
| 25 |
198893 |
Cable Start Red 17.5" Price: Call Us |
| 26 |
175158 |
Fuse Price: Call Us |
| 26 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 27 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
145491 |
Cable, Ground Price: Call Us |
| 28 |
99-6991 |
LH COOLER MOUNT ASM Price: $106.70 |
| 29 |
401545 |
Switch, Seat Price: Call Us |
| 29 |
99-6994 |
RH COOLER MOUNT ASM Price: $106.70 |
| 30 |
104-1448 |
HOOP-DRIVELINE Price: $23.07 |
| 30 |
193350 |
Switch, Ignition Price: Call Us |
| 31 |
3256-55 |
WASHER-FLAT Price: $3.69 |
| 33 |
140401 |
Key, Ignition Price: Call Us |
| 34 |
110712X |
Switch Light / Reset Price: Call Us |
| 40 |
194276 |
Harness Ignition Price: Call Us |
| 41 |
17720408 |
Screw Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover, Terminal Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 46 |
198138 |
Gauge Hourmeter Price: Call Us |
| 50 |
174651 |
Switch, PTO Price: Call Us |
| 55 |
17490512 |
Screw Thdrol 5/16-18 x 3/4 TYTT Price: Call Us |
| 59 |
400303 |
Outlet 12-Volt Price: Call Us |
| 71 |
400260 |
Harness Ign. Dash Price: Call Us |
| 79 |
175242 |
Bulbholder Asm. Incan Descent Price: Call Us |
| 90 |
180449 |
Cover Terminal Battery Price: Call Us |
| 91 |
190270 |
Strap Battery Mount Front Price: Call Us |
| 99 |
17670412 |
Screw Hexwsh Thdrol 1/4-20 x 3/4 Price: Call Us |
