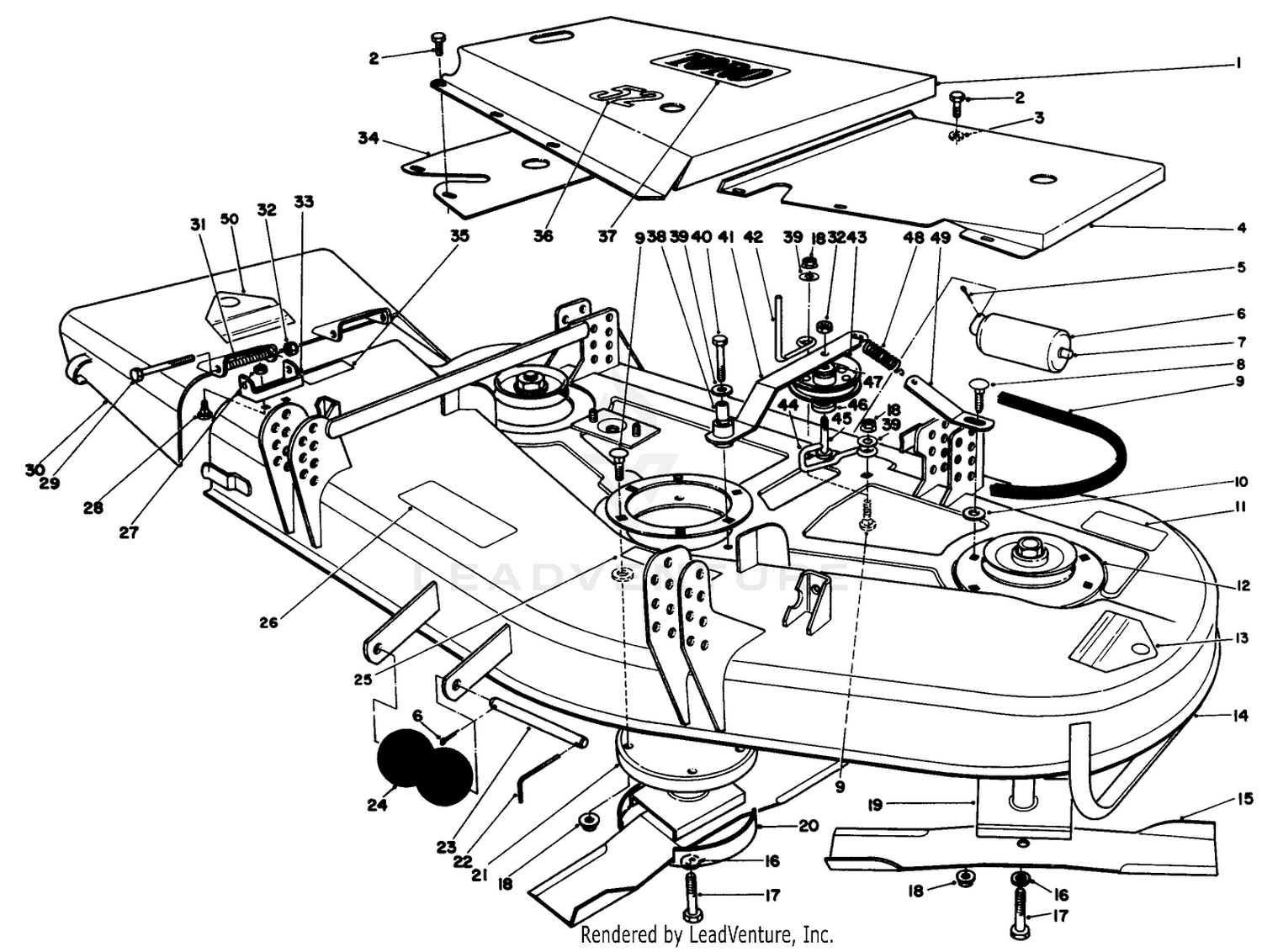

| Ref | Part Number | Description |
|---|
| 1 |
51-3930 |
CENTER COVER WA 52 *R Price: $199.59 |
| 2 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
51-3910-01 |
LH COVER ASM This part replaces 51-3910. Price: $176.84 |
| 5 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 6 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 7 |
40-0340 |
SHAFT-ROLLER, REAR Price: $29.99 |
| 8 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 9 |
27-1160 |
V-BELT Price: $51.80 |
| 10 |
3256-2 |
WASHER-FLAT Price: $0.39 |
| 11 |
68-8340 |
DECAL-TORQUE Price: $19.99 |
| 12 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 13 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 14 |
13-3959 |
Deck Assembly (Incl. Ref. #11, 13, 25 26) Price: Call Us |
| 15 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 16 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 17 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 18 |
32128-21 |
NUT-HF Price: $0.39 |
| 19 |
27-0870 |
SPINDLE ASM Price: $470.99 |
| 20 |
72-9361 |
CUP-SCALP, ANTI This part replaces 27-1000. Price: $39.78 |
| 21 |
54-7781 |
HOUSING - SPINDLE ASM Price: $607.52 |
| 22 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 23 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 24 |
29-4820 |
ROLLER Price: $14.88 |
| 25 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 26 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 27 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 28 |
3230-18 |
SCREW-CARR Price: $4.09 |
| 29 |
3211-15 |
SCREW-HH Price: $7.99 |
| 30 |
13-3949 |
DEFLECTOR ASM Price: $214.07 |
| 31 |
40-6230 |
SPRING Price: $37.99 |
| 32 |
3296-5 |
NUT-HEX Price: $3.09 |
| 33 |
29-5590-03 |
BRACKET-PIVOT This part replaces 29-5590. Price: $23.25 |
| 34 |
51-3890 |
Cover Price: Call Us |
| 35 |
66-6380 |
DECAL-DANGER Price: $8.97 |
| 36 |
51-3960 |
DECAL Price: $24.99 |
| 37 |
62-7400 |
DECAL Price: $24.54 |
| 38 |
51-3640 |
SLEEVE Price: $9.66 |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
323-11 |
SCREW-HH Price: $1.08 |
| 41 |
55-7640-03 |
IDLER ARM ASM This part replaces 55-7640. Price: $72.99 |
| 42 |
52-4780 |
ROD-BELT Price: $13.99 |
| 43 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 44 |
55-7620 |
GUIDE-BELT Price: $42.10 |
| 45 |
3211-8 |
SCREW-HH This part replaces 55-7630. Price: $3.50 |
| 46 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 47 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 48 |
51-3650 |
SPRING-EXTENSION Price: $10.93 |
| 49 |
55-7650 |
PLATE-SPRING Price: $19.99 |
| 50 |
93-1122 |
DECAL-DANGER This part replaces 54-9220. Price: $8.99 |
