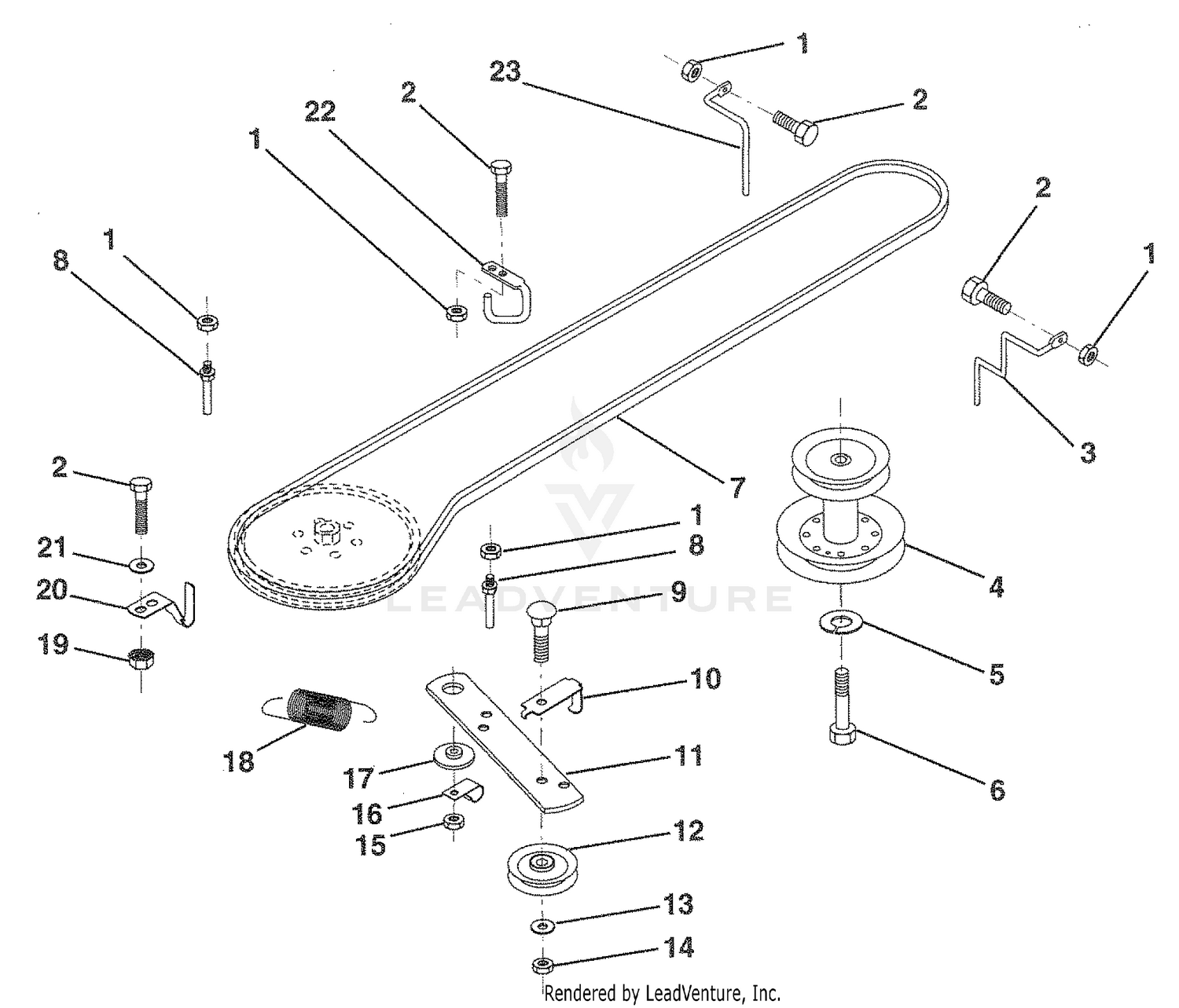

| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 1 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 2 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 3 |
532131205 |
KEEPER MWR DRV RH Price: $6.79 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 4 |
532138029 |
PULLEY.ENGINE.36/38 LR Price: $48.99 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 5 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 6 |
871170744 |
Bolt, Fin. Hex 7/16-20 Price: $2.99 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 7 |
532124525 |
BELT Price: $39.99 |
| 8 |
532156109 |
BELT KEEPER KIT This part replaces 532123405. Price: $3.99 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
872140612 |
Bolt, Carr. 3/8-16 UNC x 1-1/2 Price: $2.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 10 |
532123398 |
Keeper, Beit Ground Drive Idler Price: Call Us |
| 11 |
532140911 |
ARM/GROUND DRIVE CLUTCH This part replaces 532123395. Price: $4.35 |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 12 |
532123674 |
PULLEY.IDLER.FLAT Price: $24.99 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 13 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 14 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 15 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 16 |
532126471 |
CLIP,INSULATOR Price: $3.99 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 17 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 18 |
532131459 |
SPRING.EXTENSION Price: $4.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 19 |
596040501 |
Hardware This part replaces 873510500. Price: $2.99 |
| 20 |
532139919 |
KEEPER-T/A GROUND DRIVE BELT Price: $2.99 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
532123404 |
KEEPER,FRA DR BEL Price: $3.22 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3598 |
SHIM-BEARING, FRONT (.149) Price: $24.63 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 26 |
86-7190 |
UPPER HOUSING ASM Price: $889.26 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 34 |
75-0720 |
DISCONTINUED Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
72-9420 |
VENT This part replaces 21-8230. Price: $6.85 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
