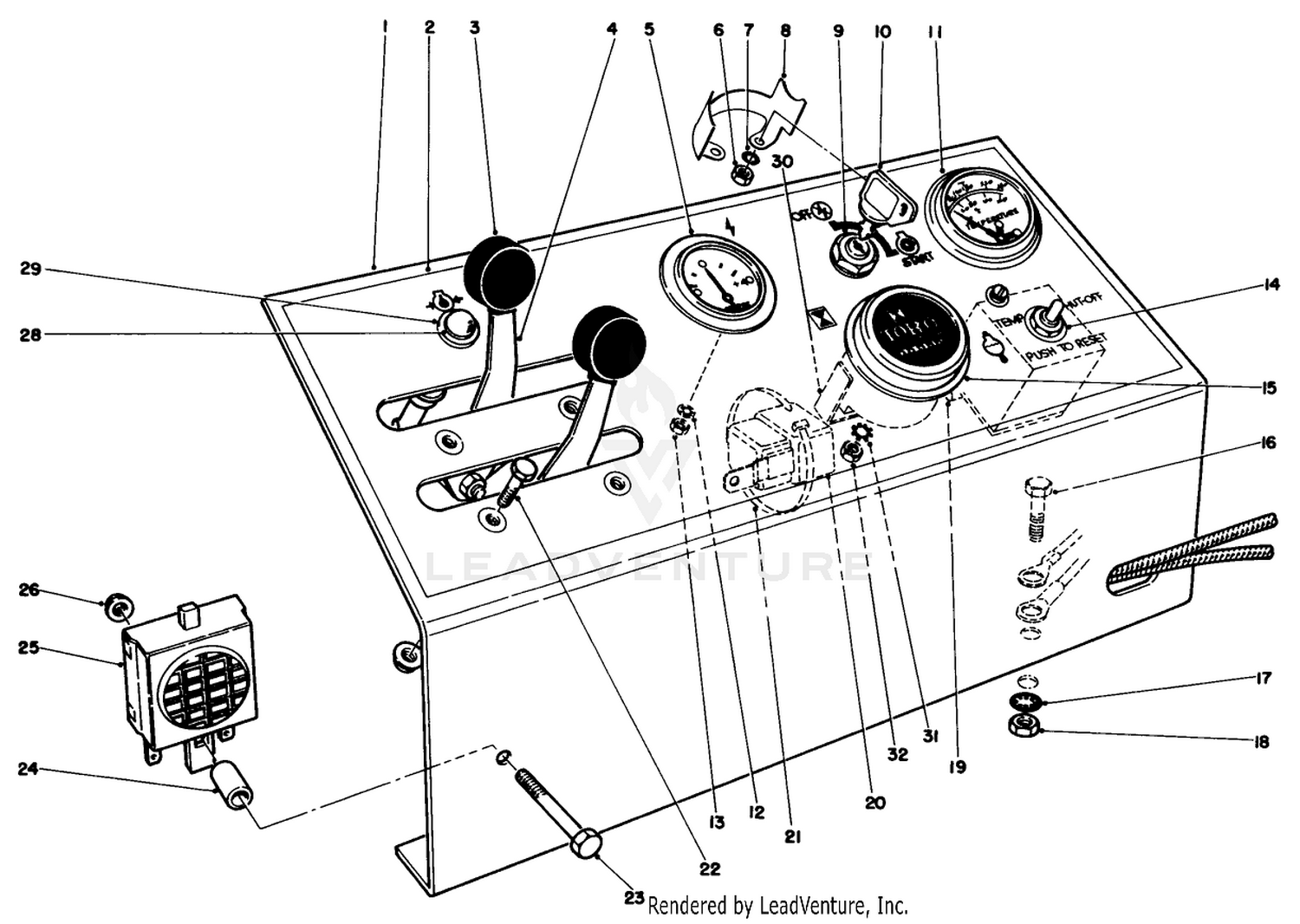

| Ref | Part Number | Description |
|---|
| 1 |
28-1580 |
INST PANEL Price: $130.00 |
| 2 |
70-2030 |
INST PANEL DECAL Price: $18.52 |
| 3 |
233-35 |
KNOB Price: $8.06 |
| 4 |
67-8560 |
CABLE-CONTROL, THROTTLE Price: $72.13 |
| 5 |
83-0820 |
GAUGE - AMMETER This part replaces 38-1660. Price: $76.09 |
| 6 |
3219-14 |
NUT-HEX Price: $0.25 |
| 7 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 8 |
38-1670 |
MTNG BRKT W/38-1660 Price: $16.06 |
| 9 |
27-2360 |
SWITCH Price: $46.56 |
| 10 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 11 |
67-8550 |
DISCONTINUED Price: Call Us |
| 12 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 13 |
3217-29 |
NUT-HEX Price: $0.25 |
| 14 |
26-6740 |
TEMP RESET RELAY Price: $165.84 |
| 15 |
120-2244 |
HOURMETER This part replaces 12-9990. Price: $48.06 |
| 16 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 17 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 18 |
3217-6 |
NUT-HEX Price: $1.19 |
| 20 |
63-7590 |
RELAY Price: $78.15 |
| 21 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 22 |
3290-134 |
SCREW Price: $0.27 |
| 23 |
3290-360 |
SCREW-HH Price: $4.34 |
| 24 |
22-7810 |
SPACER Price: $16.90 |
| 25 |
119-2865 |
KIT-GM300 BUZZER, LOW OIL PRESSURE This part replaces 22-7820. Price: $135.43 |
| 26 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 28 |
218-516 |
LENS Price: $11.36 |
| 29 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 30 |
218-515 |
BRACKET Price: $12.11 |
| 31 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
