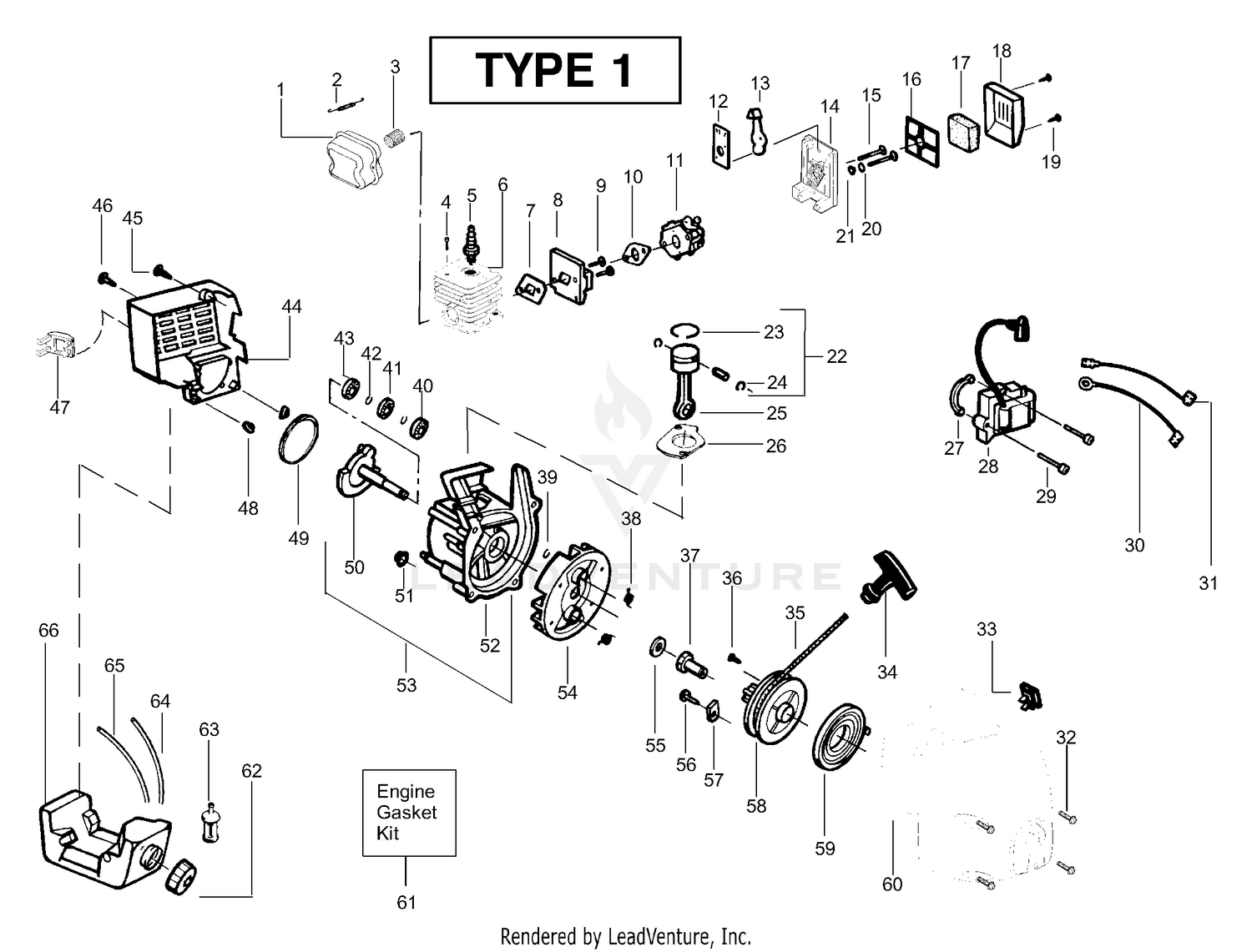

Engine Assembly Type 1
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | X-25-104 | Washer Price: Call Us |
| 2 | 530042088 | Muffler Spring Price: $1.99 |
| 2 | X-119-14 | Nut Price: Call Us |
| 3 | 47_086_08 | Screw-T.H. Price: Call Us |
| 3 | 530071391 | Screen-Spark Arrestor Price: $7.99 |
| 4 | 530015953 | Screw-Cylinder Price: $1.99 |
| 4 | X-286-17 | Key Price: Call Us |
| 5 | 236688 | Screen Price: Call Us |
| 5 | 503235112 | Spark Plug This part replaces 952030201. Price: $5.99 |
| 6 | 47_025_24 | Flywheel Price: Call Us |
| 6 | 530012416 | Cylinder This part replaces 530069757. Price: $17.99 |
| 7 | 530071329 | Gasket-Cyl./Carb.(kit) Price: $4.99 |
| 8 | 530069758 | Kit - Carb. Adaptor Price: $8.99 |
| 9 | 530016014 | Screw Price: $1.99 |
| 10 | 530071329 | Gasket-Carb.(kit) Price: $4.99 |
| 12 | 530038747 | Choke Plate Mounting Price: $1.99 |
| 13 | 530035499 | Choke Shutter Price: $1.99 |
| 14 | 530052431 | Air Box Price: $1.99 |
| 15 | 530015887 | Screw Price: $1.99 |
| 16 | 530036569 | Plate - Filter Support Price: $1.99 |
| 17 | 530036575 | Air Filter Foam Price: $1.99 |
| 18 | 530036568 | Air Filter Cover Price: $1.99 |
| 19 | 530015957 | Screw Price: $1.99 |
| 20 | 530015852 | Spacer-Choke Price: $1.99 |
| 21 | 530015254 | Washer Price: $1.99 |
| 23 | 545154009 | PISTON RING This part replaces 530012472. Price: $1.99 |
| 24 | 530015162 | Piston Pin Retainer Price: $1.99 |
| 25 | 530069615 | Connecting Rod Ass'y. Price: $14.99 |
| 26 | 530071329 | Gasket-Cylinder (kit) Price: $4.99 |
| 27 | 530036145 | Spacer-Module Price: $1.99 |
| 28 | 545081826 | Kit - Ignition Module This part replaces 530039211. Price: $32.99 |
| 29 | 530015954 | Screw Price: $1.99 |
| 30 | 530054448 | Ground Wire Ass'y. Price: $1.99 |
| 31 | 530054449 | Lead Wire Ass'y. Price: $1.99 |
| 32 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 33 | 530069572 | Kit - Switch Price: $4.99 |
| 34 | 530027569 | Starter Handle Price: $1.99 |
| 35 | 530071325 | Kit - Rope Price: $3.99 |
| 36 | 530016326 | Screw Price: $1.99 |
| 37 | 530027953 | Drive Coupling Price: $1.99 |
| 38 | 530023817 | Starter Dog Spring Price: $1.99 |
| 39 | 530015945 | Retainer Ring-C'case Price: $1.99 |
| 40 | 530032124 | Outer Bearing Price: $4.99 |
| 41 | 530019179 | C'case Seal Price: $2.99 |
| 42 | 530015941 | Retain. Ring-C'shaft Price: $1.99 |
| 43 | 530032125 | Inner Bearing Price: $11.99 |
| 44 | 530053320 | Rear Shroud Price: $6.99 |
| 45 | 530015934 | Screw Price: $1.99 |
| 46 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 47 | 530054536 | Guard-Muffler Price: $1.99 |
| 48 | 530036793 | Isolator-Shroud Price: $5.99 |
| 49 | 530071329 | O-Ring-C'case (kit) Price: $4.99 |
| 50 | 530012413 | Crankshaft Ass'y. Price: $14.99 |
| 51 | 530036792 | Isolator-C'Case Price: $4.99 |
| 54 | 545221701 | FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 55 | 530015828 | Washer-Flat Price: $1.99 |
| 56 | 530015775 | Screw Price: $1.99 |
| 57 | 530053985 | Retainer-Can Price: $0.99 |
| 59 | 545008011 | KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 60 | 530071414 | Assy. - Fan Housing Price: $17.99 |
| 62 | 530014347 | Fuel Cap Ass'y. Price: $4.99 |
| 63 | 530095646 | Fuel Pickup Ass'y. Price: $2.99 |
| 64 | 530069247 | Kit-Fuel Line (Small) Price: $3.99 |
| 65 | 530069216 | Kit-Fuel Line (Large) Price: $3.99 |
