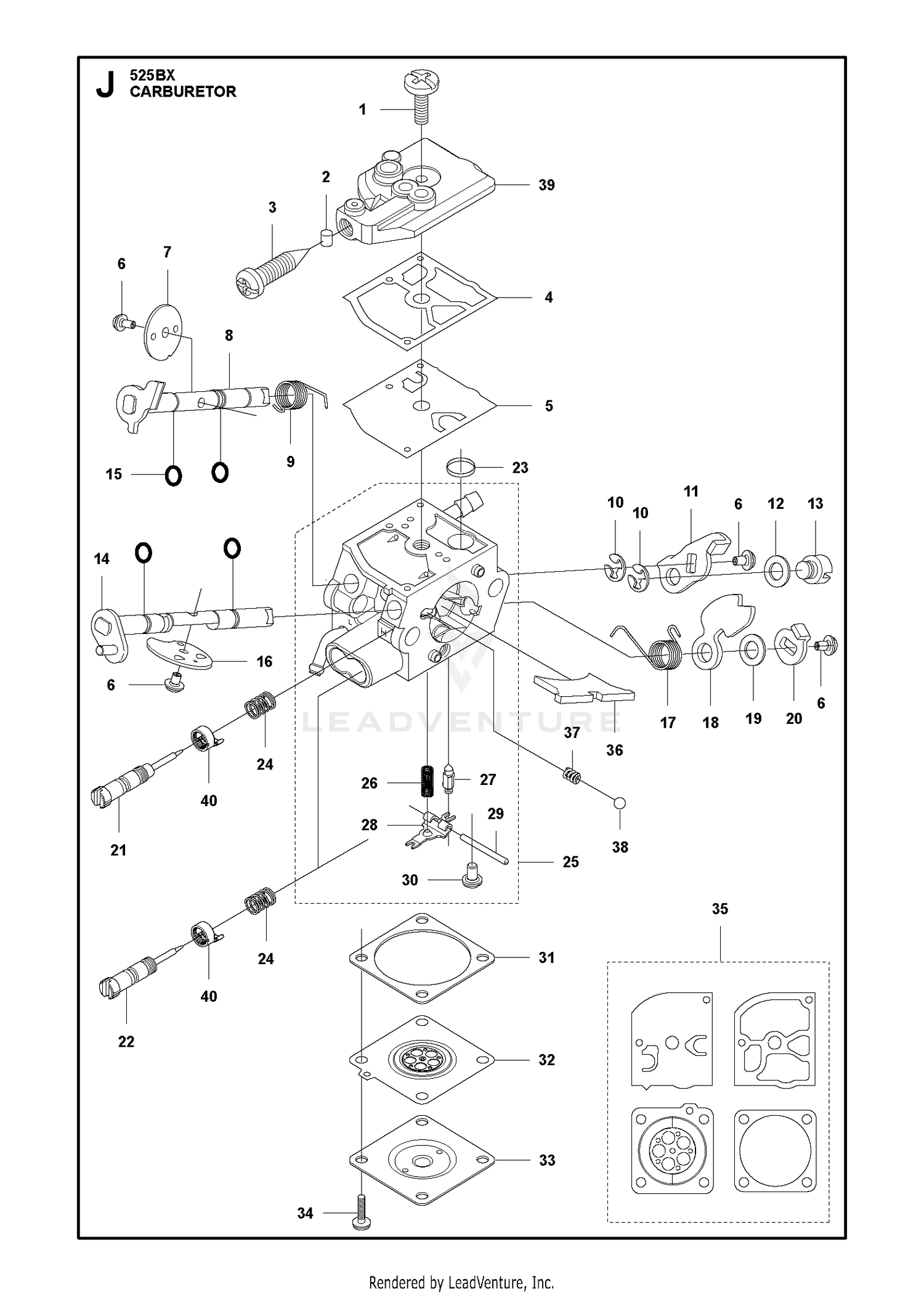

CARBURETOR
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 577899301 | SCREW Price: $2.99 |
| 2 | 578389701 | PLUG Price: $3.99 |
| 3 | 579631701 | SCREW Price: $5.99 |
| 6 | 577899701 | SCREW Price: $4.99 |
| 7 | 587712801 | VALVE THROTTLE Price: $5.99 |
| 8 | 587713001 | SHAFT ASSY THROTTLE Price: $8.99 |
| 9 | 587712901 | SPRING THROTTLE RETURN Price: $4.99 |
| 10 | 577900401 | E-RING Price: $3.99 |
| 11 | 587714301 | LEVER Price: $4.99 |
| 12 | 577901101 | GASKET Price: $2.99 |
| 13 | 586383401 | SWIVEL Price: $6.99 |
| 14 | 587714101 | SHAFT ASSY CHOKE Price: $6.99 |
| 15 | 587713601 | O-RING Price: $4.99 |
| 16 | 587714201 | VALVE CHOKE Price: $5.99 |
| 17 | 587713702 | SPRING RETURN This part replaces 587713701. Price: $2.99 |
| 18 | 587713901 | LEVER Price: $5.99 |
| 19 | 585319701 | SPACER Price: $3.99 |
| 20 | 587714001 | LEVER Price: $5.99 |
| 21 | 587713401 | SCREW IDLE MIXTURE Price: $5.99 |
| 22 | 577901701 | SCREW MAIN MIXTURE Price: $5.99 |
| 23 | 577900301 | STRAINER Price: $3.99 |
| 24 | 587713301 | SPRING Price: $4.99 |
| 25 | 501716904 | Carburetors This part replaces 587712701. Price: $37.99 |
| 33 | 577900001 | COVER METERING CHAMBER Price: $11.99 |
| 34 | 577900501 | SCREW M3X7 Price: $2.99 |
| 35 | 577901801 | GASKET KIT Price: $9.99 |
| 36 | 587713501 | PLATE SPLIT Price: $7.99 |
| 37 | 577901601 | SPRING FRICTION Price: $6.99 |
| 38 | 577901501 | BALL STEEL Price: $3.99 |
| 39 | 587713801 | PUMP COVER Price: $12.99 |
