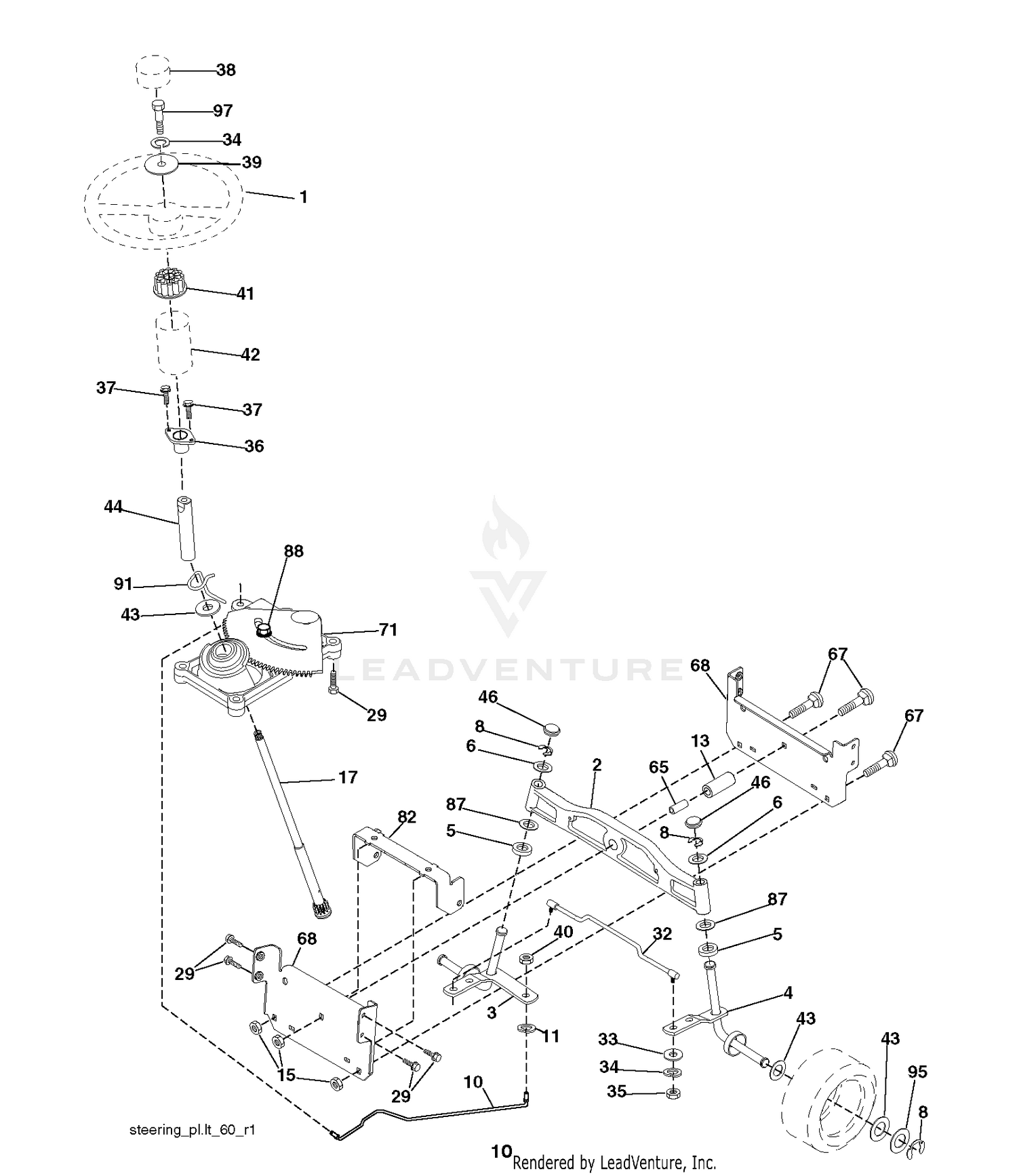

| Ref | Part Number | Description |
|---|
| 1 |
532424146 |
WHEEL.STEERING.STDSRR.BLK/OV Price: $56.99 |
| 1 |
99-7430 |
RELAY-MINI Price: $22.99 |
| 2 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $112.99 |
| 3 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 3 |
532169840 |
SPINDLE.ASM.LH.15"TIRES Price: $17.99 |
| 4 |
532169839 |
SPINDLE.ASM.RH.15"TIRES Price: $17.99 |
| 4 |
93-2169-01 |
BRACKET-RELAY Price: $26.63 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 6 |
145-2823 |
BATTERY - CORROSIVE This part replaces 106-5187. Price: $195.94 |
| 6 |
532121748 |
WASHER Price: $1.99 |
| 7 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 8 |
33115-040 |
SCREW-HH Price: $1.22 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $40.99 |
| 11 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 11 |
99-7435 |
RELAY Price: $32.43 |
| 12 |
33113-016 |
SCREW-HH Price: $0.34 |
| 13 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $6.99 |
| 15 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 16 |
94-1325 |
TIE-MOUNT, PUSH Price: $3.20 |
| 17 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 17 |
532190753 |
SHAFT STEERING SPLINE Price: $31.99 |
| 18 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 19 |
100-3186-03 |
BRACKET-HOLDER, FUSE Price: $28.48 |
| 21 |
95-8853 |
CABLE-BATTERY, POSITIVE Price: $95.21 |
| 22 |
99-8167 |
CABLE-BATTERY, NEGATIVE Price: $66.67 |
| 23 |
107-2597 |
HARNESS-WIRE Price: $1,152.69 |
| 26 |
92-5753 |
CLAMP-HOSE Price: $2.10 |
| 28 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 29 |
3218-2 |
NUT-JAM Price: $0.25 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN Price: $59.99 |
| 33 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.02 |
| 34 |
810040500 |
LOCKWASHER Price: $2.99 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
532155106 |
KIT, BUSHING This part replaces 532155099. Price: $5.99 |
| 37 |
532152927 |
SCREW Price: $3.99 |
| 38 |
532424691 |
INSERT, WHEEL STEERING Price: $4.99 |
| 39 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.49 |
| 41 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 42 |
532169633 |
BOOT.STEERING.SHAFT.BLACK Price: $5.99 |
| 43 |
532121749 |
WASHER Price: $1.99 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 46 |
532121232 |
CAP.SPINDLE Price: $1.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE Price: $2.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $2.99 |
| 68 |
532169827 |
BRACE.AXLE.15"TIRES Price: $14.99 |
| 71 |
532175146 |
STEERING ASM Price: $61.99 |
| 82 |
532199978 |
BRACKET.SUSP.CHASSIS.FRONT.15 Price: $11.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $3.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $3.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $8.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $2.99 |
