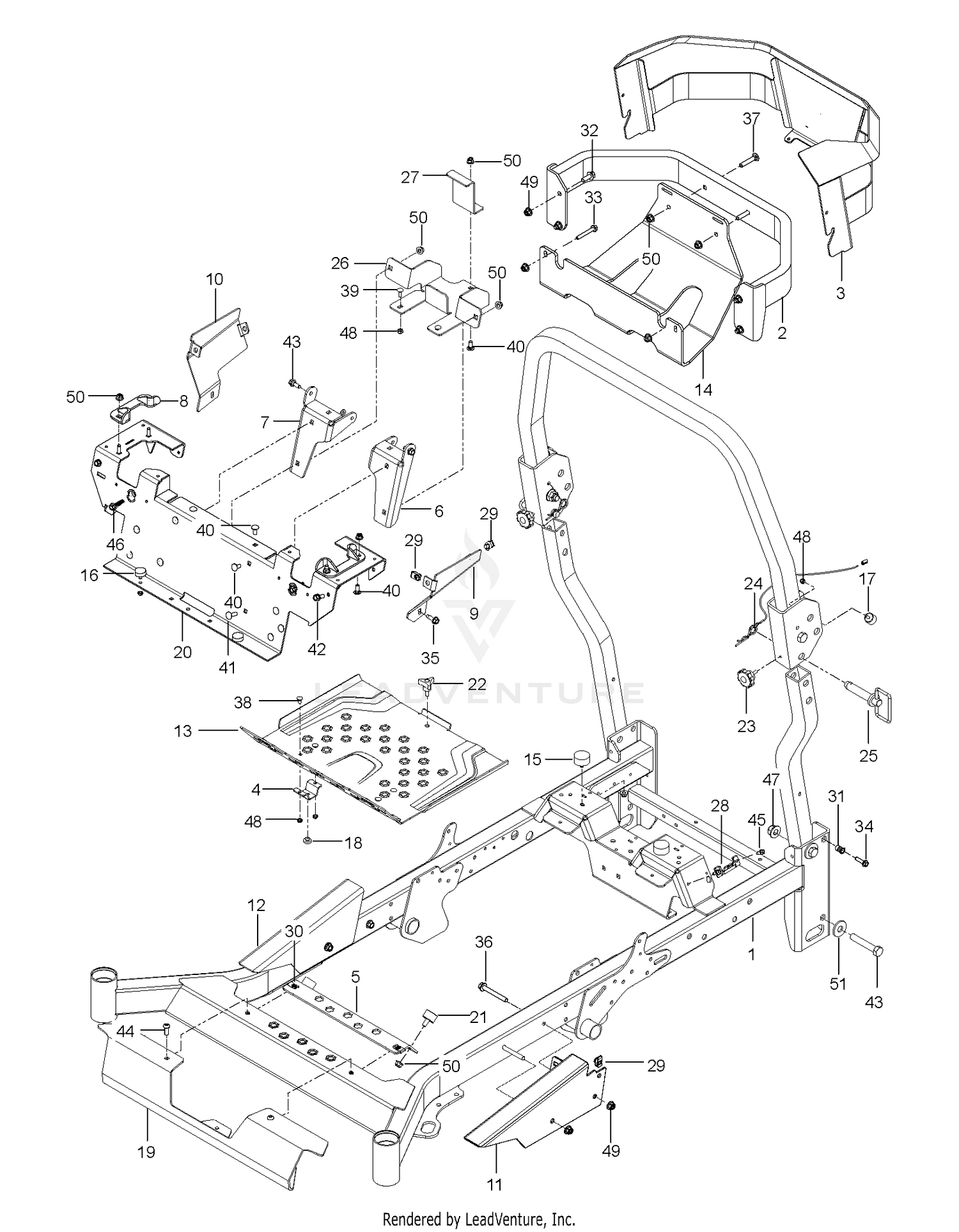

| Ref | Part Number | Description |
|---|
| 1 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 2 |
522675701 |
BUMPER REAR LONG UNPAINTED Price: $99.99 |
| 2 |
76-7090-03 |
COVER-CONTROL, FRONT This part replaces 76-7090. Price: $31.56 |
| 3 |
587898002 |
GUARD.PNT.ENGINE.GREY Price: $169.99 |
| 3 |
76-6270 |
STRIP-FOAM, PANEL Price: $18.47 |
| 4 |
237-79 |
O-RING Price: $5.46 |
| 4 |
589808802 |
COVER.PNT.VALANCE.PZ.GREY Price: $12.99 |
| 5 |
237-42 |
O-RING Price: $2.78 |
| 5 |
589807202 |
BRACKET.PNT.ISOLATOR.SUPPT.BLK Price: $39.99 |
| 6 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 6 |
589448202 |
BRACKET.PNT.MTG.SEAT.LH.EDIP Price: $27.99 |
| 7 |
321-10 |
SCREW-HH Price: $1.29 |
| 7 |
589448204 |
BRACKET.PNT.MTG.SEAT.RH.EDIP Price: $27.99 |
| 8 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 8 |
582481101 |
CABLE.YOKE.PARK.BRAKE Price: $14.99 |
| 9 |
582481002 |
PANEL.PNT.CLOSE.OUT.LH.ORG Price: $12.99 |
| 9 |
69-9140 |
LINK-LEVER, VALVE Price: $15.42 |
| 10 |
323-17 |
SCREW-HH Price: $2.05 |
| 10 |
582481004 |
PANEL.PNT.CLOSE.OUT.RH.ORG Price: $12.99 |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
582480803 |
PANEL.PNT.WEDGE.LH.ORG Price: $49.99 |
| 12 |
582480804 |
PANEL.PNT.WEDGE.RH.ORG Price: $49.99 |
| 12 |
74-6060 |
LEVER-VALVE, RH Price: $73.07 |
| 13 |
233-42 |
KNOB Price: $12.88 |
| 13 |
589304602 |
PLATE.PNT.FOOTREST.PZ.ORANGE Price: $99.99 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
574228601 |
Price: Call Us |
| 15 |
582478702 |
BUMPER 5/16-18 CLEAR ZINC This part replaces 582478701. Price: $8.99 |
| 15 |
92-1398 |
DISCONTINUED Price: Call Us |
| 16 |
575811501 |
BUMPER, 1/4-20 STUD, 1/4 Price: $5.99 |
| 16 |
63-4090 |
FITTING-ELBOW 90 SPCL Price: $75.99 |
| 17 |
237-22 |
O-RING Price: $2.43 |
| 17 |
522801401 |
BUMPER, MALE STUD, 1/4-20 Price: $2.99 |
| 18 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 18 |
86-3240 |
HOSE ASSY Price: $64.49 |
| 19 |
589745202 |
COVER.PNT.VALANCE.PZ.GREY Price: $99.99 |
| 20 |
340-1 |
FITTING-STRAIGHT This part replaces 88-1380. Price: $10.19 |
| 20 |
582480502 |
CROSS.MEMBER.PNT.SEAT.FRONT.OR Price: $169.99 |
| 21 |
237-21 |
O-RING Price: $0.70 |
| 21 |
589744002 |
Isolators This part replaces 589744001. Price: $9.99 |
| 22 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 22 |
86-2501 |
PLATE-ORIFICE (.039) Price: $23.20 |
| 23 |
594977401 |
Nuts This part replaces 539111028. Price: $1.99 |
| 23 |
86-3190 |
HOSE ASM Price: $44.25 |
| 24 |
596918001 |
Pins This part replaces 539200715. Price: $2.99 |
| 24 |
86-3180 |
HOSE ASM Price: $45.47 |
| 25 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 25 |
574388002 |
Pins This part replaces 574388001. Price: $9.99 |
| 26 |
596750302 |
Plates This part replaces 582460702. Price: $22.99 |
| 26 |
84-6402 |
DISC-ORIFICE (.080) Price: $33.60 |
| 27 |
596907702 |
BATTERY MOUNT X431 This part replaces 582460602. Price: $5.99 |
| 27 |
74-5910 |
BULKHEAD-SPECIAL Price: $107.74 |
| 28 |
589500701 |
BRACKET.FUSE.RELAY.HOUSING.PZ Price: $5.99 |
| 28 |
86-5770 |
REILIEF VALVE TUBE ASM Price: $131.59 |
| 29 |
354-79 |
CAP-DUST Price: $7.81 |
| 29 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 30 |
354-77 |
FITTING-QUICK Price: $55.94 |
| 30 |
589806801 |
SCREW.BUTTON.HEAD.TORX.3/8-161 Price: $2.99 |
| 31 |
577117702 |
Hardware This part replaces 577117701. Price: $3.99 |
| 32 |
525612802 |
Screws This part replaces 525612801. Price: $2.99 |
| 32 |
86-3230 |
HOSE ASM Price: $85.65 |
| 33 |
574233802 |
Hardware This part replaces 574233801. Price: $2.99 |
| 33 |
86-5760 |
DECK RETURN TUBE ASM Price: $80.10 |
| 34 |
237-30 |
O-RING Price: $2.50 |
| 34 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 35 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 35 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
| 36 |
580754602 |
Bolts This part replaces 580754601. Price: $7.99 |
| 36 |
86-5440 |
DISCONTINUED Price: Call Us |
| 37 |
595901401 |
Bolts This part replaces 539100145. Price: $2.99 |
| 37 |
86-5930 |
DISCONTINUED Price: Call Us |
| 38 |
596133401 |
Bolts This part replaces 872140404. Price: $1.99 |
| 38 |
76-7040 |
PAD-FOOT Price: $6.58 |
| 39 |
82-5300-03 |
HEEL-SUPPORT This part replaces 82-5300. Price: $37.51 |
| 39 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 40 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 40 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 41 |
539990308 |
Price: Call Us |
| 41 |
88-1520 |
DISCONTINUED Price: Call Us |
| 42 |
596240701 |
Bolts This part replaces 539110303. Price: $3.99 |
| 43 |
585986101 |
SCREW.SHAKEPROOF.1.25.BLACK Price: $2.99 |
| 44 |
589797201 |
SCREW.BUTTON.HEAD.TORX.3/8-161 Price: $3.99 |
| 45 |
596437001 |
Screws This part replaces 817490408. Price: $2.99 |
| 46 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539108120. Price: $1.99 |
| 47 |
525829102 |
Nuts This part replaces 525829101. Price: $2.99 |
| 48 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 49 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 50 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 51 |
594946401 |
Washers This part replaces 539102653. Price: $4.99 |
