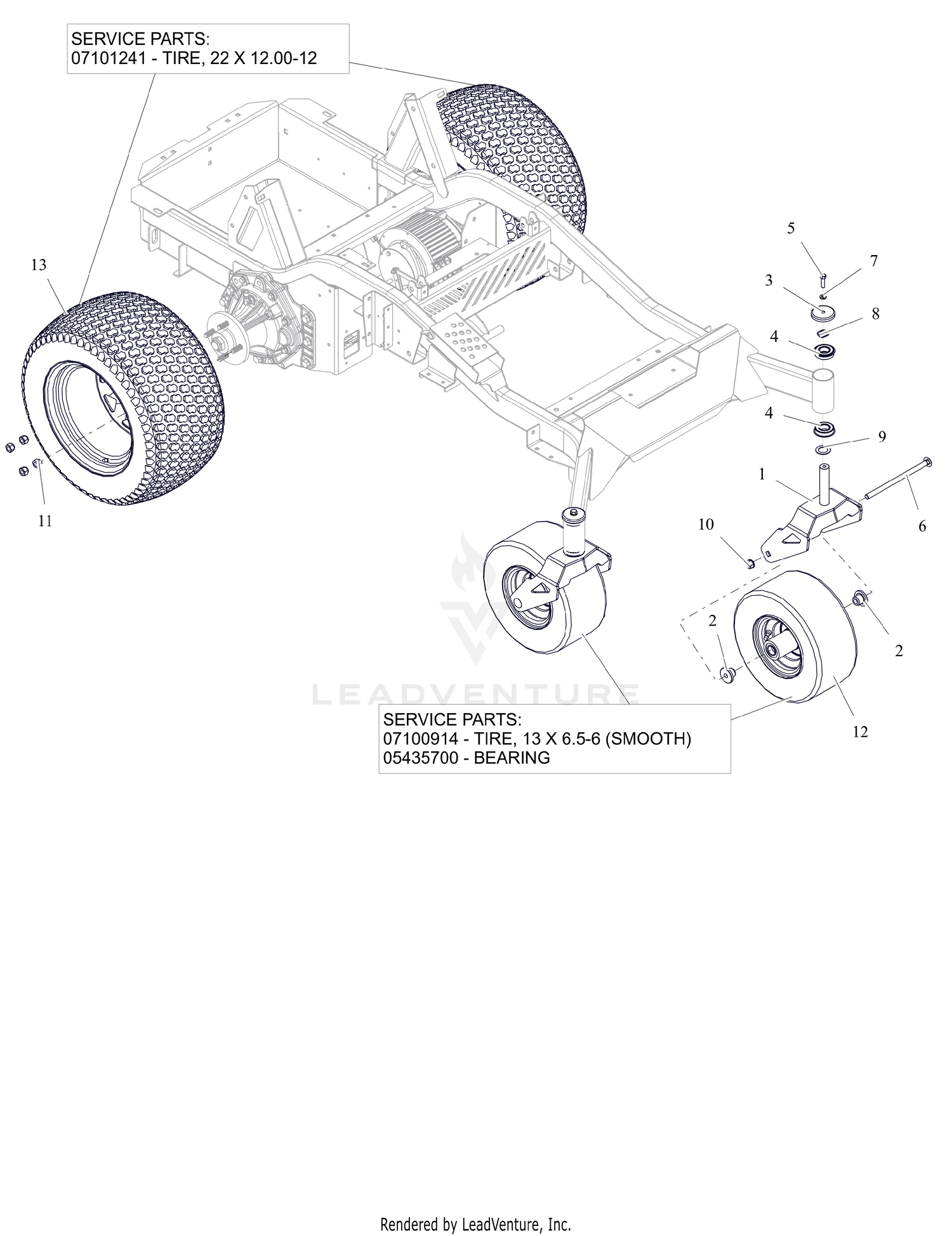

| Ref | Part Number | Description |
|---|
| 1 |
09187059 |
WLDMT, CASTER FORK-HD (ORANGE) Price: $80.95 |
| 2 |
00675300 |
SPACER, FRONT WHEEL Price: $7.95 |
| 3 |
05198400 |
SHIELD, AXLE BEARING Price: $6.45 |
| 4 |
05400728 |
BEARING, BALL -2.000 OD X 1.000 ID X .5625 W/RING Price: $12.45 |
| 5 |
05901724 |
BLT, HEX .38-16X1.25 G5 ZCC Price: $1.45 |
| 6 |
06200510 |
BLT-RHSN .50-13X9.00 G5 ZCC NS This part replaces 06200322. Price: $7.45 |
| 7 |
06300120 |
WSHR, LK-HVY .375X.115 ZCC Price: $3.95 |
| 8 |
06401030 |
WSHR-WAVE 1.0X1.25X.028 .145FH Price: $5.45 |
| 9 |
06416600 |
WSHR-HRD-THRS 1.007X1.542X.062 Price: $2.95 |
| 10 |
06500902 |
NUT-LK-CTR-FLG .500-13 GG ZCC Price: $0.95 |
| 11 |
06500926 |
NUT, WHEEL .50-20 ZCC Price: $1.45 |
| 12 |
07101226 |
ASM, WHL/TIRE 13X6.50-6 Price: $120.95 |
| 13 |
07101227 |
ASM, WHL/TIRE 22X12.00-12 K500 Price: $252.95 |
