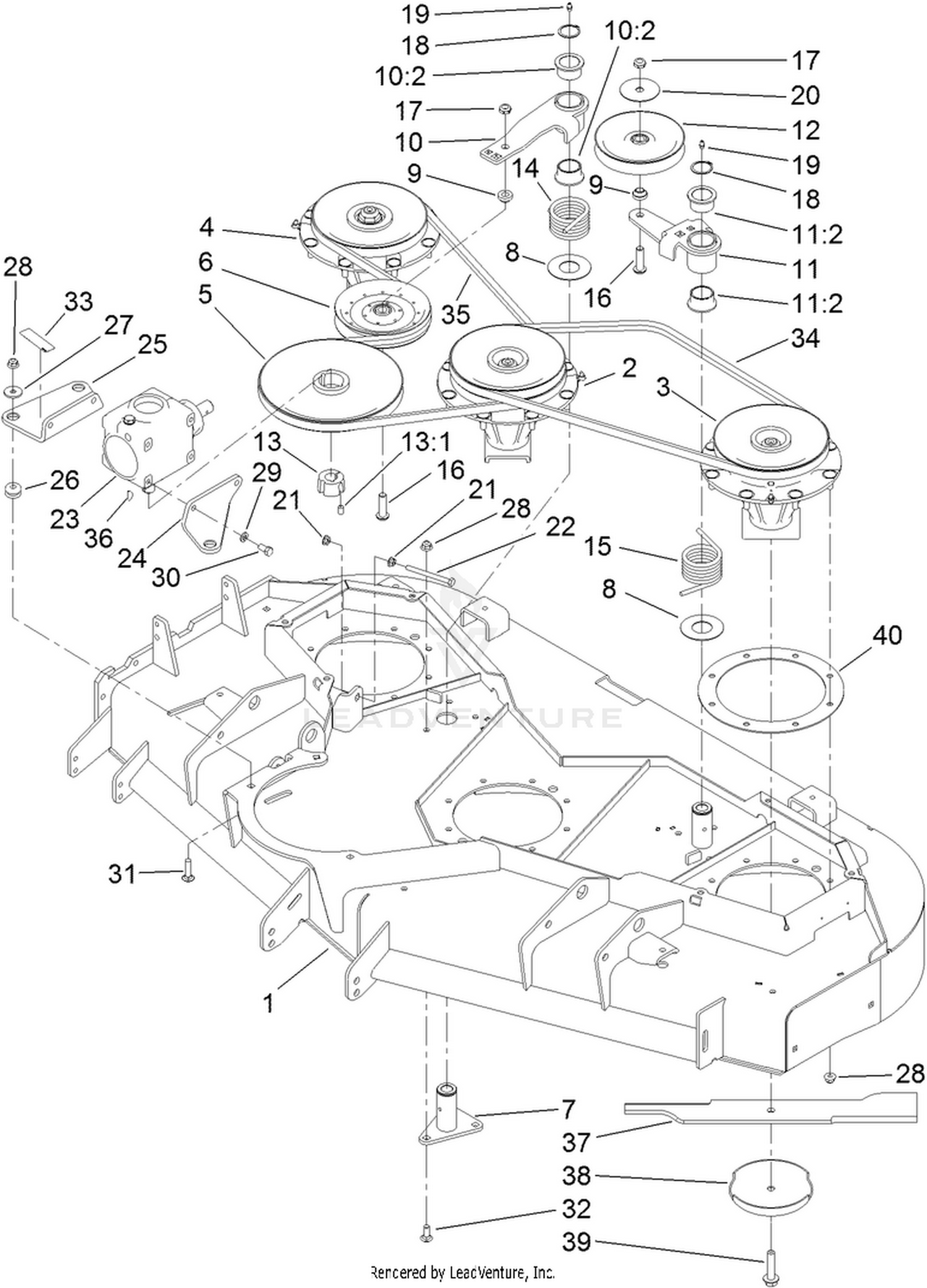

| Ref | Part Number | Description |
|---|
| 1 |
127-6467 |
DECK ASM Price: $4,880.30 |
| 2 |
139-1033 |
DOUBLE DRIVEN SPINDLE ASM This part replaces 117-9234. Price: $537.23 |
| 3 |
139-1032 |
HIGH DRIVEN SPINDLE ASM This part replaces 117-9233. Price: $537.23 |
| 4 |
138-1930 |
LOW DRIVEN SPINDLE ASM This part replaces 119-4778. Price: $605.97 |
| 5 |
108-1952 |
PULLEY Price: $297.87 |
| 6 |
132-9421 |
PULLEY-IDLER, FLAT This part replaces 110-9596. Price: $41.10 |
| 7 |
115-1387 |
IDLER POST ASM Price: $96.30 |
| 8 |
108-1926 |
WASHER Price: $5.30 |
| 9 |
108-1924 |
SPACER-IDLER Price: $11.13 |
| 10 |
140-7078 |
IDLER ARM ASM This part replaces 108-1930. Price: $49.85 |
| 11 |
140-7079 |
IDLER ARM ASM This part replaces 117-9176. Price: $49.85 |
| 12 |
140-5847 |
PULLEY-IDLER This part replaces 01-268-0160. Price: $98.46 |
| 13 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 14 |
108-1921 |
SPRING-TORSION Price: $28.33 |
| 15 |
112-7395 |
SPRING-TORSION Price: $26.70 |
| 16 |
108-1993 |
SCREW-HSBH Price: $3.66 |
| 17 |
3296-45 |
NUT-HEX Price: $3.79 |
| 18 |
32120-84 |
RING-SNAP, EXTERNAL Price: $0.61 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 20 |
100-3102 |
WASHER-FLAT Price: $3.70 |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 22 |
321-6 |
SCREW-HH This part replaces 322-22. Price: $0.25 |
| 23 |
130-8659 |
GEARBOX ASM This part replaces 117-9245-03. Price: $843.83 |
| 24 |
115-1388-03 |
MOUNT-GEARBOX, LH Price: $100.39 |
| 25 |
115-1389-03 |
MOUNT-GEARBOX, RH Price: $100.39 |
| 26 |
63-9750 |
MOUNT Price: $18.92 |
| 27 |
63-8410 |
WASHER Price: $1.76 |
| 28 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 29 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 30 |
323-4 |
SCREW-HH Price: $1.02 |
| 31 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 32 |
3231-2 |
BOLT-CARR Price: $0.81 |
| 33 |
93-6697 |
DECAL-LUBE Price: $11.38 |
| 34 |
67-6920 |
V-BELT Price: $50.33 |
| 35 |
105-0887 |
BELT-DRIVE, PTO Price: $125.85 |
| 36 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 37 |
110-4701 |
BLADE-ROTARY, STANDARD (20.5) Price: $36.86 |
| 38 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 39 |
92-5816 |
BOLT-BLADE Price: $4.93 |
