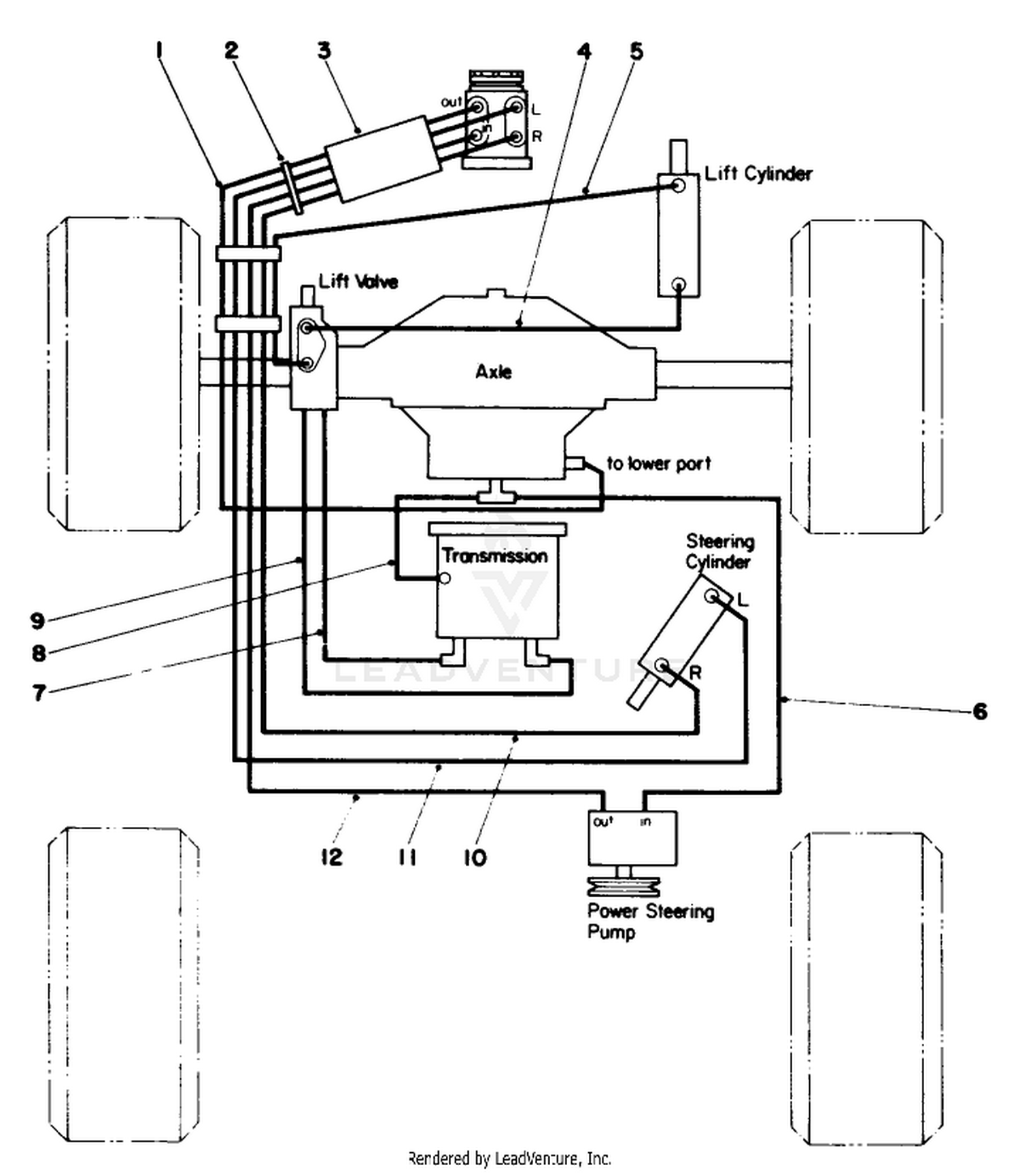

Hydraulic Schematic
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 38-5480 | DISCONTINUED Price: Call Us |
| 2 | 3290-378 | TIE-CABLE Price: $0.79 |
| 3 | 30-1750 | DISCONTINUED Price: Call Us |
| 4 | 33-4720 | DISCONTINUED Price: Call Us |
| 5 | 33-4710 | DISCONTINUED Price: Call Us |
| 6 | 38-5490 | DISCONTINUED Price: Call Us |
| 7 | 33-3250 | DISCONTINUED Price: Call Us |
| 8 | 33-4680 | DISCONTINUED Price: Call Us |
| 9 | 33-3260 | DISCONTINUED Price: Call Us |
| 10 | 38-5520 | DISCONTINUED Price: Call Us |
| 11 | 38-5530 | DISCONTINUED Price: Call Us |
