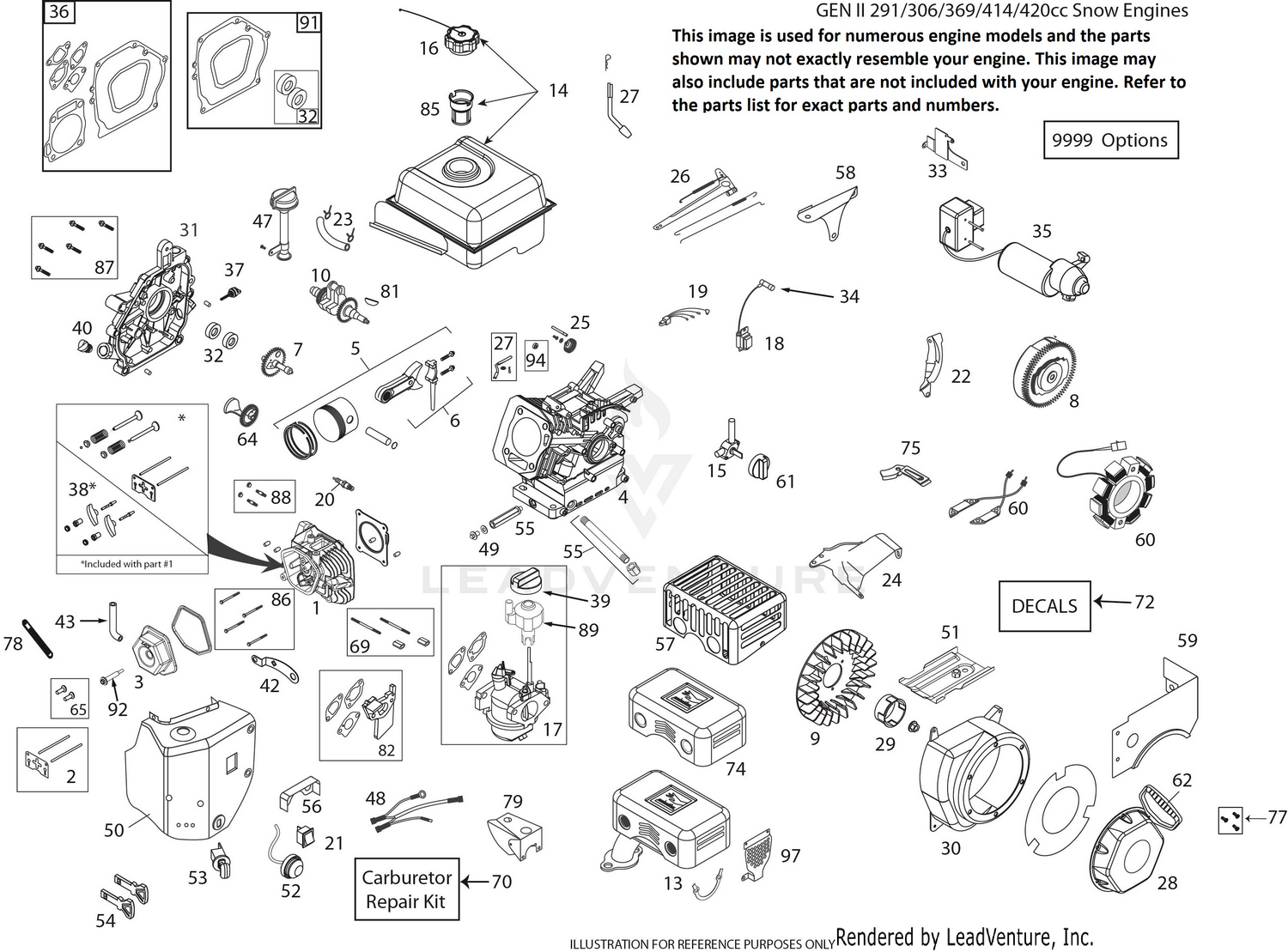

| Ref | Part Number | Description |
|---|
| 1 |
20001265 |
CYLINDER HEAD ASSY (W/GASKET) Price: $269.45 |
| 2 |
20001364 |
PUSH ROD & PLATE KIT (W/GSKT) This part replaces 20001266. Price: $15.45 |
| 3 |
20001553 |
VALVE COVER ASSEMBLY This part replaces 20001298. Price: $32.95 |
| 5 |
20001269 |
PISTON & ROD ASSEMBLY Price: $87.95 |
| 6 |
20001269 |
PISTON & ROD ASSEMBLY This part replaces 20001270. Price: $87.95 |
| 7 |
20001272 |
CAMSHAFT - MCR Price: $95.95 |
| 8 |
20001110 |
FLYWHEEL - ELECTRIC START Price: $208.95 |
| 9 |
20001278 |
COOLING FAN - FLYWHEEL Price: $54.95 |
| 10 |
20001123 |
CRANKSHAFT (#17 KEYED) Price: $167.95 |
| 13 |
20001102 |
MUFFLER ASSEMBLY Price: $65.95 |
| 14 |
20001554 |
FUEL TANK (3.6L) Price: $109.95 |
| 15 |
20001436 |
FUEL TANK ON/OFF VALVE This part replaces 20001162. Price: $24.95 |
| 16 |
07500112 |
CAP, FUEL TANK (BLACK) This part replaces 20001131. Price: $16.95 |
| 17 |
20001108 |
CARBURETOR (W/IDLE-DOWN & GASKETS) Price: $91.45 |
| 18 |
20001159 |
IGNITION COIL (CDI) (STANDARD) Price: $34.45 |
| 20 |
20001246 |
SPARK PLUG, ARIENS AX This part replaces 20001271. Price: $4.95 |
| 21 |
20001033 |
ON/OFF SWITCH - ROCKER (RED) This part replaces 20001139. Price: $13.45 |
| 23 |
20001252 |
FUEL HOSE KIT 1/4-318MM This part replaces 20001301. Price: $5.45 |
| 24 |
20001384 |
SPEED CONTROL BRACKET (FIXED) Price: $13.95 |
| 25 |
20001274 |
GOVERNOR GEAR ASSEMBLY Price: $14.45 |
| 26 |
20001117 |
GOVERNOR ARM & LINK KIT Price: $9.95 |
| 27 |
20001275 |
GOVERNOR ARM PADDLE Price: $7.95 |
| 28 |
20001450 |
RECOIL STARTER, ROUND STYLE Price: $65.95 |
| 29 |
20001451 |
STARTER CUP, ROUND STYLE Price: $21.95 |
| 30 |
20001408 |
Blower Housing 291cc Snow This part replaces 20001120. Price: $94.95 |
| 31 |
20001276 |
CRANKCASE COVER ASSY Price: $128.95 |
| 32 |
20001277 |
OIL SEAL KIT Price: $13.45 |
| 33 |
20001114 |
ELECTRIC START SWITCHBOX BRKET Price: $8.95 |
| 34 |
20001158 |
SPARK PLUG BOOT (W/MTL SHIELD) Price: $10.95 |
| 36 |
20001279 |
ENGINE GASKET KIT Price: $43.95 |
| 37 |
20001293 |
SMALL BLACK OIL DIPSTICK Price: $7.95 |
| 38 |
20001284 |
ROCKER ARM KIT (W/GASKET) Price: $19.95 |
| 39 |
20000025 |
CHOKE ON/OFF KNOB (BLACK) This part replaces 20001145. Price: $5.45 |
| 40 |
20001294 |
NON-REMOVABLE PLASTIC PLUG Price: $6.95 |
| 43 |
20001405 |
BREATHER TUBE (291/369/414CC) Price: $4.45 |
| 47 |
20001163 |
HIGH OIL-FILL TUBE & CAP Price: $9.95 |
| 48 |
20001141 |
WIRE HARNESS Price: $18.95 |
| 49 |
20001303 |
OIL DRAIN PLUG (W/WASHER) Price: $5.45 |
| 50 |
20001555 |
HEATER BOX KIT Price: Call Us |
| 51 |
20001281 |
SHIELD - CYLINDER Price: $6.95 |
| 52 |
20000033 |
PRIMER BULB WITH HOSE (BLACK) This part replaces 20001133. Price: $13.45 |
| 53 |
20000026 |
PUSH/PULL KEY & SWITCH (BLACK) This part replaces 20001137. Price: $12.45 |
| 54 |
20000027 |
PUSH/PULL KEY (BLACK) (PKG OF 2) This part replaces 07500111. Price: $4.45 |
| 55 |
20001160 |
OIL DRAIN TUBE Price: $13.45 |
| 56 |
20001154 |
CARBURETOR VAPOR SHIELD Price: $23.95 |
| 57 |
20001339 |
CE MUFFLER HEAT SHLD CPC#22031 Price: $79.95 |
| 58 |
20001116 |
SHIELD - GOVERNOR LINKAGE Price: $6.95 |
| 59 |
20001556 |
FUEL TANK SKIRT Price: Call Us |
| 60 |
20001111 |
CHARGING COIL (60-WATT AC) Price: $60.45 |
| 61 |
20000024 |
FUEL ON/OFF KNOB (BLACK) This part replaces 20001148. Price: $4.45 |
| 62 |
20001064 |
STARTER GRIP-SNOW (DELUXE) Price: $14.45 |
| 65 |
20001267 |
TAPPET KIT (SET OF 2) Price: $13.95 |
| 69 |
20001351 |
CARB MTG STUD KIT 291CC SNOW Price: $8.95 |
| 70 |
20001185 |
CARBURETOR REPAIR KIT Price: $27.45 |
| 72 |
20001183 |
ARIENS 291 (ALL) SNW DCL KIT Price: $8.95 |
| 75 |
20001383 |
WIRE GUARD PLATE Price: $8.75 |
| 77 |
20001186 |
RECOIL BOLT KIT Price: $4.45 |
| 81 |
20001327 |
WOODRUFFF FLYWHEEL KEY 5-PACK Price: $6.95 |
| 82 |
20001334 |
CARBURETOR SPACER Price: $7.95 |
| 85 |
20001342 |
FUEL TANK STRAINER Price: $5.45 |
| 86 |
20001359 |
HEAD BOLT KIT 291-414CC Price: $13.95 |
| 87 |
20001357 |
CRANKCASE COVER BOLT KIT 291CC Price: $8.95 |
| 88 |
20001353 |
MUFFLER MTG STUD KIT Price: $8.95 |
| 89 |
20001372 |
SPEED CONTROL KNOB Price: $7.95 |
| 91 |
20001279 |
ENGINE GASKET KIT This part replaces 20001419. Price: $43.95 |
| 92 |
20001048 |
VALVE COVER BOLT (SINGLE BOLT) Price: $7.95 |
| 97 |
20001548 |
MUFFLER MANIFOLD SHIELD Price: $20.95 |
| 9999 |
20001347 |
HIGH ALT JET - 291CC L11 CARB Price: $7.95 |
| 9999 |
20001438 |
HARDWARE KIT (4 M6X10 FLG BLT) Price: $6.95 |
