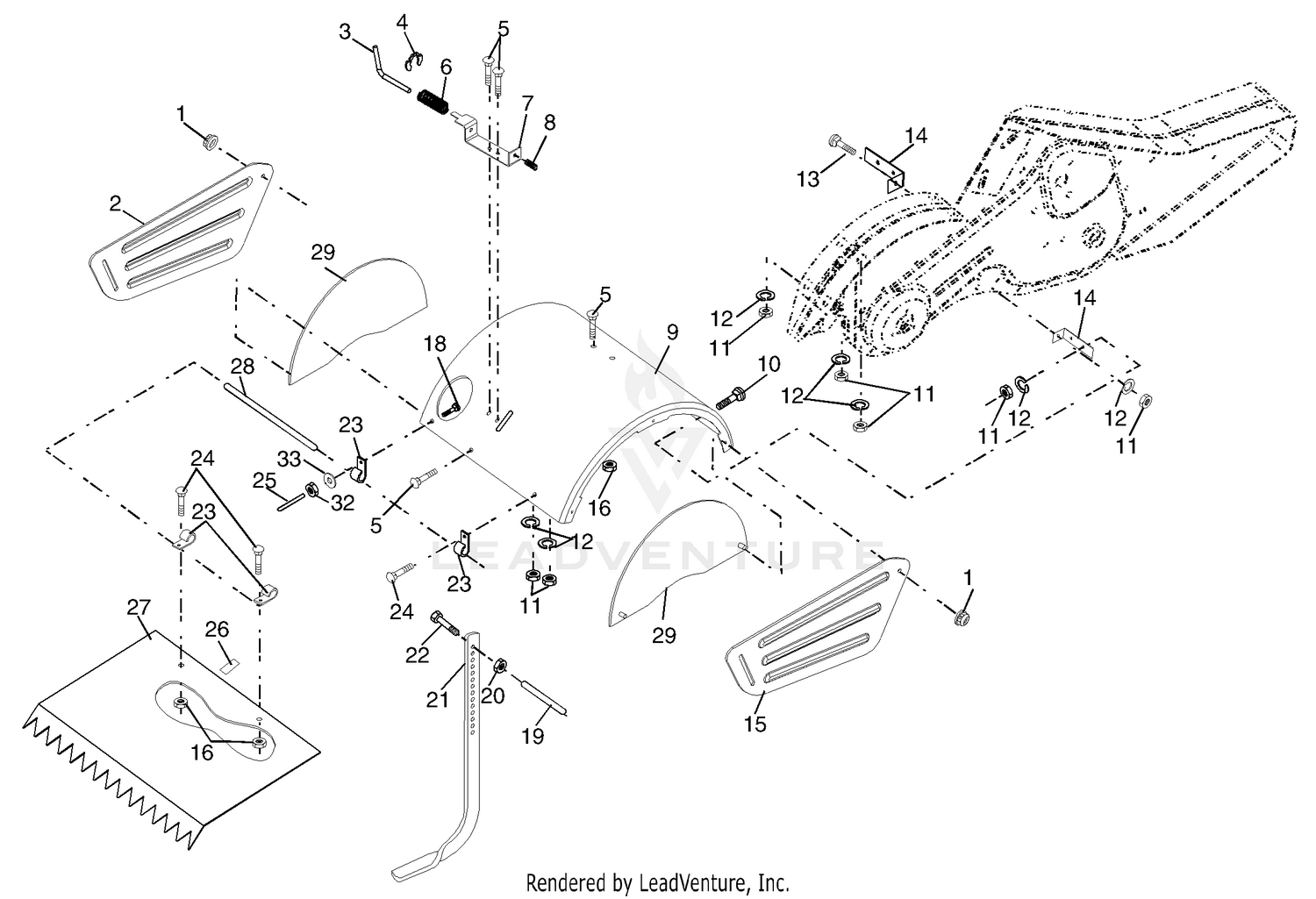

| Ref | Part Number | Description |
|---|
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 1 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 2 |
532440452 |
SHIELD.PNT.SIDE.OUTER.LH.ORANG This part replaces 532162952. Price: $17.99 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 92-1774. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
532008393 |
STAKE PIN TI Price: $19.99 |
| 4 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 4 |
812000035 |
RING, KLIP Price: $3.99 |
| 5 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 5 |
595901601 |
GSPW Bolts This part replaces 532180847. Price: $2.99 |
| 6 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 6 |
532008394 |
SPRING TI Price: $7.99 |
| 7 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 7 |
532008392 |
BRACKET.LATCH.STAKE.3.20.BLACK Price: $4.99 |
| 8 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 8 |
532109230 |
SPRING CRT Price: $4.99 |
| 9 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 9 |
532446201 |
SHIELD.TINE.TILLER.ORANGE This part replaces 532142292. Price: $109.99 |
| 10 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 10 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 11 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 11 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 12 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 12 |
94-6935 |
LOCKNUT Price: $1.09 |
| 13 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 13 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 14 |
581813501 |
BRACKET.TINE.SHIELD.TILLER.BLA This part replaces 532124311. Price: $11.99 |
| 15 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 15 |
532440450 |
SHIELD.SIDE OUTER.RH.ORANGE This part replaces 532162953. Price: $17.99 |
| 16 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 16 |
84-8600 |
SET-SHOES, LINED Price: $131.50 |
| 17 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 18 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 18 |
872040410 |
BOLT Price: $3.99 |
| 19 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 19 |
532102701 |
GRIP CRT Price: $9.99 |
| 20 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 21 |
531154801 |
SERVICE KIT STAKE STAKE.DEPTH. This part replaces 532102156. Price: $8.99 |
| 21 |
94-6934 |
SCREW-HH Price: $6.99 |
| 22 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 22 |
874930632 |
BOLT.375-16 Price: $5.99 |
| 23 |
532004440 |
HINGE CRT Price: $3.99 |
| 23 |
94-6936 |
WASHER-HARDENED Price: $0.58 |
| 24 |
596133401 |
Bolts This part replaces 872140404. Price: $1.99 |
| 25 |
532006712 |
VINYL CAP This part replaces 532124717. Price: $3.99 |
| 26 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 27 |
532440448 |
SHIELD.LEVELING.17".ORANGE This part replaces 532125016. Price: $69.99 |
| 28 |
532120588 |
PIN.HINGE.TILLER Price: $6.99 |
| 29 |
585414301 |
KIT.TILLER.SIDE.SHIELD.BLACK This part replaces 532142293. Price: $37.99 |
| 32 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
