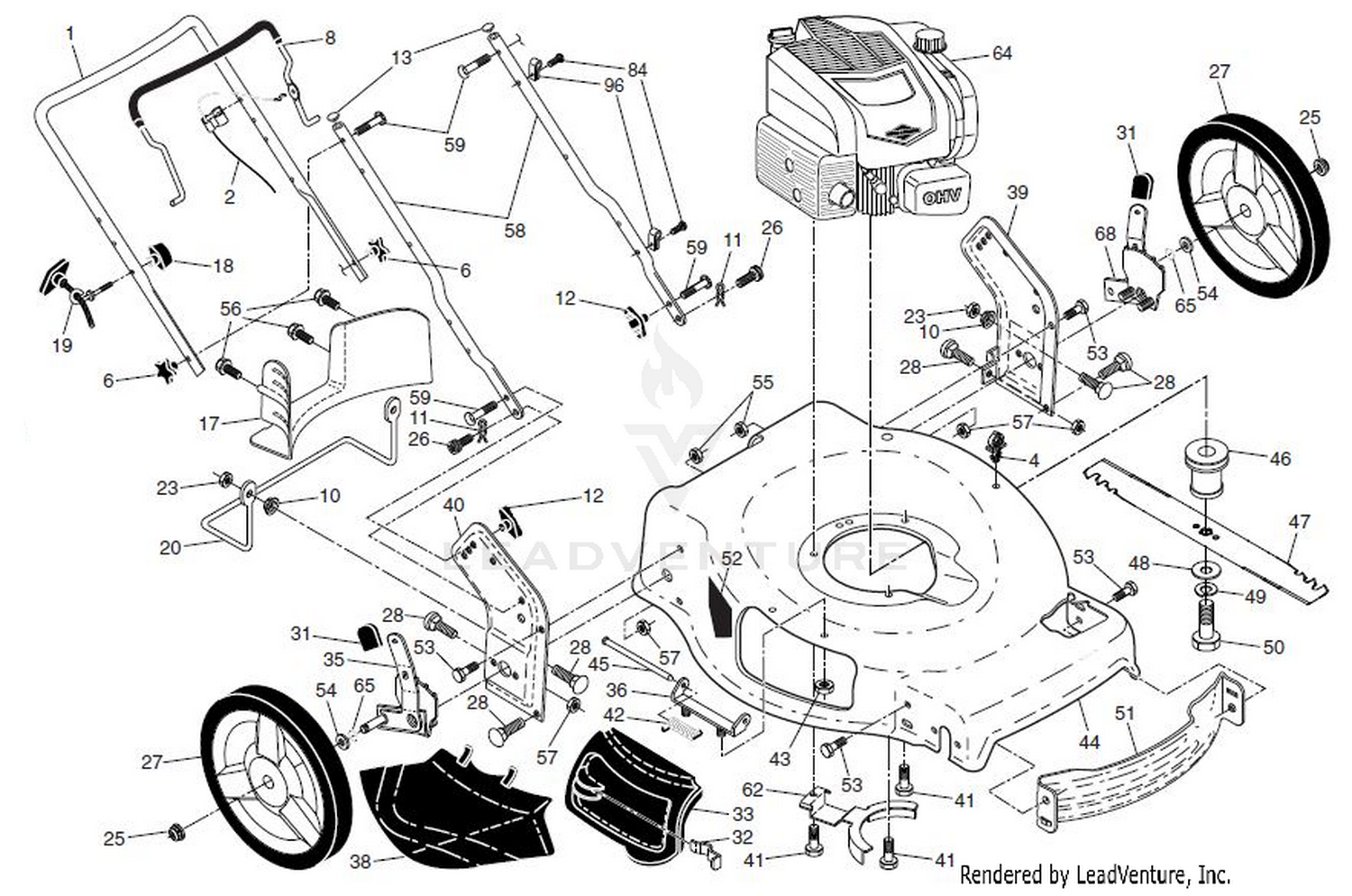

| Ref | Part Number | Description |
|---|
| 1 |
585854803 |
HANDLE.UP.CURV.PUSH.498 Price: $34.99 |
| 2 |
532420939 |
CABLE.MZR.FGD.PLUS Price: $14.99 |
| 4 |
532145006 |
PUSH CLIP Price: $2.99 |
| 6 |
532182398 |
KNOB.HANDLE.PLASTIC.STAR.BLACK Price: $5.99 |
| 8 |
587689302 |
BAIL.OM.ERGO.BENT.MZR.ORAN.668 Price: $14.99 |
| 10 |
583400601 |
PALNUT.5/16" This part replaces 532423063. Price: $2.99 |
| 11 |
532425575 |
COTTER.HAIRPIN.DOOR/HANDLE.PIV Price: $2.99 |
| 12 |
532185577 |
HANDLE.KNOB.BLACK This part replaces 532191938. Price: $7.99 |
| 13 |
532437516 |
PLUG.PLASTIC.7/8".14-20.GAUGE Price: $3.99 |
| 17 |
532427307 |
BAFFLE.22PLUS.FGD.REAR. Price: $9.99 |
| 18 |
581912601 |
T-KNOB.NEW ROPE GUIDE Price: $3.99 |
| 19 |
581902101 |
GUIDE.ROPE.BLK.ZINC.CHROM Price: $3.99 |
| 20 |
583394001 |
FOOT.GUARD.REAR.22PLUS.BLK This part replaces 532422467. Price: $14.99 |
| 23 |
596040501 |
Hardware This part replaces 873970500. Price: $2.99 |
| 25 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT Price: $3.99 |
| 26 |
532419945 |
SCREW,DOOR/HANDLE.PIVOT Price: $4.99 |
| 27 |
585911001 |
WHEEL.12X1.75.CF H3SPK.RAD3.BB Price: $22.99 |
| 28 |
586212501 |
BOLT.CARRIAGE.LN.5/16-18X.5/8 Price: $2.99 |
| 31 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 32 |
532441192 |
LATCH.DOOR.ZINC Price: $3.99 |
| 33 |
594942002 |
DOOR.MULCH.22+.BLK This part replaces 532419927. Price: $5.99 |
| 36 |
532175735 |
BRACKET.ASM.HINGE.21.FWGD. Price: $4.99 |
| 38 |
532426129 |
DEFLECTOR.CLIPPING.22.BLACK Price: $9.99 |
| 41 |
532150406 |
BOLT 3/8-16X1-1/8 Price: $4.99 |
| 42 |
532193000 |
SPRING.TORSION Price: $5.99 |
| 43 |
596041001 |
Hardware This part replaces 532438130. Price: $2.99 |
| 44 |
581801901 |
KIT.HSG.22+FGD.SIDE.668.CE Price: $119.99 |
| 45 |
532175650 |
ROD.HINGE.21 Price: $4.99 |
| 46 |
581473301 |
ADAPTOR BLADE 25MM STAR Price: $14.99 |
| 47 |
580244002 |
BLADE 22 4-N-1 2PIN 5STAR BLK This part replaces 580244001. Price: $19.99 |
| 48 |
532851074 |
WASHER,HARDEN Price: $3.99 |
| 49 |
596238701 |
Washers This part replaces 532850263. Price: $3.99 |
| 50 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 51 |
532430599 |
BAFFLE.FRONT.22.PLUS Price: $12.99 |
| 52 |
581579101 |
DECAL.CUTFINGER.CE.02 This part replaces 532182166. Price: $3.99 |
| 53 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 54 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 55 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 56 |
817411312 |
SCREW.HX.13X.750 Price: $4.99 |
| 58 |
593270403 |
HANDLE.LOWER.ASM.W/PLUG.22+.49 This part replaces 585908203. Price: $14.99 |
| 59 |
532191574 |
BOLT, HANDLE 5/16-18X1.75 Price: $5.99 |
| 62 |
532425711 |
BRACKET.KEEPER.BELT This part replaces 532435059. Price: $5.99 |
| 65 |
532197480 |
O-RING..070X.487.NEOPRENE Price: $3.99 |
| 84 |
532428124 |
FASTENER.PUSH.O.250X0.783 Price: $1.99 |
| 96 |
532197991 |
CLIP.CABLE.BLK Price: $3.99 |
