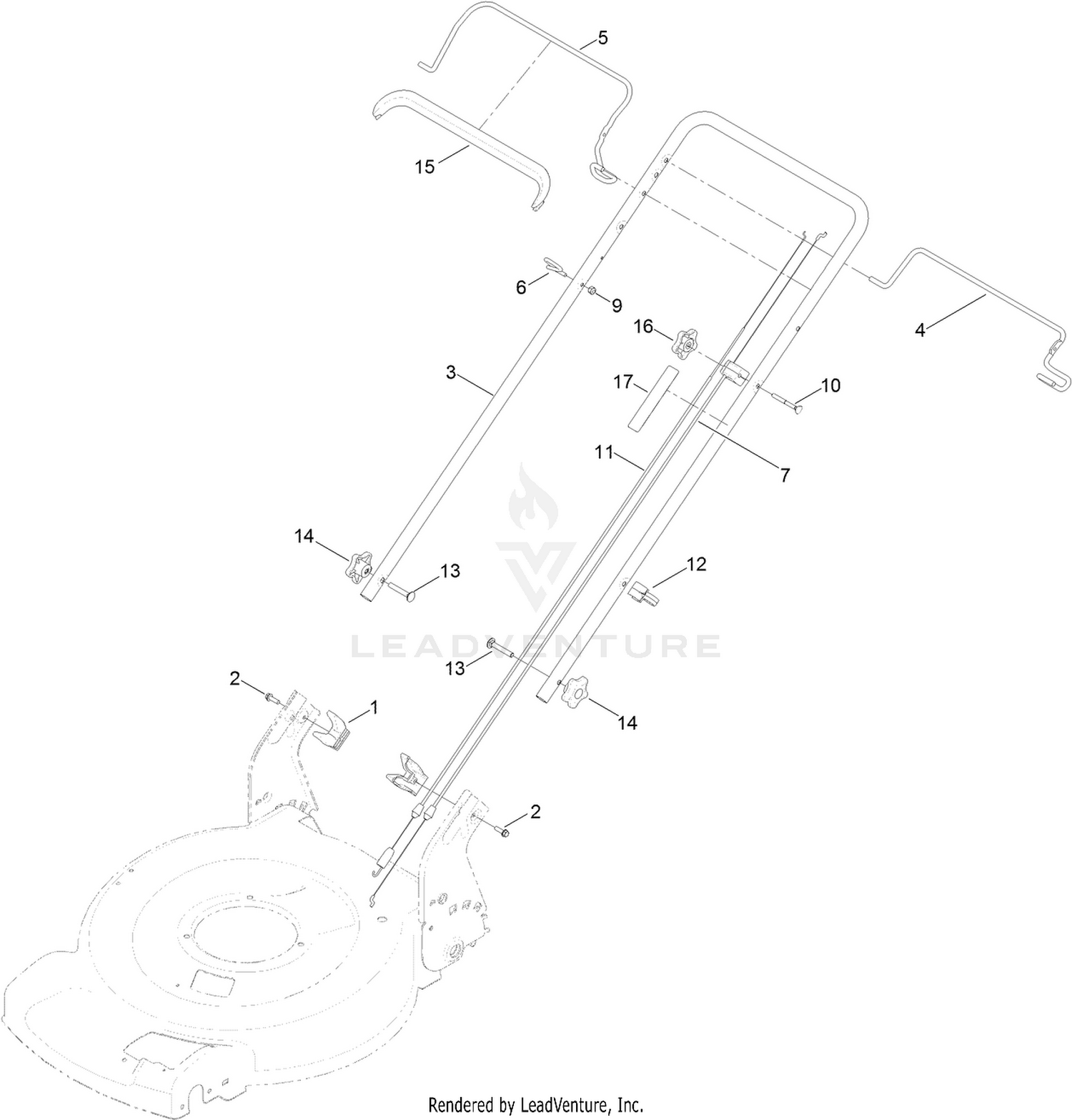

Handle Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-2866 | ANCHOR-BAG Price: $2.38 |
| 2 | 46-8091 | SCREW-HWH Price: $3.59 |
| 3 | 131-0818-05 | HANDLE Price: $34.98 |
| 4 | 131-0835-03 | BAIL-TRACTION Price: $10.21 |
| 5 | 138-3269-03 | BAIL-BRAKE This part replaces 131-0821-03. Price: $9.61 |
| 6 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 7 | 112-8818 | CABLE-BRAKE Price: $22.47 |
| 9 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 10 | 92-2269 | SCREW-HANDLE Price: $3.93 |
| 11 | 119-2379 | CABLE-TRACTION Price: $22.32 |
| 12 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 13 | 3230-6 | BOLT-CARR Price: $0.59 |
| 14 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 15 | 127-6847 | COVER-BAIL Price: $2.75 |
| 16 | 131-0897 | KNOB-HANDLE, LOCKING Price: $2.75 |
