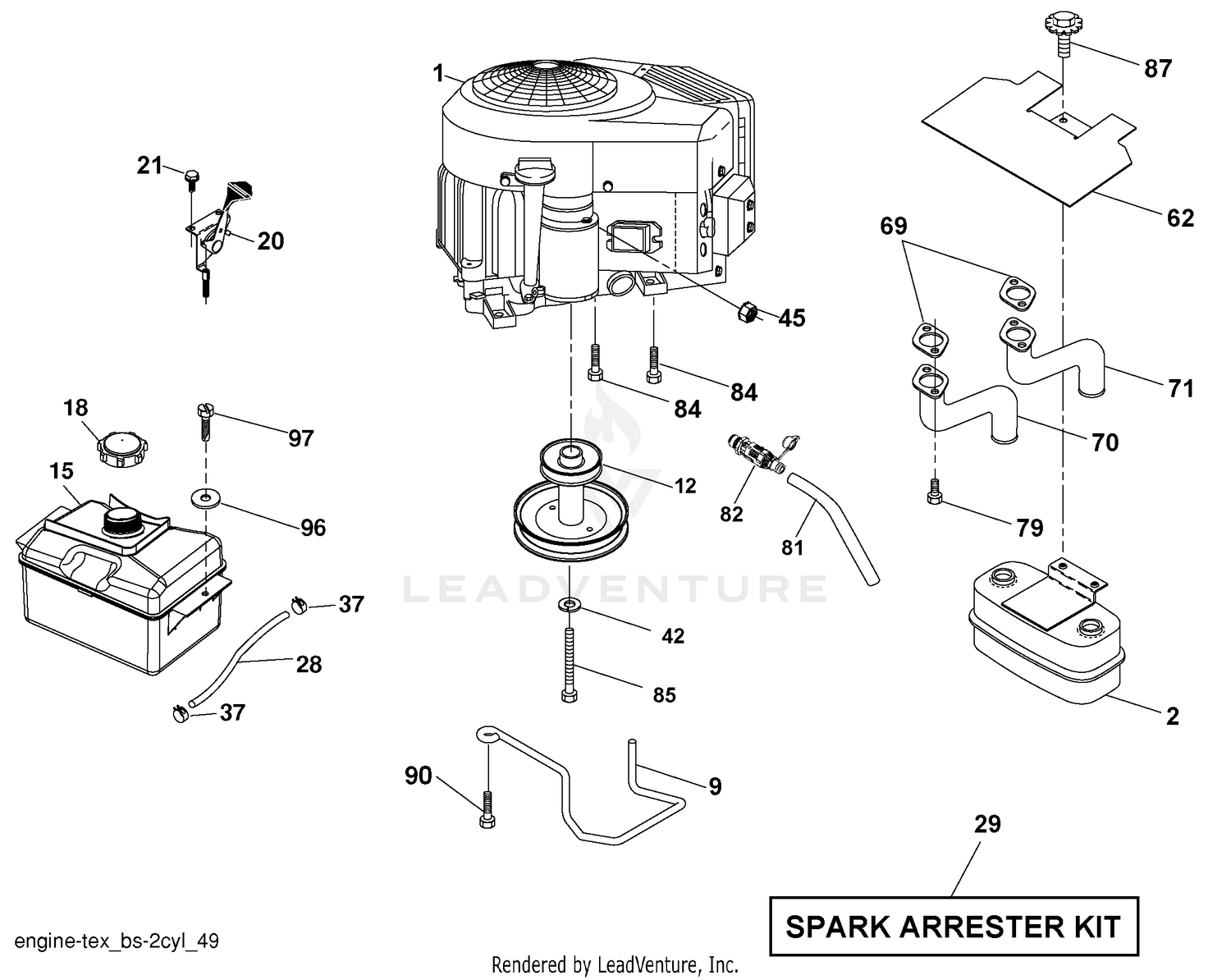

| Ref | Part Number | Description |
|---|
| 1 |
110186030 |
Kit-Cylinder Block Price: Call Us |
| 2 |
064200015 |
Plug Price: Call Us |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 4 |
064200040 |
Plug Price: Call Us |
| 5 |
064200040 |
Plug Price: Call Us |
| 6 |
198466050 |
Plug Price: Call Us |
| 7 |
198466010 |
Plug Price: Call Us |
| 8 |
198466070 |
Plug Price: Call Us |
| 9 |
165296160 |
Shaft Price: Call Us |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
198517090 |
Bush Price: Call Us |
| 11 |
198517300 |
Bush Price: Call Us |
| 12 |
040106203 |
Bearing-Ball Price: Call Us |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 13 |
064100045 |
Plug Price: Call Us |
| 14 |
042303015 |
Bush Price: Call Us |
| 15 |
030500512 |
Dowel Price: Call Us |
| 15 |
581290101 |
TANK.ASSEMBL.2.5GAL.NON-EPA This part replaces 532407489. Price: $99.99 |
| 16 |
030500512 |
Dowel Price: Call Us |
| 17 |
030500820 |
Dowel Price: Call Us |
| 18 |
030309005 |
Pin Price: Call Us |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
012100620 |
Stud Price: Call Us |
| 20 |
012100635 |
Stud Price: Call Us |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 21 |
012100660 |
Stud Price: Call Us |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
110156220 |
Holder Incl. Ref. #23 24) Price: Call Us |
| 25 |
030500612 |
Dowel Price: Call Us |
| 26 |
010810840 |
Screw Price: Call Us |
| 27 |
110156230 |
Holder (Incl. Ref. #28 29) Price: Call Us |
| 28 |
587044822 |
HOSE.1/4".LOW.PERM.FUEL.LN.22" This part replaces 532401137. Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
030500612 |
Dowel Price: Call Us |
| 31 |
010810840 |
Screw Price: Call Us |
| 32 |
110156240 |
Holder (Incl. Ref. #33 34) Price: Call Us |
| 35 |
030500612 |
Dowel Price: Call Us |
| 36 |
010810840 |
Screw Price: Call Us |
| 37 |
011310850 |
Screw Price: Call Us |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
011310850 |
Screw Price: Call Us |
| 39 |
010700845 |
Screw Price: Call Us |
| 40 |
036509005 |
Circlip Price: Call Us |
| 41 |
064200018 |
Plug Price: Call Us |
| 42 |
198736052 |
Cock Price: Call Us |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
