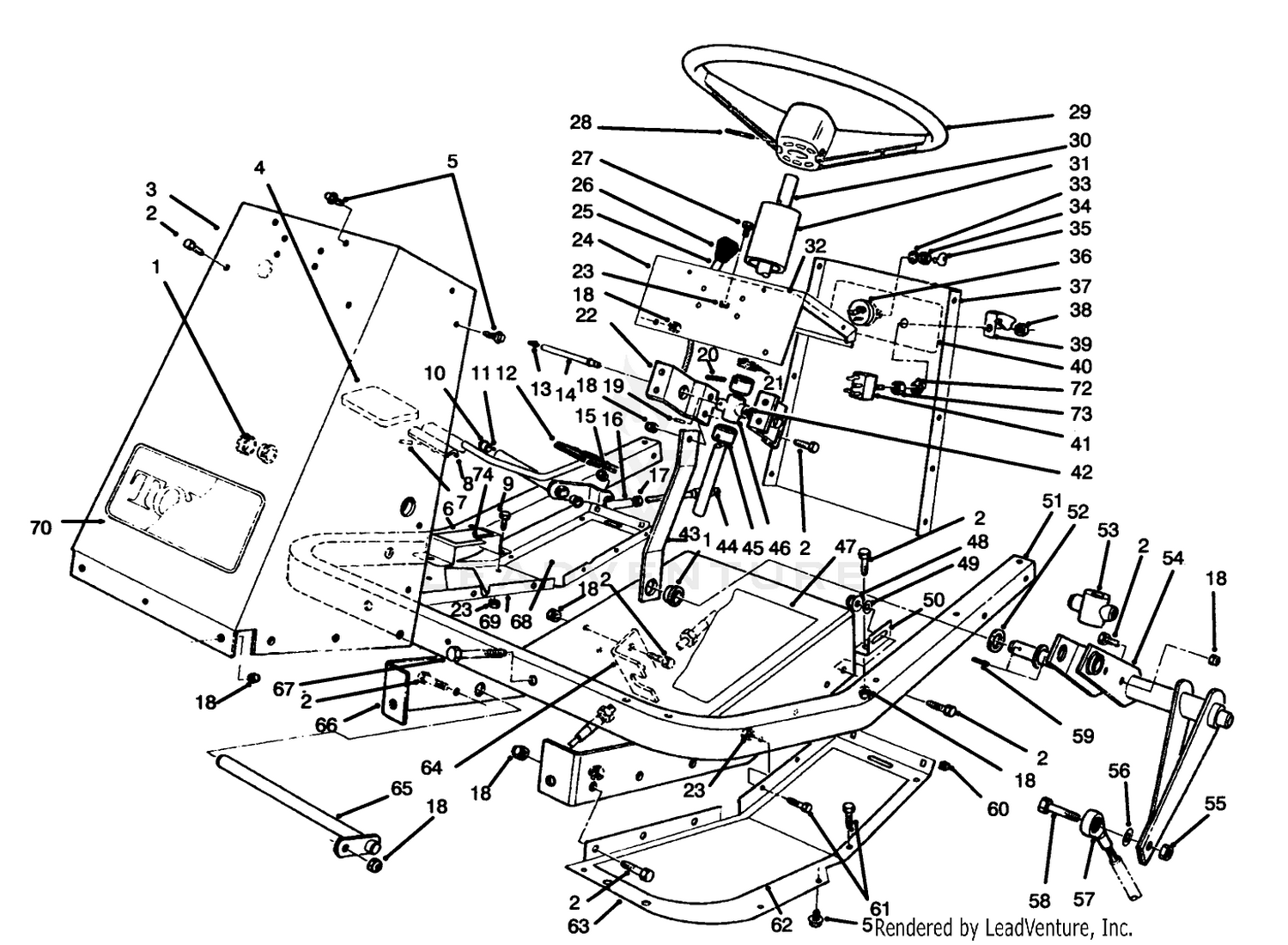

| Ref | Part Number | Description |
|---|
| 1 |
27-9080 |
BEARING-FLANGE Price: $3.39 |
| 2 |
322-4 |
SCREW-HH Price: $0.35 |
| 3 |
54-1900-01 |
FRONT TOWER This part replaces 54-1900. Price: $260.77 |
| 4 |
49-6470 |
DISCONTINUED Price: Call Us |
| 5 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 6 |
80-4930 |
Footrest-Pedal Price: Call Us |
| 7 |
32121-51 |
PIN-ROLL Price: $0.70 |
| 8 |
80-4920 |
ACCELERATOR PEDAL Price: $22.32 |
| 9 |
321-3 |
SCREW-HH Price: $0.28 |
| 10 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 11 |
74-0110 |
Traction Pedal (Incl. Ref. #10) Price: Call Us |
| 12 |
49-6430 |
REVERSE PAD Price: $58.99 |
| 13 |
302-22 |
FITTING-GREASE Price: $1.30 |
| 14 |
59-1610 |
TUBE ZERK Price: $11.65 |
| 15 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 16 |
2411-34 |
JOINT-BALL Price: $29.99 |
| 17 |
3220-1 |
NUT-JAM Price: $0.99 |
| 18 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 20 |
32121-31 |
PIN-SPRING Price: $0.26 |
| 21 |
21-9260 |
COVER-DUST Price: $8.19 |
| 22 |
54-1950 |
BRG SUPT BRKT Price: $43.94 |
| 23 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 24 |
54-1000-01 |
TOWER TOP This part replaces 54-1000. Price: $71.60 |
| 25 |
54-1451 |
CONTROL-CHOKE,THROTTLE Price: $63.22 |
| 26 |
66-0120 |
KNOB Price: $5.53 |
| 27 |
321-2 |
SCREW-HH Price: $2.79 |
| 28 |
32121-10 |
PIN-ROLL Price: $6.99 |
| 29 |
98-1467 |
STEERING WHEEL ASM This part replaces 88-3850. Price: $231.99 |
| 30 |
62-6780 |
STEERING SHAFT Price: $261.37 |
| 31 |
47-1980 |
STRG. SHAFT COVER Price: $27.94 |
| 32 |
92-6278 |
THROTTLE DECAL Price: $50.78 |
| 35 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 36 |
104-2541 |
SWITCH ASM This part replaces 88-9830. Price: $36.70 |
| 37 |
92-6266-01 |
DISCONTINUED This part replaces 92-6266. Price: Call Us |
| 39 |
113050 |
COVER-PTO SWITCH Price: $47.16 |
| 40 |
92-6277 |
SWITCH DECAL Price: $37.83 |
| 41 |
116716 |
Switch-Clutch (Incl. Ref. #5, 18 19) Price: $55.58 |
| 42 |
3290-440 |
WASHER-BELLEVILLE Price: $7.46 |
| 43 |
54-1340-03 |
STEERING LINK This part replaces 54-1340. Price: $36.07 |
| 44 |
54-2640 |
TRACT CONT.CABLE Price: Call Us |
| 45 |
28-3940 |
STRG SHAFT COLLAR Price: $52.89 |
| 46 |
60-9050 |
BRG STEERING SHAFT Price: $51.80 |
| 47 |
54-0880 |
TUNNEL DECAL Price: Call Us |
| 48 |
32128-20 |
NUT-HF Price: $0.99 |
| 49 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 50 |
54-1440 |
TUNNEL BRKT Price: $10.92 |
| 51 |
60-9140-01 |
FOOTREST FRAME This part replaces 60-9140. Price: $376.06 |
| 52 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 53 |
54-2630 |
STEER.SHAFT FOLLOWER Price: $53.80 |
| 54 |
54-2040 |
Follower Lever Price: Call Us |
| 55 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 56 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 57 |
251-304 |
BALL JOINT LH Price: $51.06 |
| 58 |
324-7 |
SCREW-HH Price: $1.79 |
| 59 |
32121-77 |
PIN-ROLL Price: $1.29 |
| 60 |
32115-5 |
NUT-RETAINED Price: $4.30 |
| 61 |
321-4 |
SCREW-HH Price: $0.99 |
| 62 |
54-2260 |
FOOT REST PAD LH Price: Call Us |
| 63 |
54-1470-01 |
LH FOOTREST This part replaces 54-1470. Price: $85.13 |
| 64 |
54-1770 |
TRACT CABLE BRKT Price: Call Us |
| 65 |
59-1550 |
PEDAL.SHAFT WA Price: $55.26 |
| 66 |
60-9150-01 |
TUNNEL This part replaces 60-9150. Price: $432.16 |
| 67 |
322-10 |
SCREW-HH Price: $0.70 |
| 68 |
54-2270 |
FOOT REST PAD RH Price: $23.93 |
| 69 |
80-4910 |
Footrest-R.H. Price: Call Us |
| 70 |
62-7400 |
DECAL Price: $24.54 |
| 72 |
102950 |
TAB-WASHER Price: $1.63 |
| 73 |
218-498 |
NUT-LOCK This part replaces 105805. Price: $0.68 |
