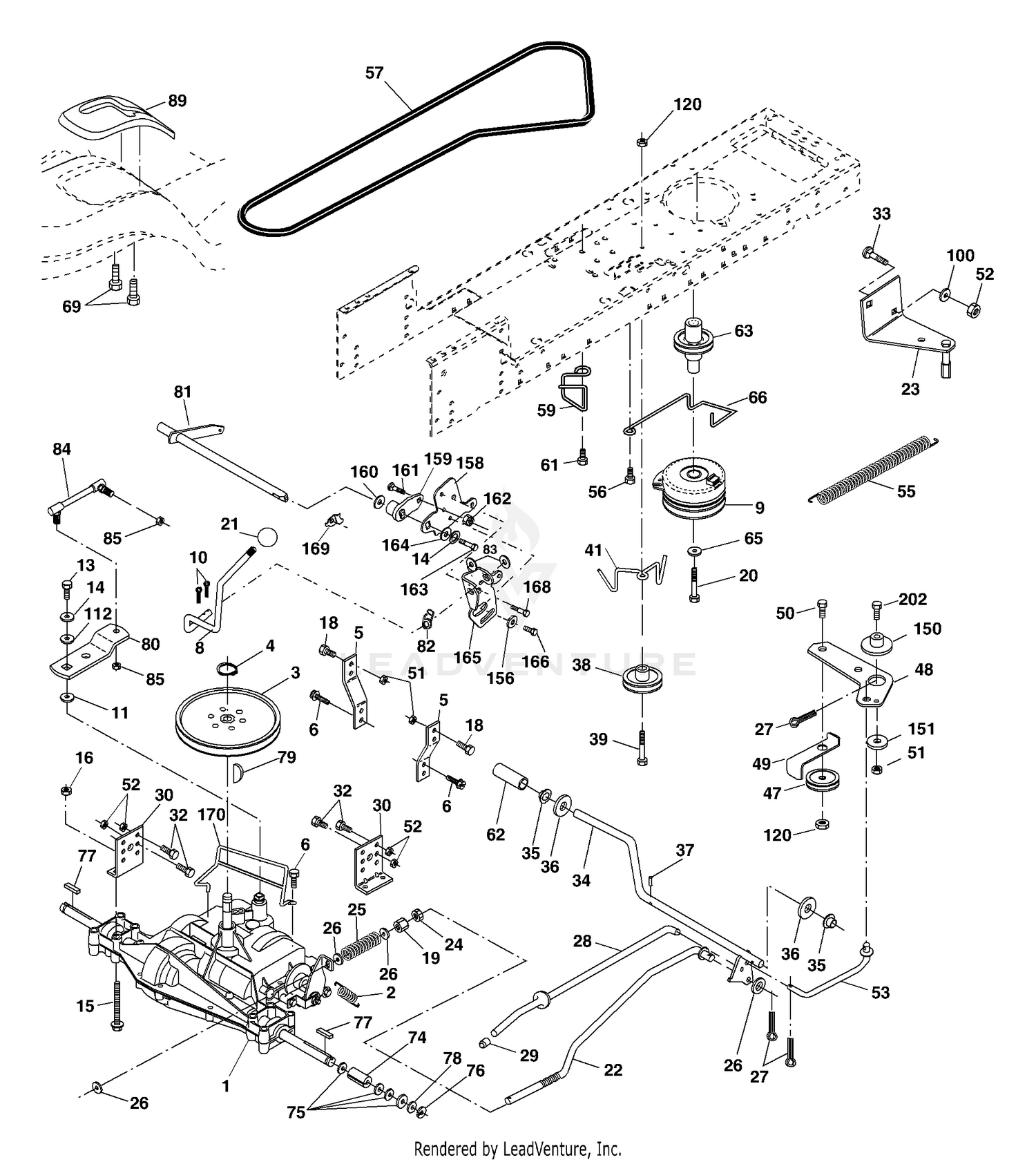

| Ref | Part Number | Description |
|---|
| 1 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 2 |
146682 |
Spring, Return, Brake Price: Call Us |
| 2 |
58-5460 |
VALVE-SELECTOR Price: $479.05 |
| 3 |
123666X |
Pulley, Transaxle Price: Call Us |
| 3 |
340-22 |
FITTING-TEE Price: $90.38 |
| 4 |
115-8017 |
REEL MOTOR KIT This part replaces 93-1412. Price: $1,999.51 |
| 4 |
12000028 |
Ring, Retainer Price: Call Us |
| 5 |
121520X |
Strap, Torque Price: Call Us |
| 5 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 6 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 7 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 8 |
165866 |
Rod Shifter Fender STLT Price: Call Us |
| 8 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 9 |
160889 |
Clutch Price: Call Us |
| 9 |
33014-00 |
NUT-HEX Price: $0.25 |
| 10 |
48-9530 |
NUT Price: $1.78 |
| 10 |
76020416 |
Pin, Cotter Price: Call Us |
| 11 |
105701X |
Washer, Shift Plate Price: Call Us |
| 11 |
323-6 |
SCREW-HH Price: $0.66 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 13 |
74550412 |
Bolt 1/4-28 UNF W/Patch Gr. 8 Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical Price: Call Us |
| 14 |
340-93 |
TEE-ADAPTER Price: $57.05 |
| 15 |
105-9271-01 |
BRACKET-BUMPER Price: $84.53 |
| 15 |
74490544 |
Bolt Hex FLGHD 5/16-18 Gr. 5 Price: Call Us |
| 16 |
48-3280 |
STOP-BUMP Price: $35.14 |
| 16 |
73800500 |
Nut Lock Hx W/Ins 5/16-18 unc Price: Call Us |
| 17 |
60-0090 |
PIN-PIVOT Price: $93.25 |
| 18 |
60-0190 |
STRIP Price: $36.98 |
| 18 |
7478616 |
Bolt Fin Hex 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 19 |
33114-016 |
SCREW-HH Price: $0.27 |
| 19 |
73350600 |
Nut Price: Call Us |
| 20 |
150280 |
Bolt 7/16-20 x 4-1/4 Gr. 5 Price: Call Us |
| 20 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 21 |
106933X |
Knob Price: Call Us |
| 21 |
60-0100 |
PIN-PIVOT Price: $94.46 |
| 22 |
130804 |
Rod, Brake Price: Call Us |
| 23 |
171258 |
Bracket Anti-Rotation Price: Call Us |
| 23 |
68-6480 |
BUSHING-FLANGE Price: $3.19 |
| 24 |
115-8048-01 |
NO. 4 LIFT ARM ASM This part replaces 92-9296-01. Price: $986.93 |
| 24 |
73800600 |
Nut Price: Call Us |
| 25 |
106888X |
Spring, Brake Rod Price: Call Us |
| 25 |
325-34 |
SCREW-HH Price: $2.37 |
| 26 |
19131316 |
Washer Price: Call Us |
| 26 |
58-4380 |
PIN Price: $25.11 |
| 27 |
60-1280 |
PIN Price: $3.53 |
| 27 |
76020412 |
Pin Price: Call Us |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 28 |
60-1350 |
ROD-PUSH Price: $87.82 |
| 29 |
60-1640 |
STRIP Price: $26.76 |
| 29 |
71673 |
Cap, Parking Brake Price: Call Us |
| 30 |
169592 |
Bracket, Transaxle Price: Call Us |
| 30 |
324-6 |
SCREW-HH Price: $0.81 |
| 31 |
115-8049-01 |
NO. 5 LIFT ARM ASM This part replaces 92-9297-01. Price: $924.15 |
| 32 |
74760512 |
Bolt Price: Call Us |
| 33 |
323-14 |
SCREW-HH Price: $1.34 |
| 33 |
72140506 |
Bolt Rdhd Sqnk 5/16-18 unc x 3/4 Price: Call Us |
| 34 |
115-8011 |
CYLINDER-HYD This part replaces 104-5225. Price: $784.12 |
| 34 |
175578 |
Shaft Assembly, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 35 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Roll Pin Price: Call Us |
| 37 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 38 |
179114 |
Pulley, Composite, Flat Price: Call Us |
| 39 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 39 |
72110622 |
Bolt Rdhd 3/8-16 unc x 2-3/4 Price: Call Us |
| 40 |
58-2720 |
PIN Price: $49.81 |
| 41 |
115-8045-01 |
NO. 1 LIFT ARM ASM This part replaces 92-9289-01. Price: $977.54 |
| 41 |
175556 |
Keeper, Belt, Idler Price: Call Us |
| 42 |
58-9210 |
CAM Price: $92.20 |
| 43 |
60-0080 |
BUSHING Price: $14.79 |
| 44 |
53-5940 |
SCREW Price: $2.90 |
| 45 |
60-1340 |
ROD-PUSH Price: $85.25 |
| 46 |
58-3570 |
SPRING Price: $16.80 |
| 47 |
117-8981 |
BUSHING-RUBBER This part replaces 59-7140. Price: $13.27 |
| 47 |
127783 |
Pulley, Idler, V-Groove, Plastic Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drv Stl Price: Call Us |
| 48 |
58-9630 |
SLEEVE Price: $123.35 |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 49 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 50 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 50 |
72110612 |
Bolt Price: Call Us |
| 51 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 51 |
73680600 |
Nut Crown Lock 3/8-16 unc Price: Call Us |
| 52 |
73680500 |
Nut Crown Lock 5/16-18 unc Price: Call Us |
| 52 |
93-7331 |
DECAL-WARNING Price: $10.35 |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 53 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 54 |
3217-6 |
NUT-HEX Price: $1.19 |
| 55 |
105709X |
Spring, Clutch Return Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 56 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 57 |
130801 |
V-Belt, Ground Drive Price: Call Us |
| 57 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 59 |
169691 |
Keeper, Belt, Center Span Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
123533X |
Cover, Pedal Price: Call Us |
| 63 |
175414 |
Pulley, Engine Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper, Belt, Engine, Fool Proof Price: Call Us |
| 69 |
142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 unc Price: Call Us |
| 74 |
137057 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
E-Ring Price: Call Us |
| 77 |
123583X |
Key, Square 2.0 x .1845/1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 79 |
2228M |
Key Woodruff Price: Call Us |
| 80 |
145090 |
Arm, Shift Price: Call Us |
| 81 |
165593 |
Shaft Asm Cross Tapered 20 Price: Call Us |
| 82 |
165711 |
Spring, Torsion Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
166231 |
Link Transaxle Price: Call Us |
| 85 |
150360 |
Nut, Nylock Price: Call Us |
| 89 |
188310X428 |
Console, Shift, STLT Price: Call Us |
| 96 |
4497H |
Retainer Spring 1 Price: Call Us |
| 100 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 113 |
127285X |
Strap Torque 90 Degrees Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg. 3/8-16 unc Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Ga. Price: Call Us |
| 156 |
166002 |
Washer Srrted 5/16 ID x 1.125 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20Unc x 1 Gr. 5 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16-18 x 5/8 TT Yellow Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastening Lt Price: Call Us |
| 170 |
187414 |
Keeper Belt Transaxle Gear Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In 5/8 ID Price: Call Us |
| 198 |
169593 |
Washer Nyliner 7/8 ID x .105 Hd Price: Call Us |
