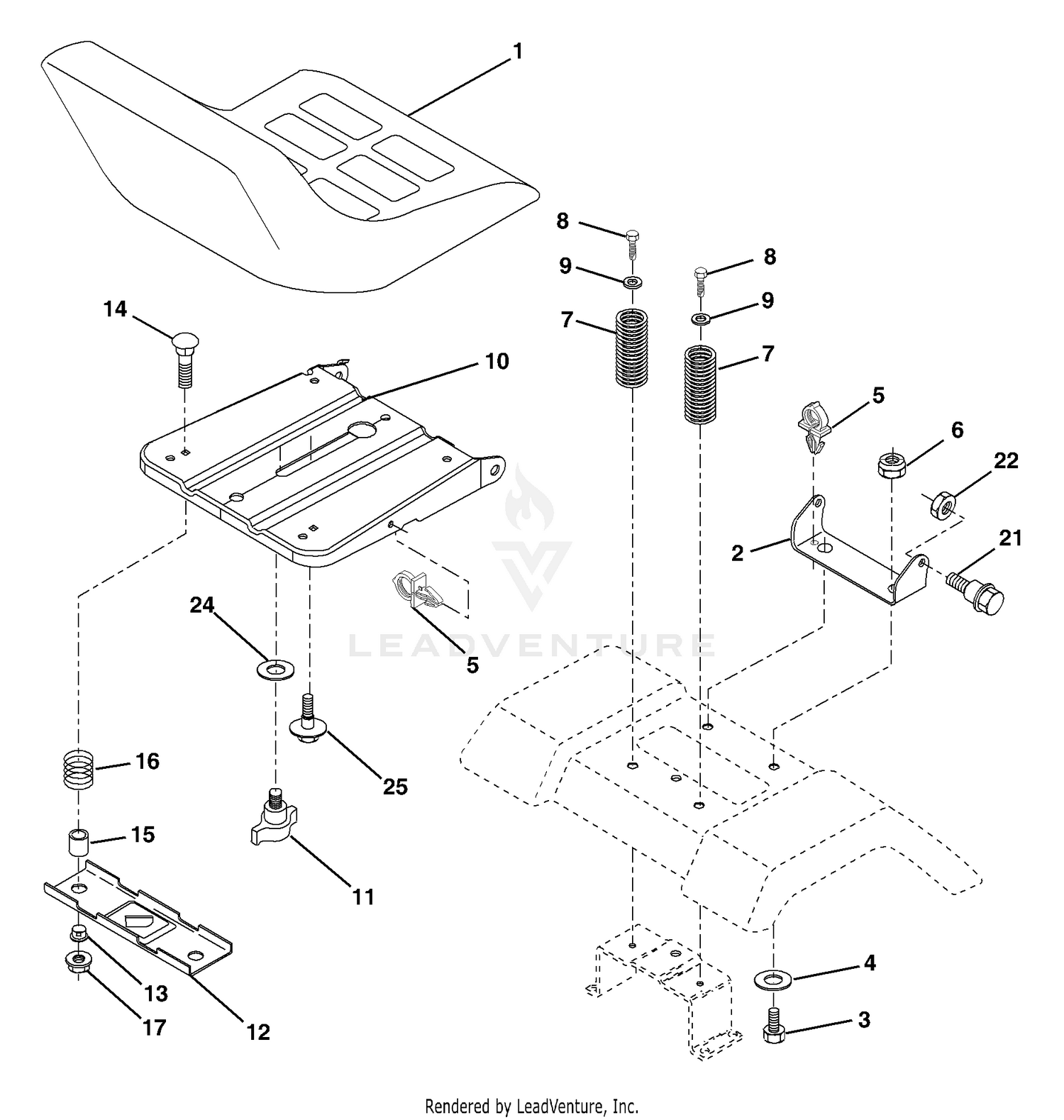

| Ref | Part Number | Description |
|---|
| 1 |
188712 |
Seat Price: Call Us |
| 1 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 2 |
140551 |
Bracket Pivot Seat Price: Call Us |
| 2 |
93-2279 |
CLAMP-CABLE Price: $7.12 |
| 3 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16 Unc x 1 Price: Call Us |
| 4 |
19131610 |
Washer 13/32 x 3/4 x 10 Ga Price: Call Us |
| 4 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 5 |
145006 |
Clip Push In Hinged Price: Call Us |
| 5 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 6 |
3273-26 |
SCREW-HSH Price: $0.41 |
| 6 |
73800600 |
Nut Hex Lock w/Ins 3/8-16 Unc Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
94-9611 |
HANDLE Price: $151.08 |
| 8 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 8 |
256-311 |
BUSHING-SPLIT Price: $13.37 |
| 9 |
112-0278 |
SWITCH-REED This part replaces 93-2055. Price: $55.79 |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga Price: Call Us |
| 10 |
120-5341 |
KIT-SERVICE, ACTUATOR This part replaces 93-2056. Price: $43.38 |
| 10 |
182493 |
Pan Seat Price: Call Us |
| 11 |
166369 |
Knob Seat Adj Wingnut Price: Call Us |
| 11 |
94-1378 |
TUBE-PIVOT, HANDLE Price: $9.66 |
| 12 |
121246X |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
33115-040 |
SCREW-HH Price: $1.22 |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 13 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
134300 |
Spacer Split 28 x 96 Zinc Price: Call Us |
| 15 |
94-6398 |
BRACKET-TRACTION Price: $31.52 |
| 16 |
121250X |
Spring Cprsn 1 27 Blk Pnt Price: Call Us |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr 5 Zinc Price: Call Us |
| 17 |
75-5470 |
SPACER-BEARING Price: $3.06 |
| 19 |
251-259 |
BEARING-BALL Price: $13.67 |
| 20 |
94-9617 |
PIN-SPRING Price: $9.91 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc-2A Price: Call Us |
| 21 |
233-42 |
KNOB Price: $12.88 |
| 22 |
120-3198 |
ROLLER-PIVOT This part replaces 94-9614. Price: $9.78 |
| 22 |
73800500 |
Nut Hex Lock w/Ins 5/16-18 Price: Call Us |
| 23 |
94-9619 |
BUSHING Price: $17.13 |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x12 Ga. Price: Call Us |
| 24 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 25 |
94-9618 |
SPACER-SPRING Price: $9.85 |
| 26 |
94-9620 |
SPRING-TORSION Price: $20.28 |
