Home / OPE / Riding Products / 653D, Groundsmaster 3240-D Traction Unit, 2009 (SN 290000001-NONE) / Operator Seat Assembly

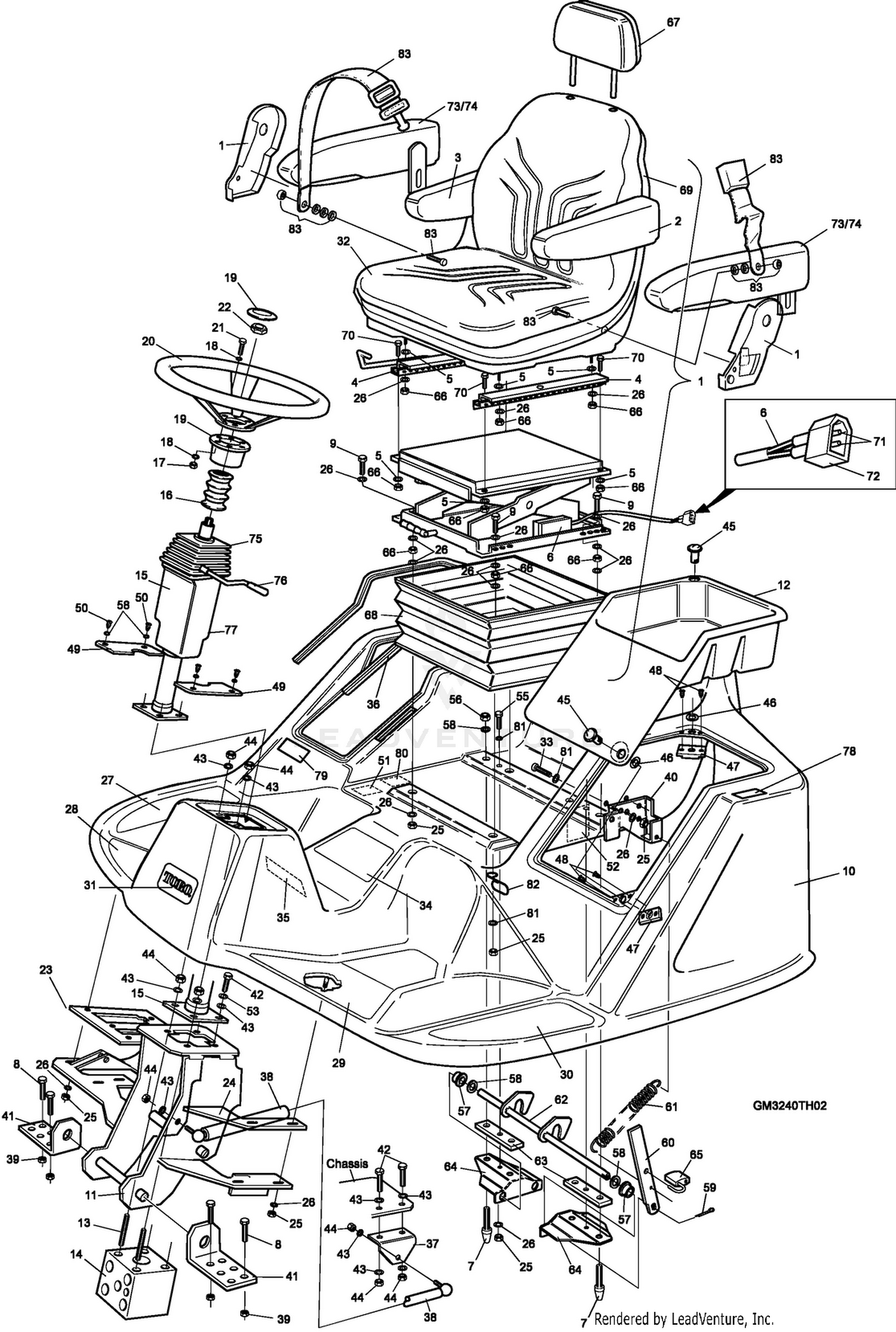

Operator Seat Assembly

Operator Seat Assembly

Parts (80)

RefPart NumberDescription
1 134-0261 SEAT ASM (WITH SEATBELT) This part replaces 953913. Price: $1,179.37
2 953822 SEAT ARMREST BASIC LH Price: $155.40
3 953842 SEAT ARMREST BASIC RH Price: $148.91
4 953821 SEAT ADJUSTER RAILS LH/RH Price: $181.98
5 09270 WASHER PLAIN 5/16 X 1 X 16G Price: $1.39
6 111-0410 OPERATOR PRESENCE SEAT SWITCH Price: $192.98
7 924186 BOLT PLATFORM LOCATING Price: $28.03
8 63-11-018 HEX HED. SCREW (DURLOCK)M10*20 Price: $7.62
9 09370 SETSCREW M8 X 50 Price: $1.40
10 111-0009 OPERATOR PLATFORM - RM4240 ## Price: $2,307.23
11 953025W STEERING COLUMN SUPPORT W/A Price: $715.20
12 HY910948 TOOL TRAY Price: $68.78
13 924142 Stud - M10 x 60 Price: $6.84
14 111-1835-03 STEERING UNIT Price: $1,030.38
15 953800 STEERING COLUMN ADJUSTABLE Price: $932.61
16 MU41223 BELLOWS SEAT POST (9 RINGS) (HB) Price: $5.16
17 09430 NUT M5 NYL INS T TYPE Price: $1.25
18 09470 WASHER M5 X 10 X 1 ZN & PASS Price: $1.25
19 953807 SEE TOPFIL LIST Price: Call Us
20 70-07-152 WHEEL - STEERING Price: $98.89
21 ZDH1E020U HEX HD SET SCREW M5*20 Price: $1.31
23 953883 RUBBER CONTROL PEDAL MOUNT Price: $12.26
24 910942 RUBBER DIFF LOCK PEDAL Price: $3.12
25 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
26 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
27 924903 Floor Mat - Outer R.H. Price: $5.71
28 953866 PLATFORM MAT RH Price: $33.96
29 924900 FLOORMAT FOOTWELL LH Price: $35.40
30 924902 Floor mat - Outer L.H. Price: $5.71
31 67-1300 DECAL Price: $29.99
32 111-0515 SEAT CUSHION Price: $346.19
33 ZHS1H025U SCREW SOC HD BUTTON M8*25 Price: $1.38
34 953876 DECAL DIFF LOCK/CONTROL PEDAL Price: $50.27
35 111-0955 DECAL - WARNING INCLINES Price: $30.39
36 70-07-070 PROTECTION STRIP-BLACK Price: $11.33
37 924428W BRACKET GAS STRING Price: $26.47
38 924810 Gas Strut Price: $145.20
39 63-11-015 FLANGED NUT(12.9)M10 Price: $2.54
40 924185W BRACKET HANDLE STOP Price: $84.14
41 910449W PLATE PLATFORM PIVOT Price: $28.42
42 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
43 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
44 09447 NUT M10 X 1.5 NYL INS Price: $1.40
45 134-0423 STUD FASTENER This part replaces 910849. Price: $10.38
46 134-0424 Washer - Star 9mm This part replaces 74-07-025. Price: $0.92
47 74-07-026 FASTENER RECEPTACLE Price: $2.65
48 09752 RIVET POP Price: $1.42
49 924197W SHEET STEERING COLUMN Price: $24.67
50 09634 SCREW Price: $1.31
51 924828 Decal - Prevent Damage Price: $6.72
52 924868 DECAL WARNING PLATFORM LATCH Price: $12.53
53 09480 WASHER M10 SC SPRING Price: $1.36
54 924905 INSERT ROUND DIA 55 Price: $5.13
55 09654 BOLT M8 X 45 HX.HD GR.8.8 Z/P Price: $1.40
56 09456 NUT M16 X 2 NYL INS P TYPE This part replaces ZNN1P000U. Price: $1.40
57 924192 BUSH Price: $6.47
58 09491 WASHER M16 PLAIN Price: $1.42
59 74-11-002 SPLIT PIN 4DIA X 25 Price: $1.42
60 924183W PLATE LATCH HANDLE Price: $35.13
61 924191 SPRING TENSION Price: $22.25
62 924180 Bar - Latch Carrier W/A Price: $134.99
63 924190 Pad - Rubber Spacing Price: $41.45
64 924173W BRACKET LATCH PIVOT W/A Price: $85.76
65 924874 PADLOCK 40MM KEYED ALIKE BRASS Price: $33.37
66 ZNH1H000U HEX.NUT M8 This part replaces 09443. Price: $1.40
67 953828 KIT HEAD REST Price: $135.01
68 953820 SEAT GAITER Price: $117.76
69 111-0516 SEAT BACKREST CUSHION Price: $371.54
70 ZCS1H016U SOC.HD. CAP SCREW M8*16 Price: $1.38
72 924620 CONNECTOR PM2 GOTHIC Price: $3.46
73 953826 KIT LONGER ARMRESTS LH/RH Price: $328.50
74 953827 KIT LONGER/WIDER ARMRESTS (PAIR) LH/RH Price: $325.61
75 953909 RUBBER BELLOWS Price: $98.12
76 953901 HANDLE ASSEMBLY Price: $108.89
77 953904 STEERING COVER ADJUSTABLE Price: $81.37
78 994913_3 Decal-Crushing Hazard- Whole Body Price: Call Us
79 994913_4 Decal Noise Price: Call Us
80 922854 DECAL-NOISE Price: $4.42
81 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
82 480123 CABLE GUIDE SPRING Price: $2.18
