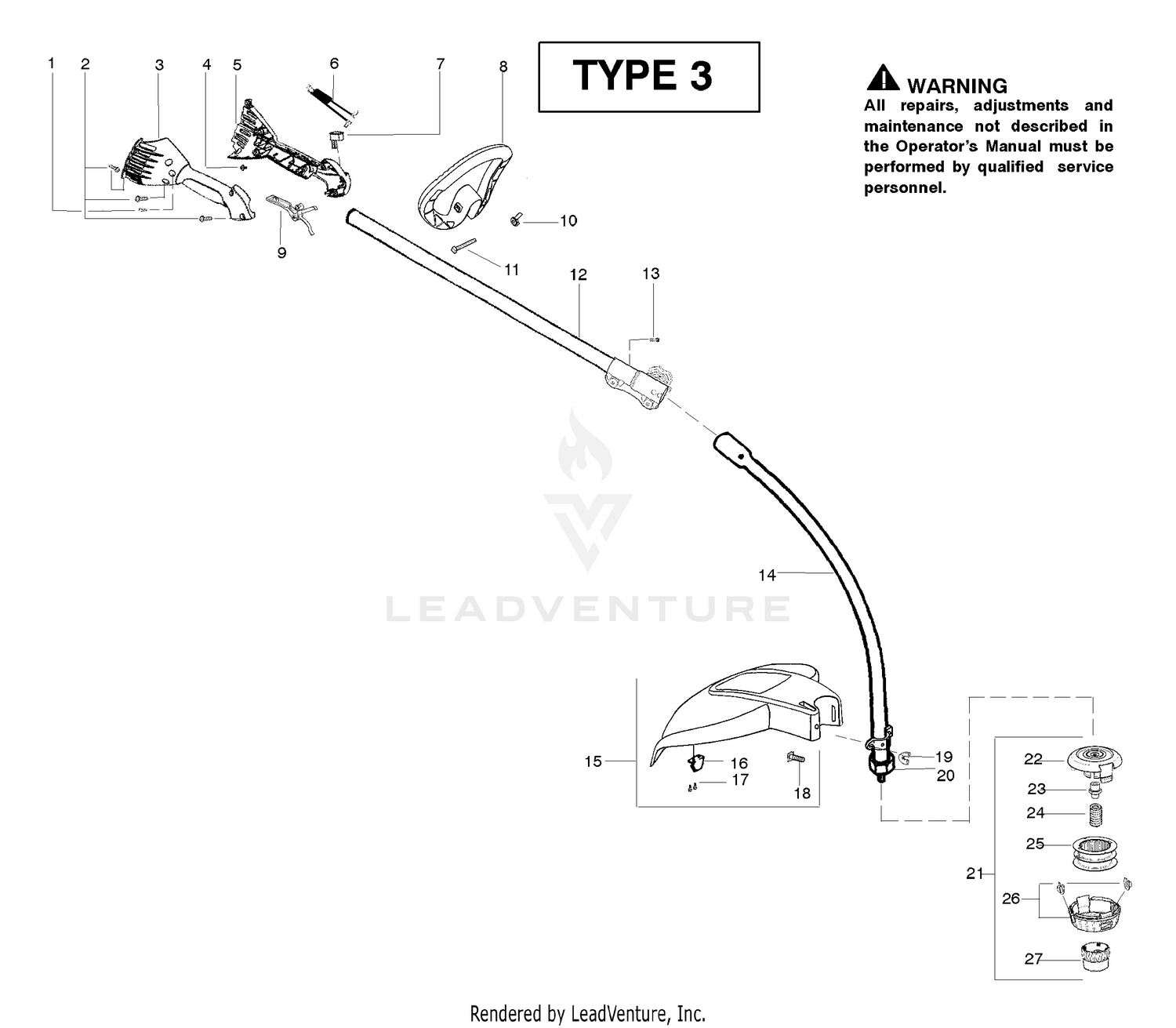

Handle & Shaft Assembly Type 3

Handle & Shaft Assembly Type 3

Parts (26)

RefPart NumberDescription
1 37-4320 DISCONTINUED Price: Call Us
1 530015805 Screw-alignment Price: $1.99
2 28-9650 DISCONTINUED Price: Call Us
2 530015886 Screw Price: $1.99
3 530057983 Hsg.-Throttle right Price: $7.99
4 530016326 Screw-Cable Retention Price: $1.99
5 530057984 Hsg.-Left throttle Price: $6.99
6 530058843 Assy-Wire Price: $5.99
7 530071356 Kit-Switch Price: $4.99
9 545017701 TRIGGER THROTTLE RED This part replaces 530058759. Price: $1.99
10 530091373 Nut This part replaces 530016152. Price: $1.99
11 530015786 Bolt Price: $1.99
13 530016344 Screw Price: $1.99
14 530071788 Kit - Lower Shaft Assy. This part replaces 545024301. Price: $37.99
16 530052286 Limiter-Line Price: $1.54
17 530015814 Screw Price: $1.99
18 530015820 Bolt Price: $1.99
19 530091373 Nut This part replaces 530016152. Price: $1.99
20 530057559 Dustcup Price: $2.99
21 590267601 TNG VII LH/RH .080 This part replaces 952701717. Price: $19.99
22 537419303 Housing Price: $6.99
23 537419901 Adapter Price: $5.99
24 537338801 Spring Price: $2.99
25 952711636 Accy-Wound Spool Price: $7.49
26 545003365 Kit-Cover and Eyelet Price: $8.99
27 537419601 Knob Price: $3.99
