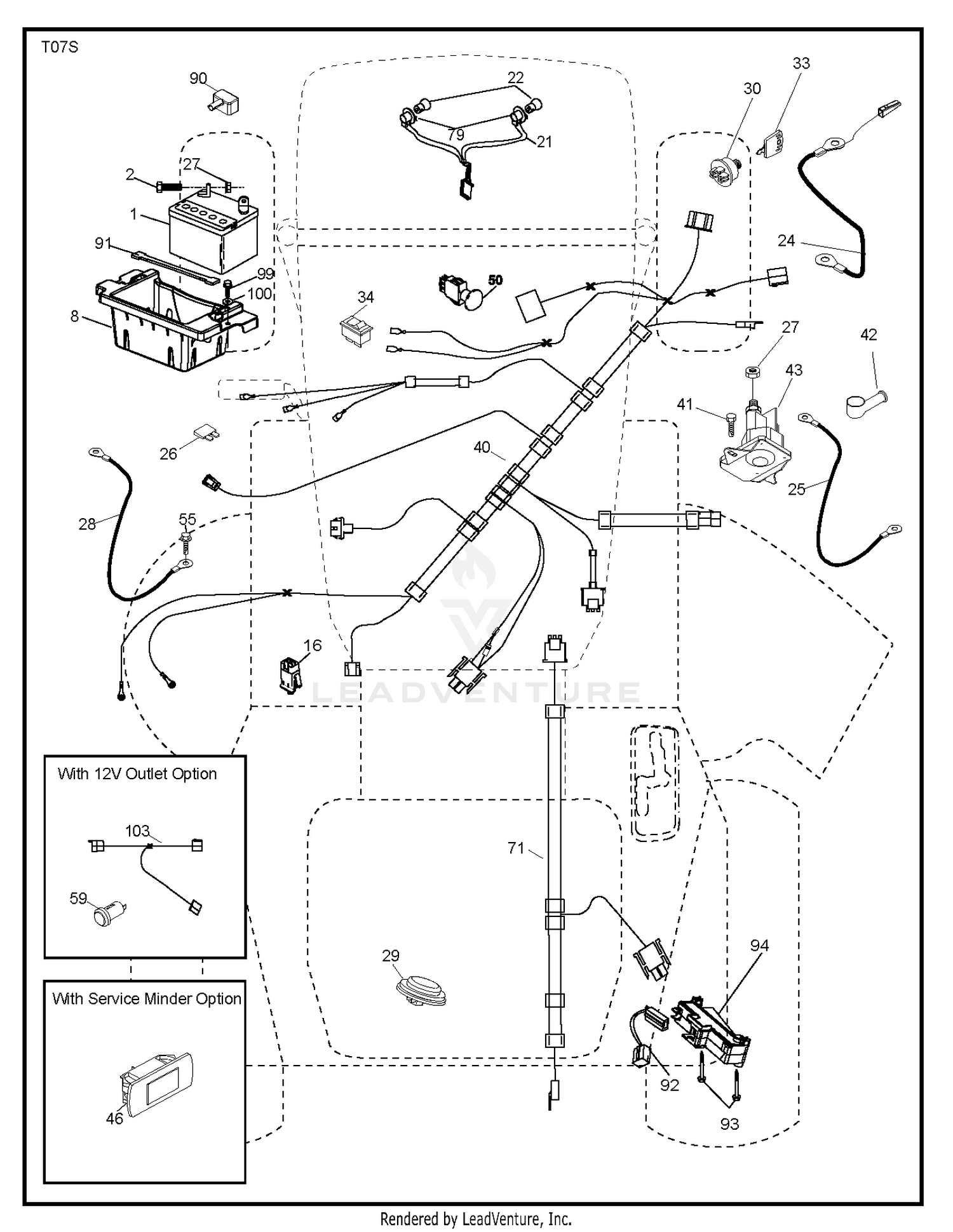

| Ref | Part Number | Description |
|---|
| 1 |
120-4010-03 |
FRAME Price: $4,870.83 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
161-1780 |
BUMPER ASM This part replaces 120-8919-03. Price: $324.35 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
115-0282 |
PROXIMITY SENSOR ASM Price: $155.22 |
| 4 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 5 |
325-5 |
SCREW-HH Price: $1.20 |
| 6 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 7 |
32128-23 |
NUT-HF Price: $1.51 |
| 8 |
105-8278 |
DECAL Price: $9.67 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 10 |
2412-138 |
R-CLAMP Price: $1.36 |
| 11 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
| 12 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 13 |
3230-5 |
BOLT-CAR Price: $0.54 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
121-1508-0P |
BRACKET-BULKHEAD This part replaces 121-1508-03. Price: $24.95 |
| 16 |
323-6 |
SCREW-HH Price: $0.66 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
322-10 |
SCREW-HH Price: $0.70 |
| 18 |
69-9760 |
COVERPLATE Price: $5.38 |
| 19 |
56-7976 |
CLAMP-TUBE Price: $2.44 |
| 20 |
240-2 |
GROMMET-RUBBER Price: $20.20 |
| 21 |
121-1481-0P |
PLATE-MOUNT, LH BULKHEAD This part replaces 121-1481-03. Price: $33.56 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
2412-147 |
CLAMP-R Price: $2.51 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 92 |
532196615 |
HARNESS.PIGTAIL.CONSLE Price: $11.99 |
| 93 |
596039601 |
Bolts This part replaces 532192540. Price: $1.99 |
| 94 |
532191834 |
MODULE.REVERSE.ROS Price: $19.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 103 |
532407962 |
HARNESS PIGTAIL 12V OUTLET Price: $8.99 |
