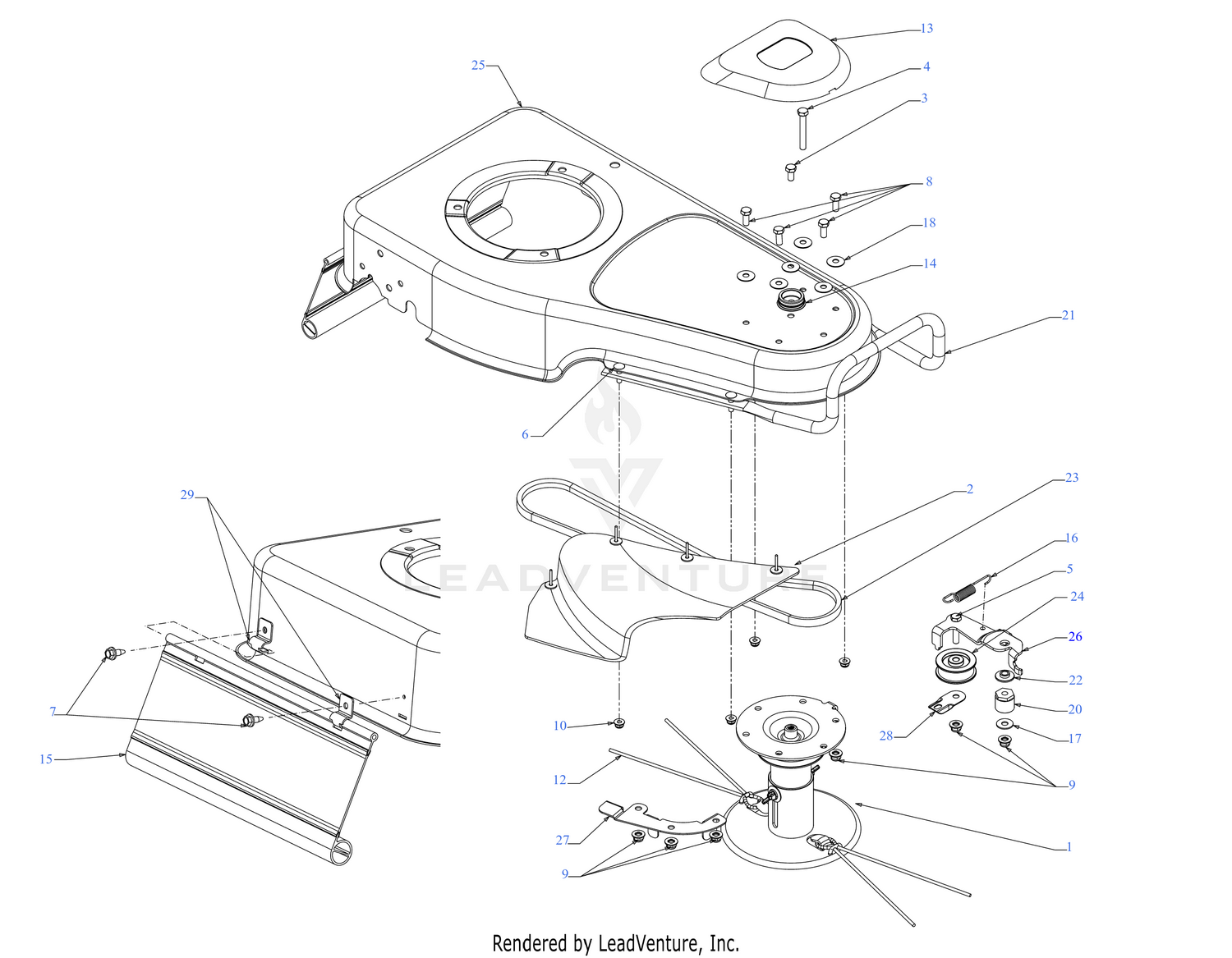

| Ref | Part Number | Description |
|---|
| 1 |
918-07086 |
SPINDLE ASSEMBLY Price: $302.99 |
| 3 |
710-0170 |
HEX SCREW 5/16-24 x .62 Price: $5.72 |
| 4 |
710-0395 |
HEX SCREW 5/16-18 x 2.25 GR5 Price: $4.08 |
| 5 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 6 |
710-0932A |
SCREW 1/4-20 x 1 GR5 Price: $3.66 |
| 7 |
710-1652 |
SCREW 1/4-20X.625 Price: $3.86 |
| 8 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 9 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 10 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 12 |
490-040-M035 |
TRIMMER LINE: 10 P Price: $11.65 |
| 13 |
731-16291 |
COVER TRIM Price: $7.04 |
| 14 |
731-16292 |
COVER TRIM RETAINER Price: $3.13 |
| 15 |
731-2329 |
TRAILSHIELD Price: $23.29 |
| 16 |
732-1022 |
EXTENSION SPRING .500 OD x 3.375 Price: $3.95 |
| 17 |
736-0371 |
FLAT WASHER Price: $3.94 |
| 18 |
736-0425 |
Bell-Wash. .325" I.D. This part replaces 936-0425. Price: $3.95 |
| 20 |
948-0278 |
SPACER Price: $10.29 |
| 22 |
750-1275 |
IDLER SPACER Price: $5.34 |
| 23 |
954-05077 |
V-BELT 4L x 44.6" Price: $30.60 |
| 24 |
756-05108 |
IDLER PULLEY Price: $23.03 |
| 26 |
981-1008A |
IDLER BRACKET Price: $42.82 |
| 27 |
781-1020 |
BELT KEEPER BRACKET Price: $20.35 |
| 28 |
781-1028 |
IDLER BRACKET KEEPER Price: $6.92 |
