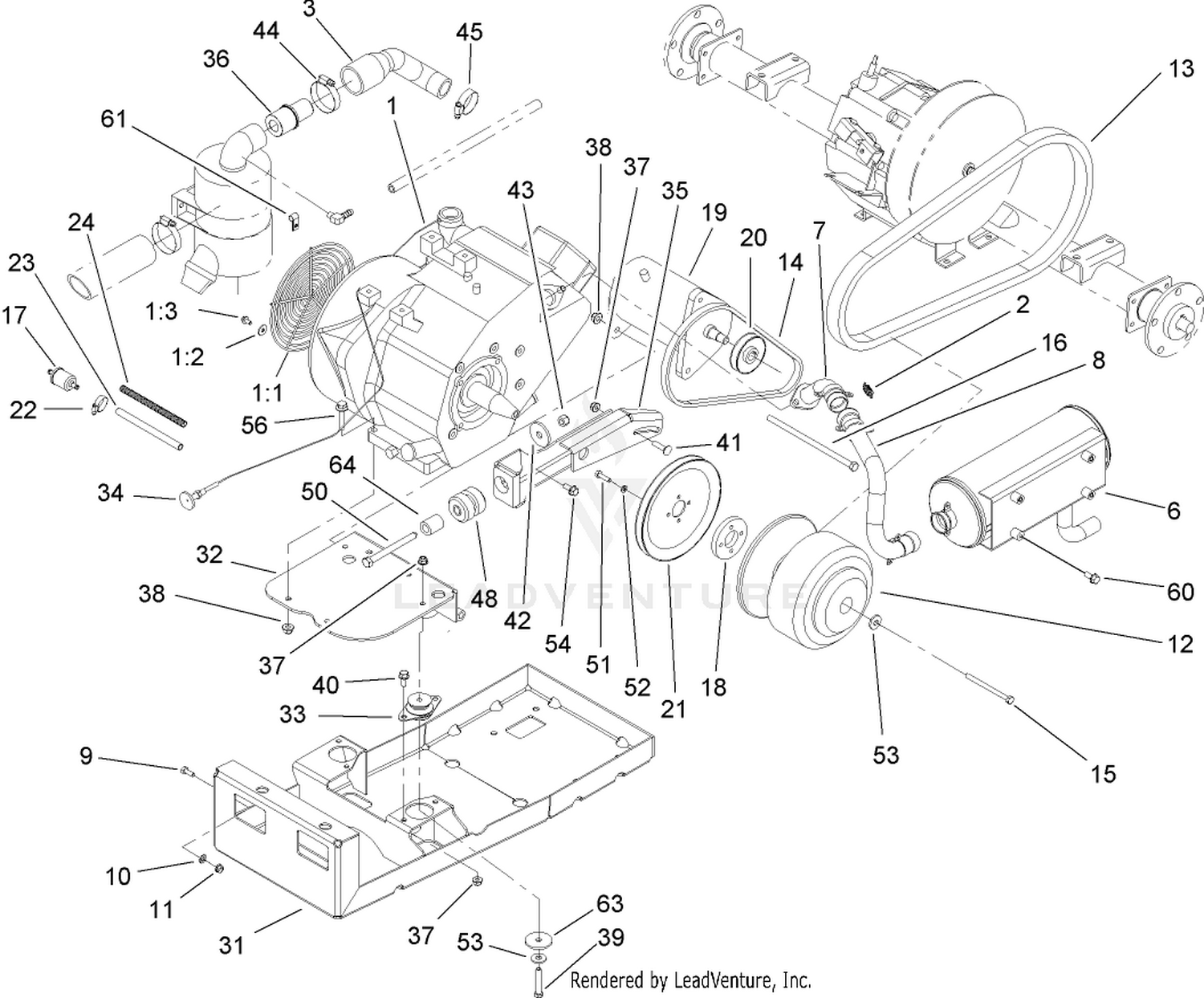

| Ref | Part Number | Description |
|---|
| 1 |
119-0814 |
KIT-SERVICE ENGINE MD WORKMAN GAS This part replaces 104-6565. Price: $1,281.70 |
| 2 |
104-6478 |
SPRING-EXTENSION Price: $13.02 |
| 3 |
104-6495 |
HOSE-INTAKE Price: $48.79 |
| 6 |
104-6510 |
MUFFLER Price: $422.90 |
| 7 |
104-6511 |
MANIFOLD Price: $196.42 |
| 8 |
104-6512 |
COUPLER-EXHAUST Price: $72.71 |
| 9 |
321-4 |
SCREW-HH Price: $0.99 |
| 10 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 11 |
32128-32 |
NUT-HHF Price: $2.69 |
| 12 |
119-7994 |
CLUTCH ASSEMBLY, DRIVE This part replaces 108-7014. Price: $1,058.72 |
| 13 |
99-7143 |
BELT-DRIVE Price: $89.37 |
| 14 |
99-7132 |
V-BELT-STARTER Price: $41.77 |
| 15 |
99-7200 |
SCREW-HH Price: $4.95 |
| 16 |
323-30 |
SCREW-HH Price: $22.99 |
| 17 |
94-2690 |
FILTER-FUEL Price: $4.69 |
| 18 |
99-7064 |
SPACER-STARTER Price: $25.51 |
| 19 |
131-8444 |
STARTER/GENERATOR ASM This part replaces 99-7108. Price: $426.18 |
| 20 |
121-6277 |
PULLEY-DRIVE This part replaces 99-7130. Price: $28.48 |
| 21 |
99-7131 |
PULLEY-ENGINE Price: $103.51 |
| 22 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 23 |
109-0293 |
HOSE-FUEL Price: $6.09 |
| 24 |
99-7377 |
CONDUIT-LINE, FUEL Price: $8.09 |
| 31 |
104-6521-03 |
MOUNT-ENGINE Price: $274.62 |
| 32 |
104-6525-03 |
BASE-ENGINE Price: $132.45 |
| 33 |
104-6562 |
MOUNT-ISO Price: $110.12 |
| 34 |
104-6507 |
CABLE-CHOKE Price: $52.14 |
| 35 |
104-6516-03 |
BRACKET-STARTER Price: $213.25 |
| 36 |
104-6531 |
RESTRICTOR-INTAKE Price: $44.53 |
| 37 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 38 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 39 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 40 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 41 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 42 |
84-1560 |
WASHER-THRUST Price: $2.71 |
| 43 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 44 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 45 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 48 |
87-4970 |
ENGINE MOUNT ASM Price: $101.69 |
| 50 |
104-6561 |
SCREW-HH Price: $99.68 |
| 51 |
321-6 |
SCREW-HH Price: $0.25 |
| 52 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 53 |
5-0838 |
WASHER Price: $1.09 |
| 54 |
104-6560 |
SCREW-HH Price: $3.12 |
| 56 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 60 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 61 |
2412-89 |
CLAMP-R Price: $2.09 |
| 63 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
