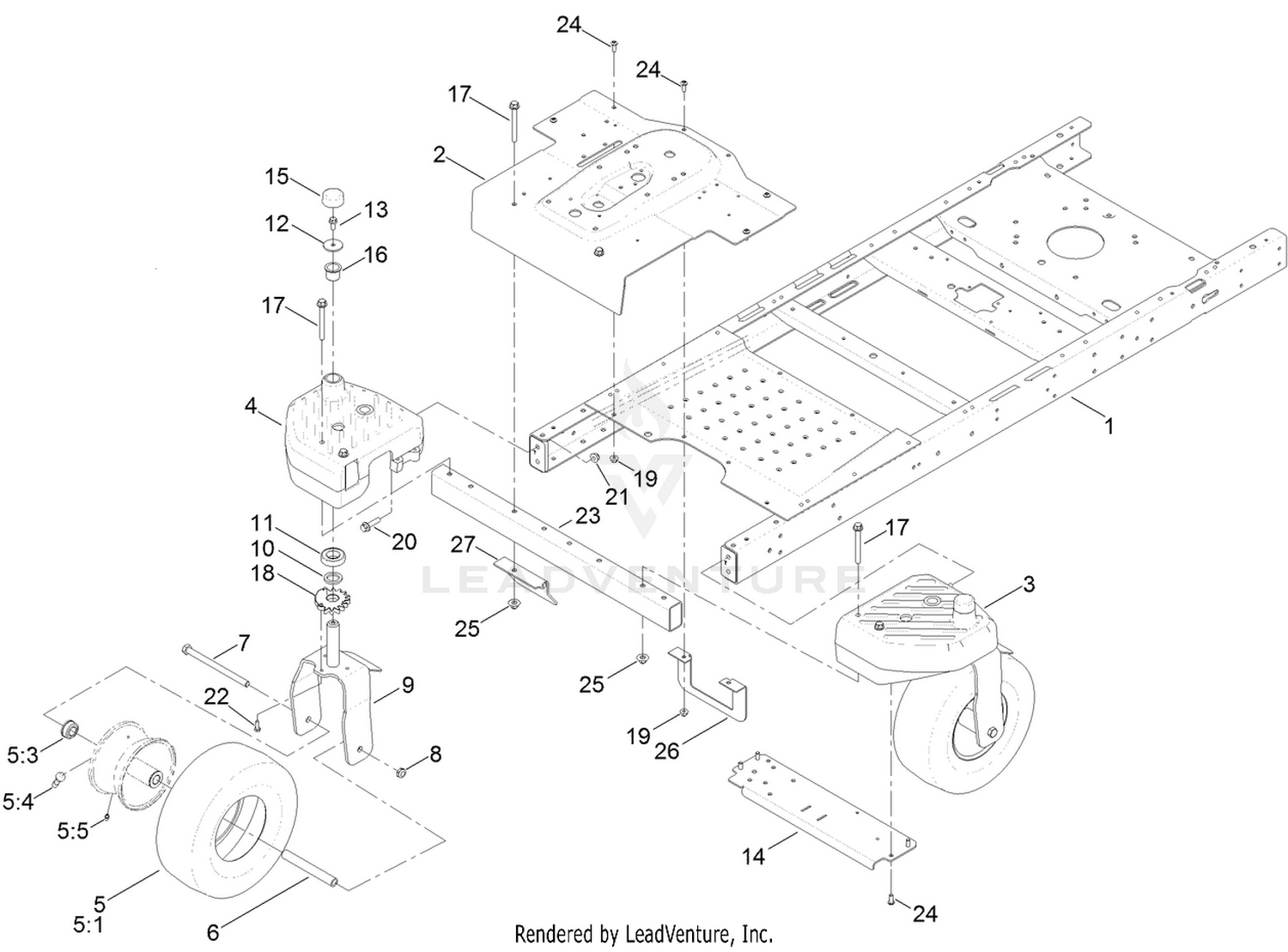

| Ref | Part Number | Description |
|---|
| 1 |
130-0805-01 |
FRAME ASM (WIDE) Price: $306.94 |
| 2 |
130-6930-05 |
PAN-STEER, FRONT (WIDE) Price: $93.40 |
| 3 |
130-0748-05 |
HOUSING-SPINDLE, LH Price: $213.51 |
| 4 |
130-0746-05 |
HOUSING-SPINDLE, RH Price: $213.51 |
| 6 |
119-3475 |
SPANNER Price: $7.46 |
| 7 |
325-37 |
SCREW-HH Price: $2.57 |
| 8 |
3296-45 |
NUT-HEX Price: $3.79 |
| 9 |
130-0670-03 |
CASTER FORK ASM Price: $62.71 |
| 10 |
117-7394 |
WASHER-THRUST Price: $1.70 |
| 11 |
109-3678 |
BEARING-BALL Price: $9.46 |
| 12 |
131-1032 |
WASHER-FLAT Price: $1.41 |
| 13 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 14 |
130-6979-03 |
PLATE-BRIDGE, WIDE Price: $38.69 |
| 15 |
130-7015 |
CAP-CASTER Price: $1.04 |
| 16 |
126-1963 |
BUSHING-PIVOT Price: $6.69 |
| 17 |
115-7660 |
SCREW-HHF Price: $3.53 |
| 18 |
130-0689 |
GEAR-WHEEL, 15 TOOTH Price: $16.68 |
| 19 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 20 |
114-4681 |
SCREW-HHF Price: $0.89 |
| 21 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 22 |
321-4 |
SCREW-HH Price: $0.99 |
| 23 |
130-0829-03 |
TUBE-FRONT, WIDE Price: $57.36 |
| 24 |
131-4080 |
SCREW-HSBH Price: $0.39 |
| 25 |
109-6658 |
NUT-FLANGE, NI Price: $0.89 |
| 26 |
131-8739-01 |
BRACKET-UPSTOP, LONG Price: $15.40 |
